Specifications DFSK 580

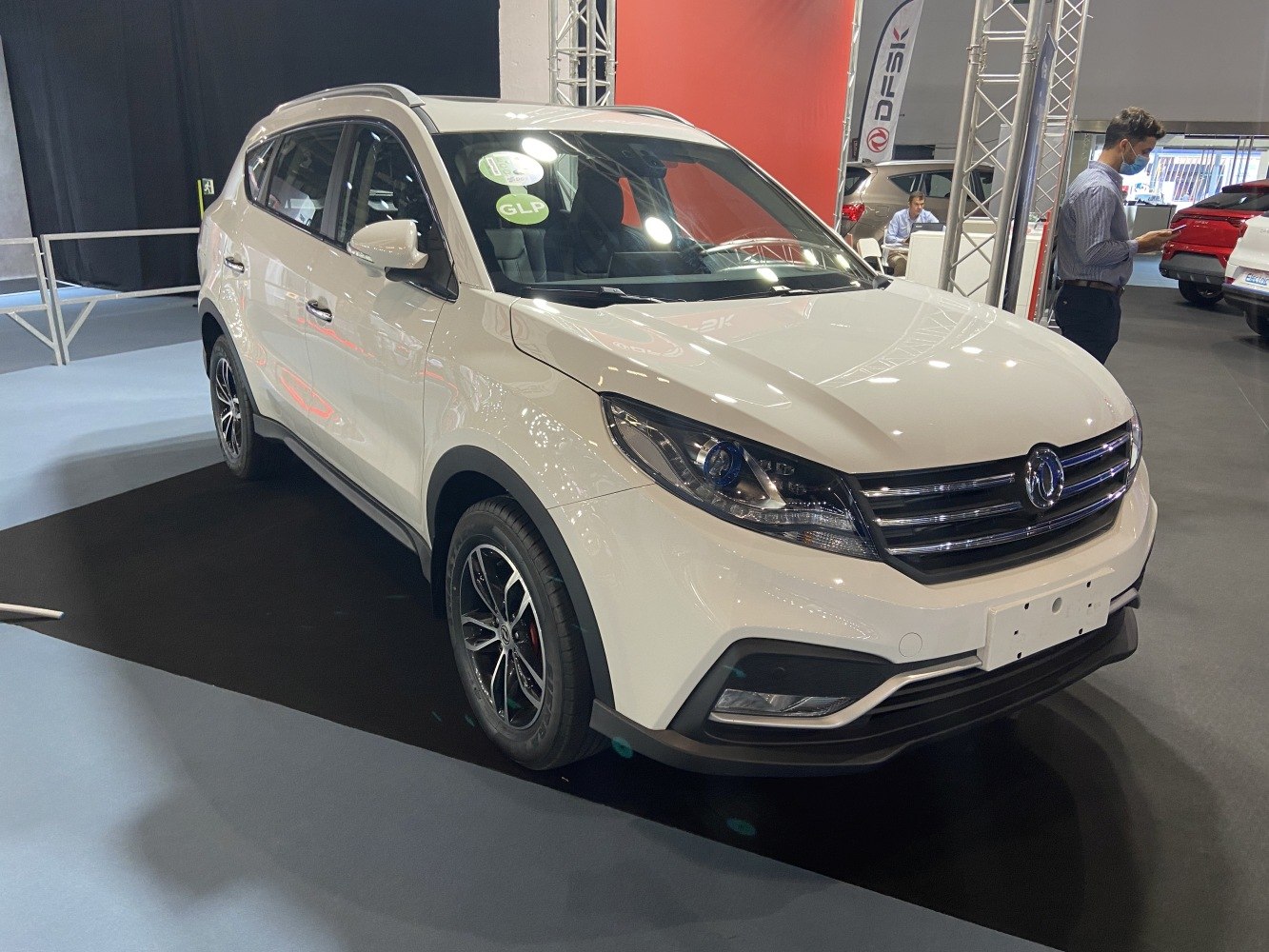

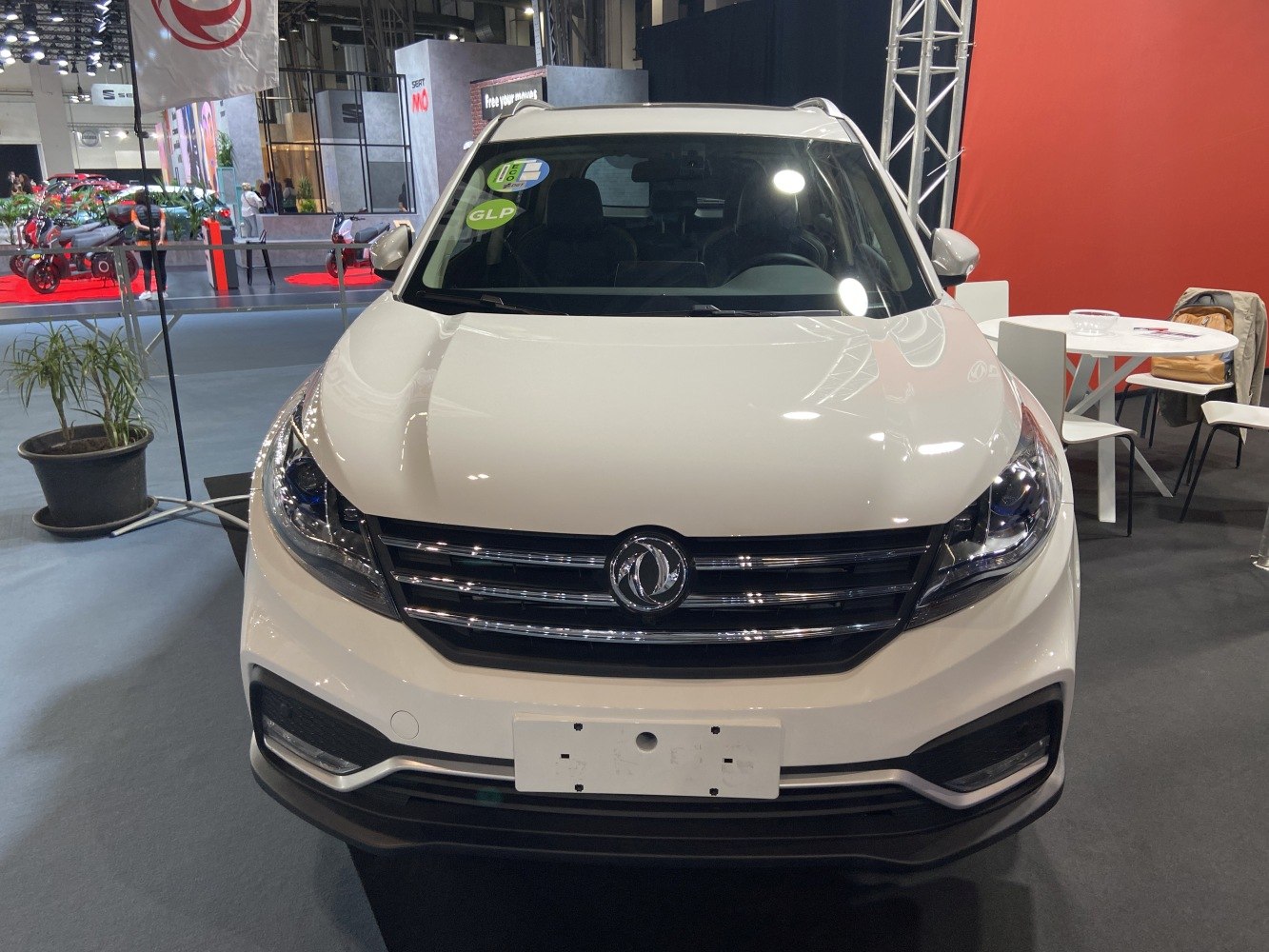

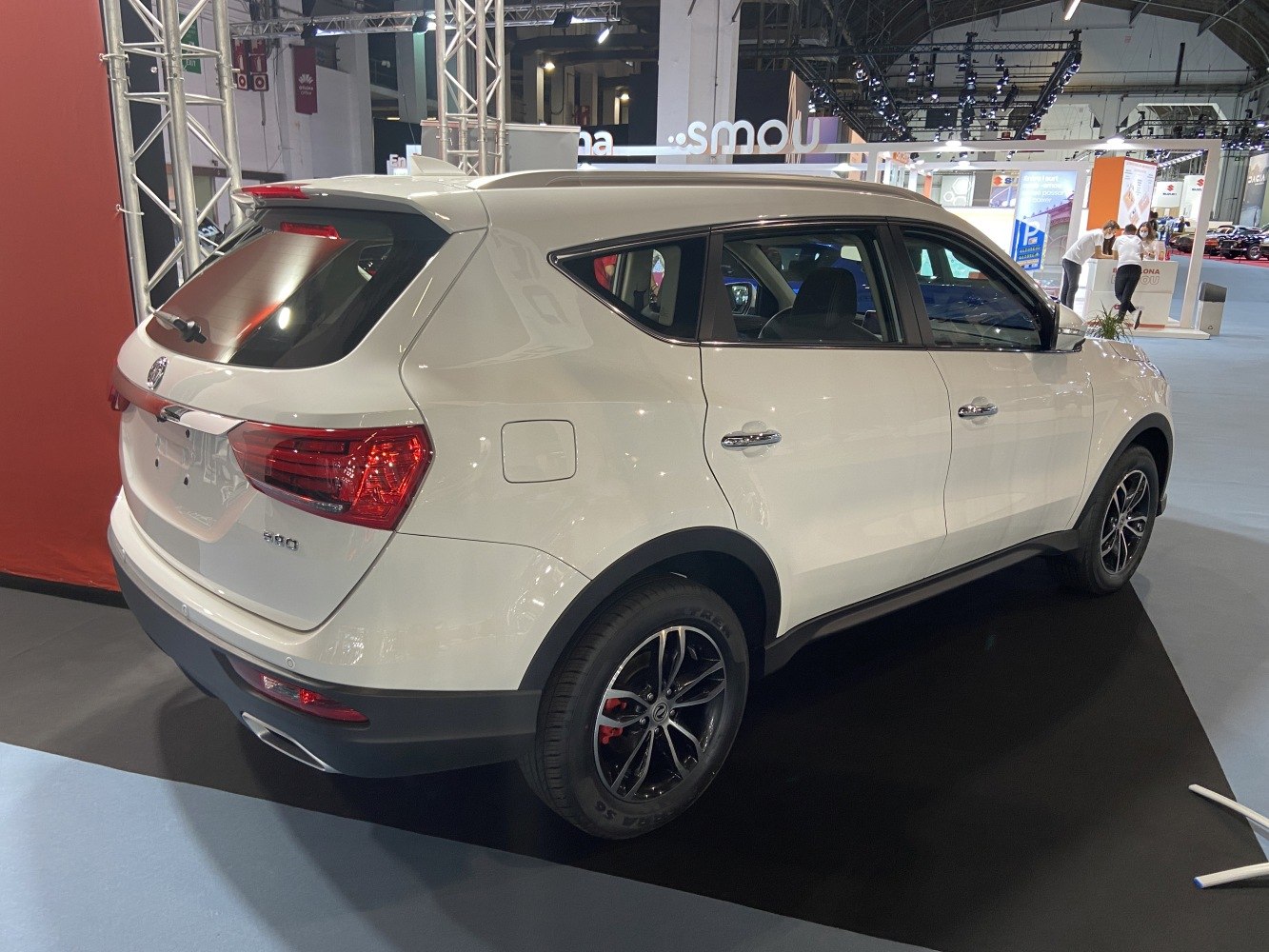

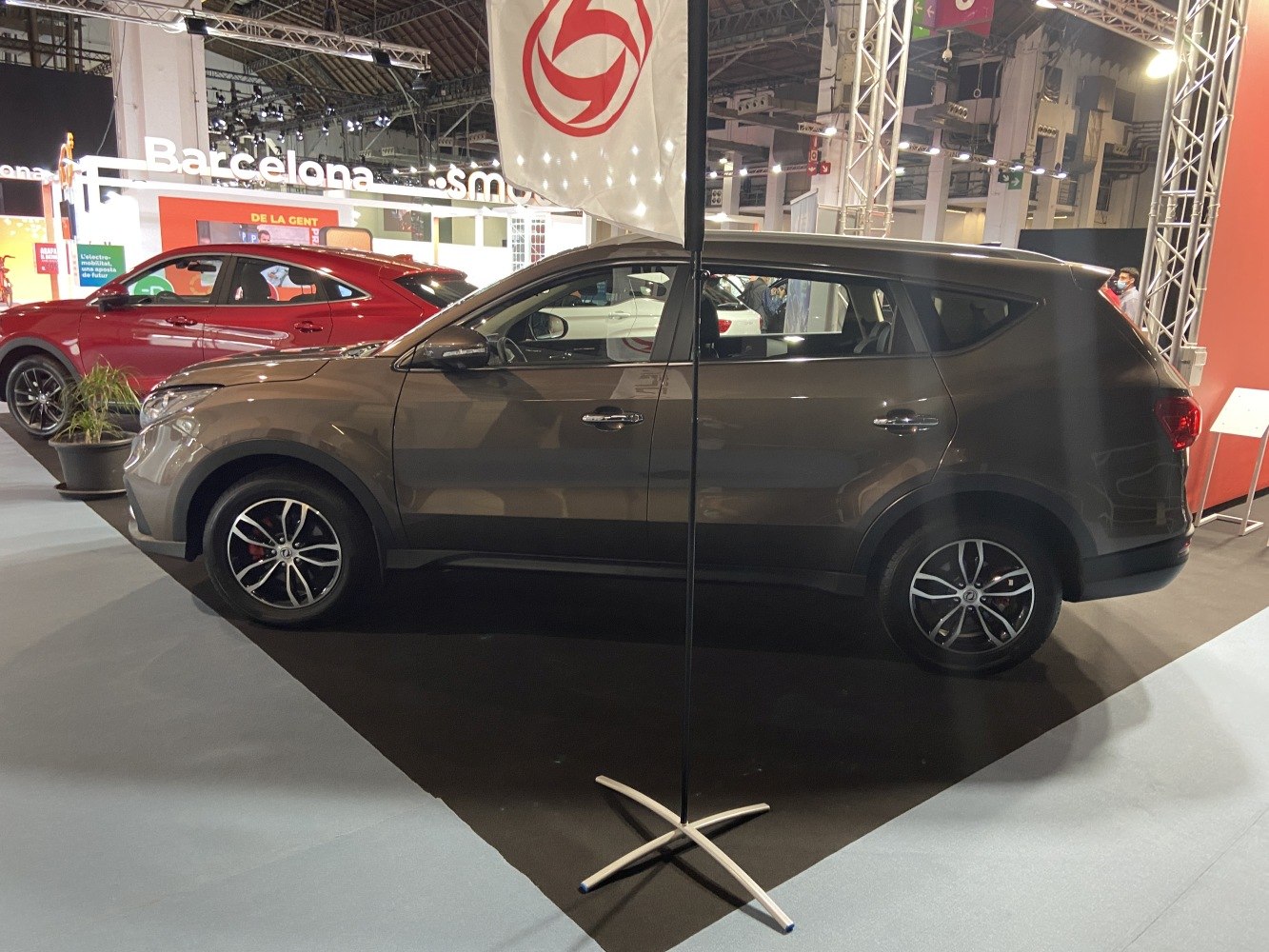

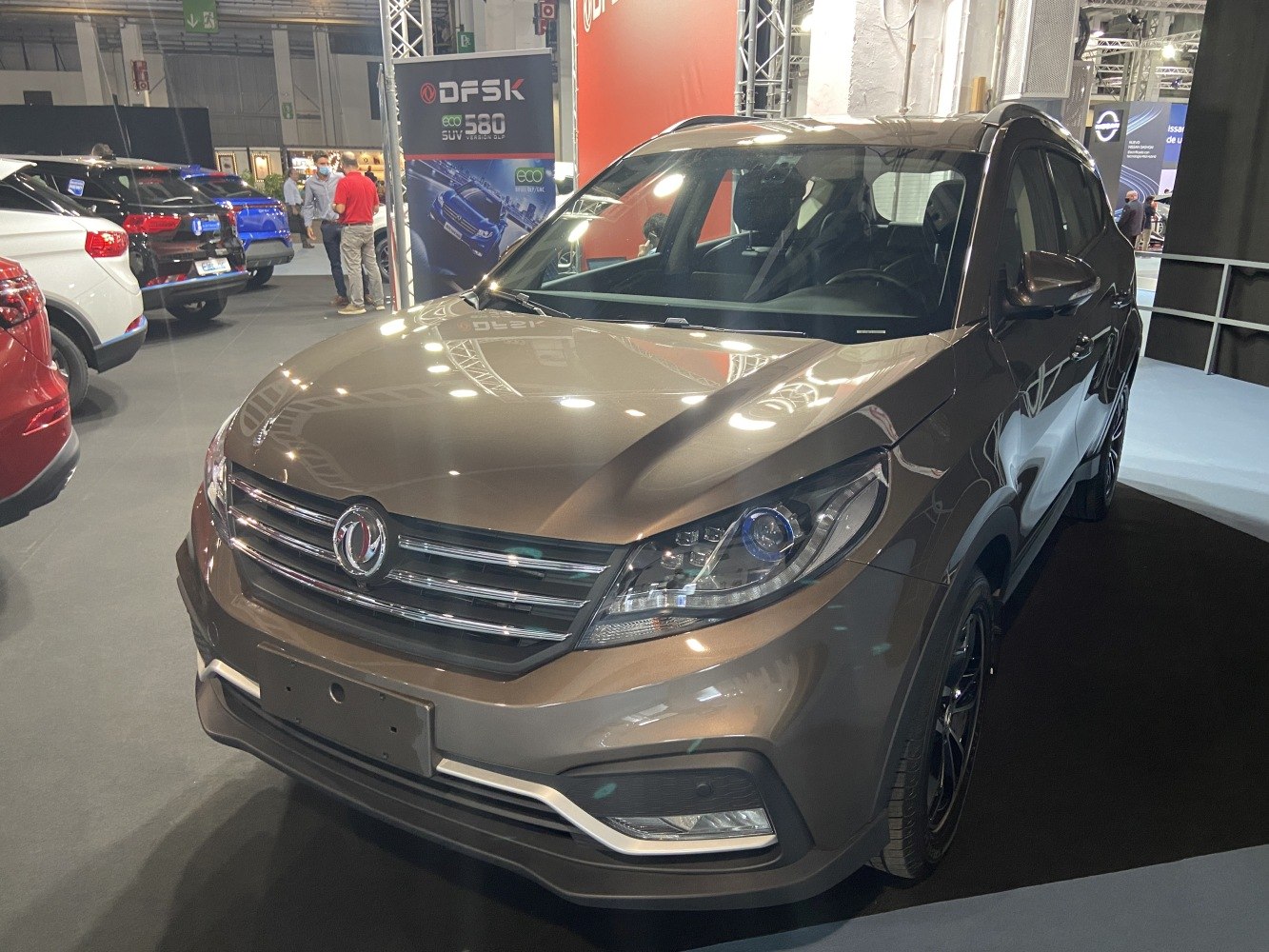

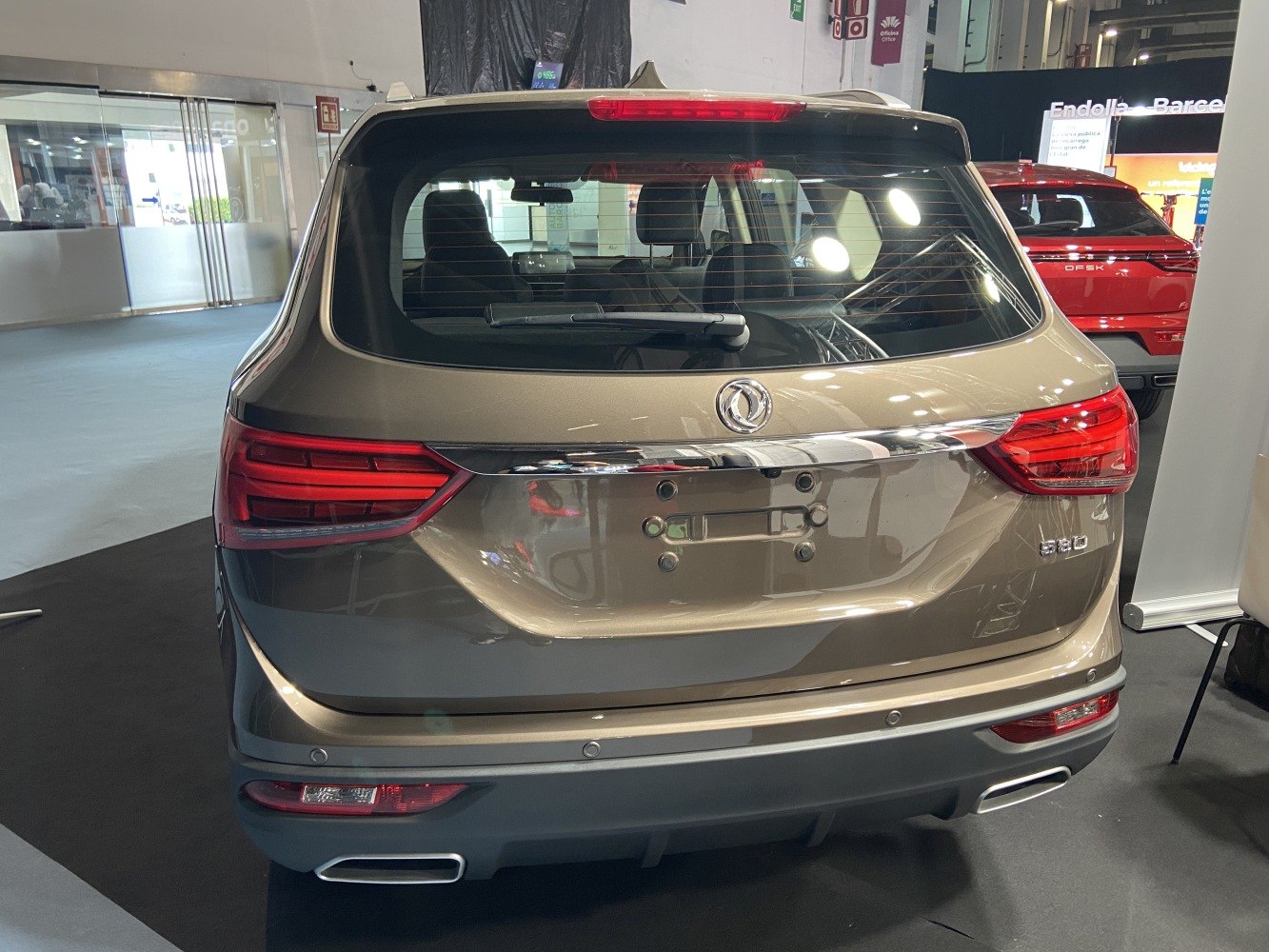

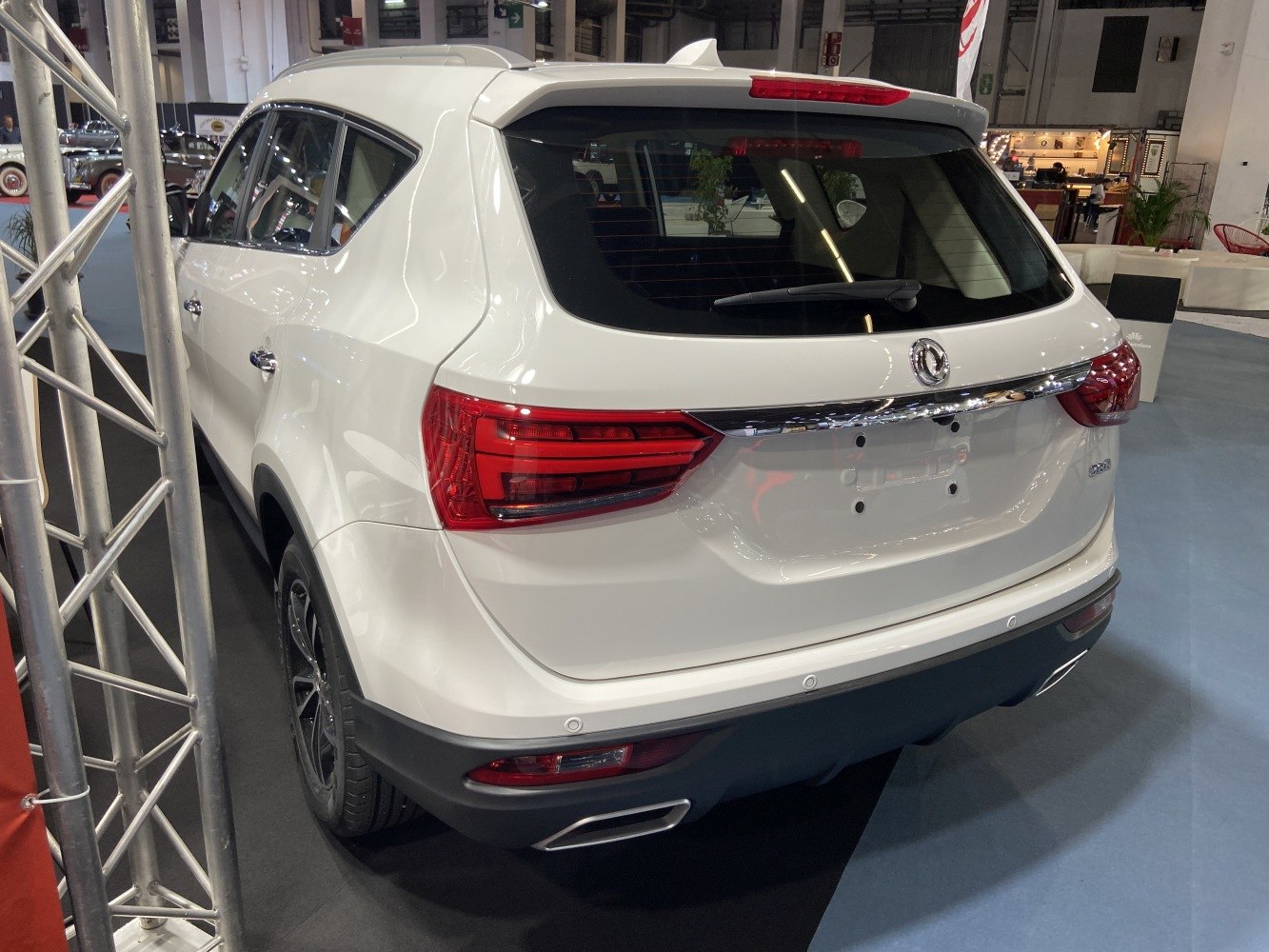

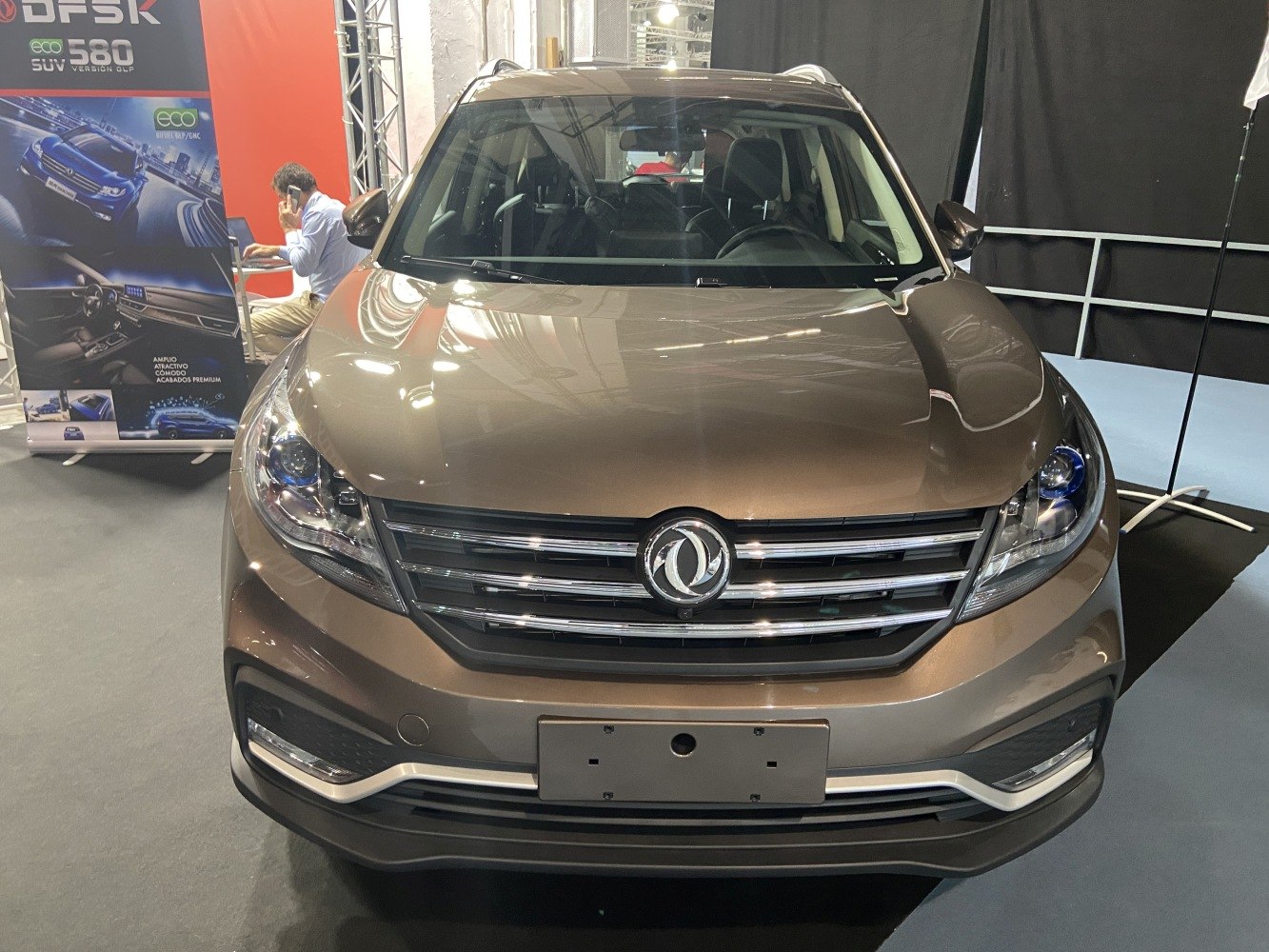

Vehicle photos
Basic information
| Brand | DFSK |
|---|---|
| Model | 580 |
| Version | 580 |
| Engine power | 150 KM – 150 KM |
| Years of production | 2021 r. – |
| Body type | SUV |
| Number of doors | 5 |
| Number of seats | 7 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | DFSK |
|---|---|
| Model | 580 |
| Version | 580 |
| Engine | 1.5 (150 KM) CVT |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2021 r. |
| Body type | SUV |
| Number of seats | 7 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 180 km/h |
|---|---|
| Fuel consumption - Combined cycle | 7.2 l/100 km |
Engine
| Engine model / code | SFG15T |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1498 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC, VVT |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 84.8 mm |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.5 l |
| Coolant capacity | 6.5 l |
Volume and weight
| Fuel tank | 58 l |
|---|---|
| Curb weight | 1510 kg |
| Gross weight | 2035 kg |
Vehicle dimensions
| Length | 4680 mm |
|---|---|
| Width | 1845 mm |
| Height | 1715 mm |
| Wheelbase | 2780 mm |
| Front track | 1570 mm |
| Rear track | 1572 mm |
| Ground clearance | 200 mm |
| Approach angle | 19.3 ° |
| Departure angle | 24.6 ° |
| Front overhang | 925 mm |
| Rear overhang | 975 mm |
| Turning circle | 11.5 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 215/60 R17; 225/60 R17 |
| Rim size | 7J x 17 |
