Specifications Cupra Formentor

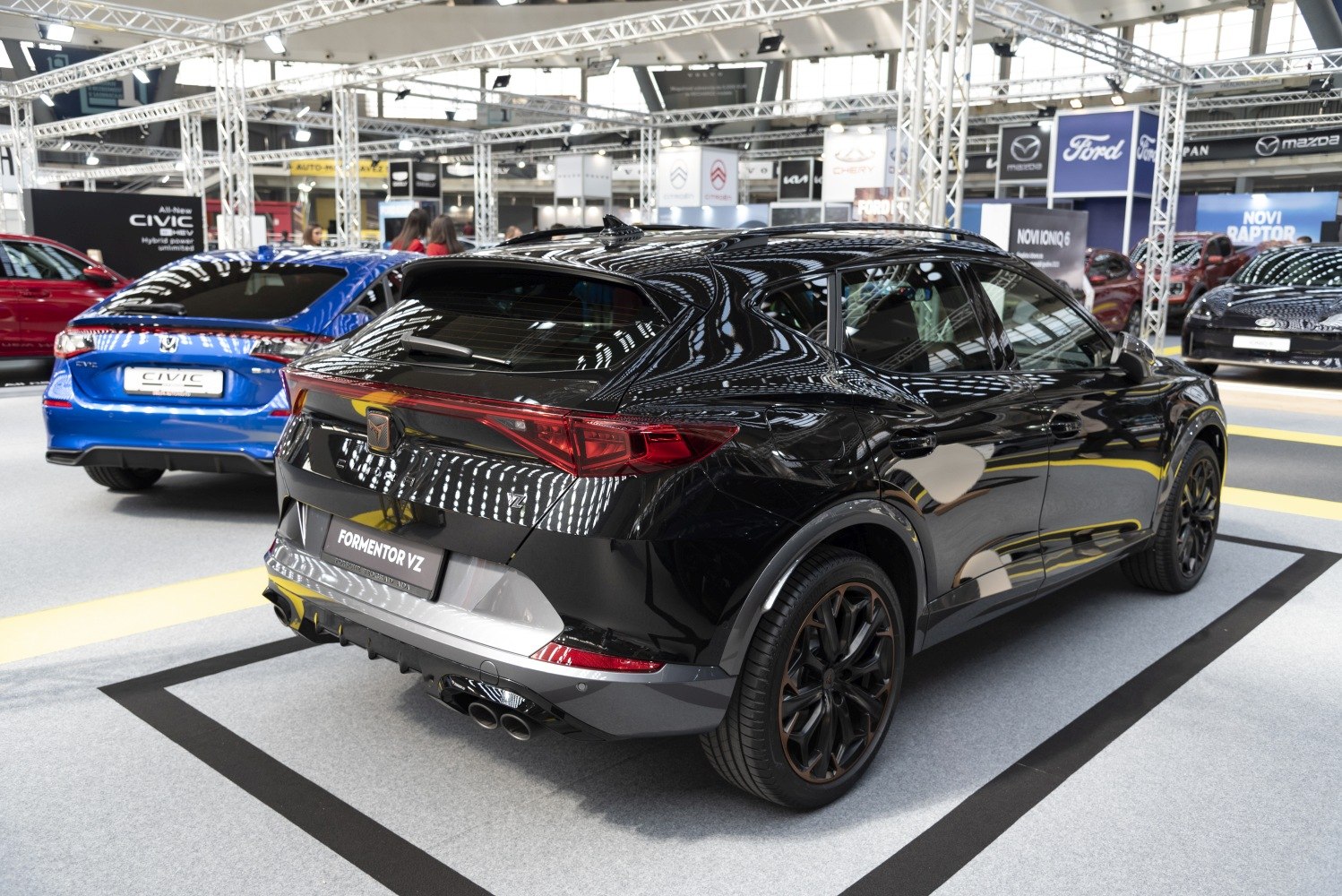

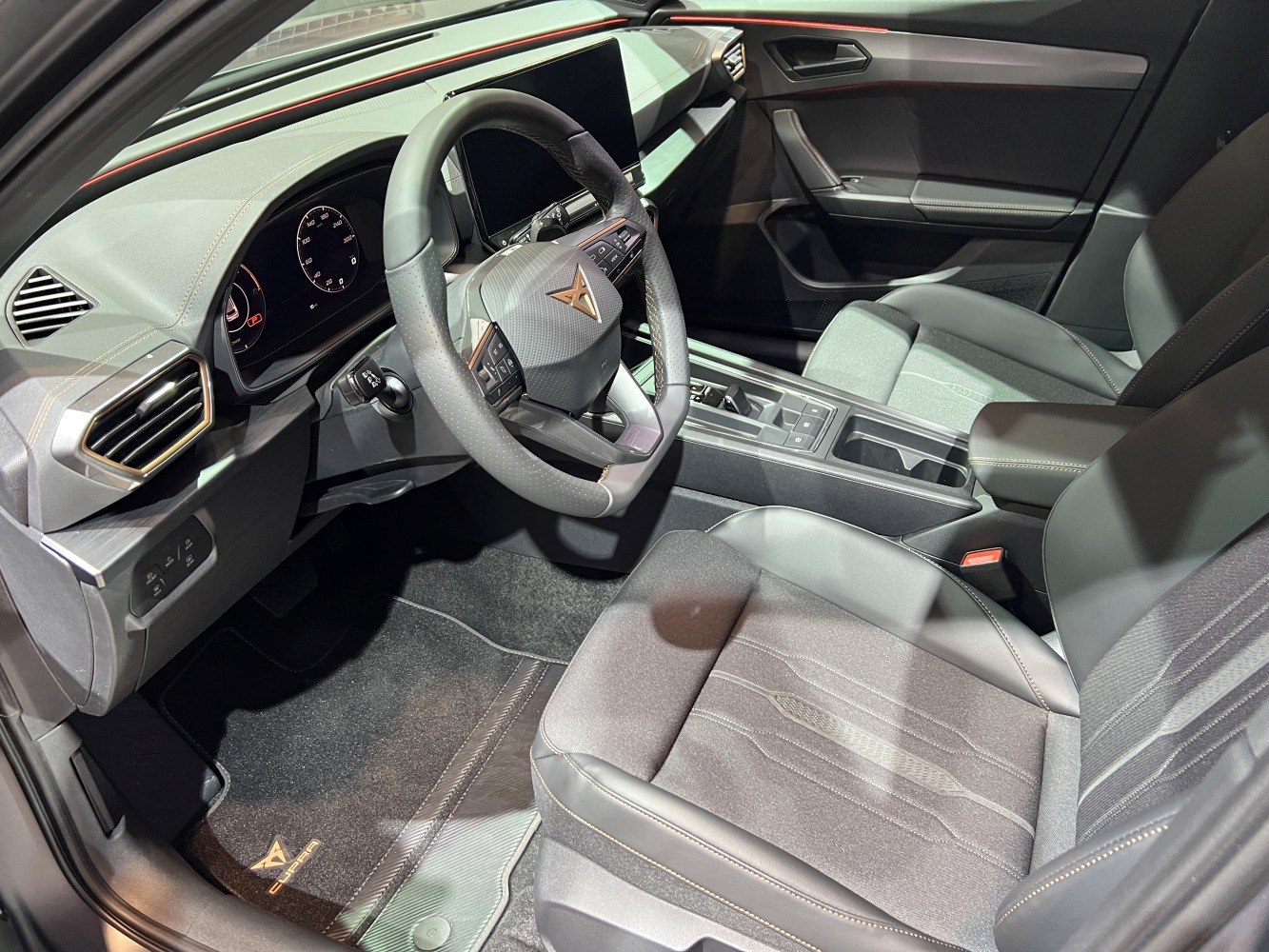

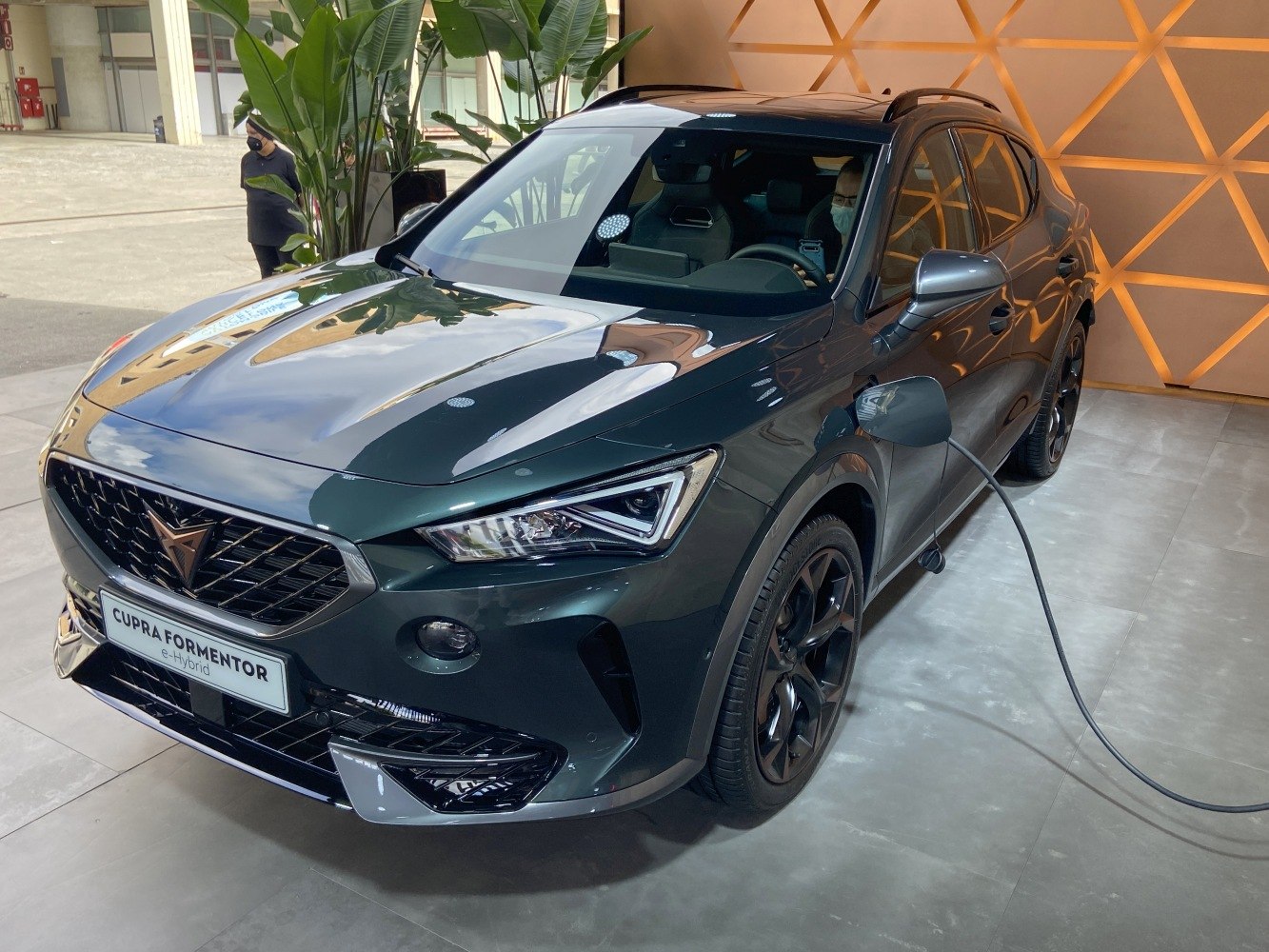

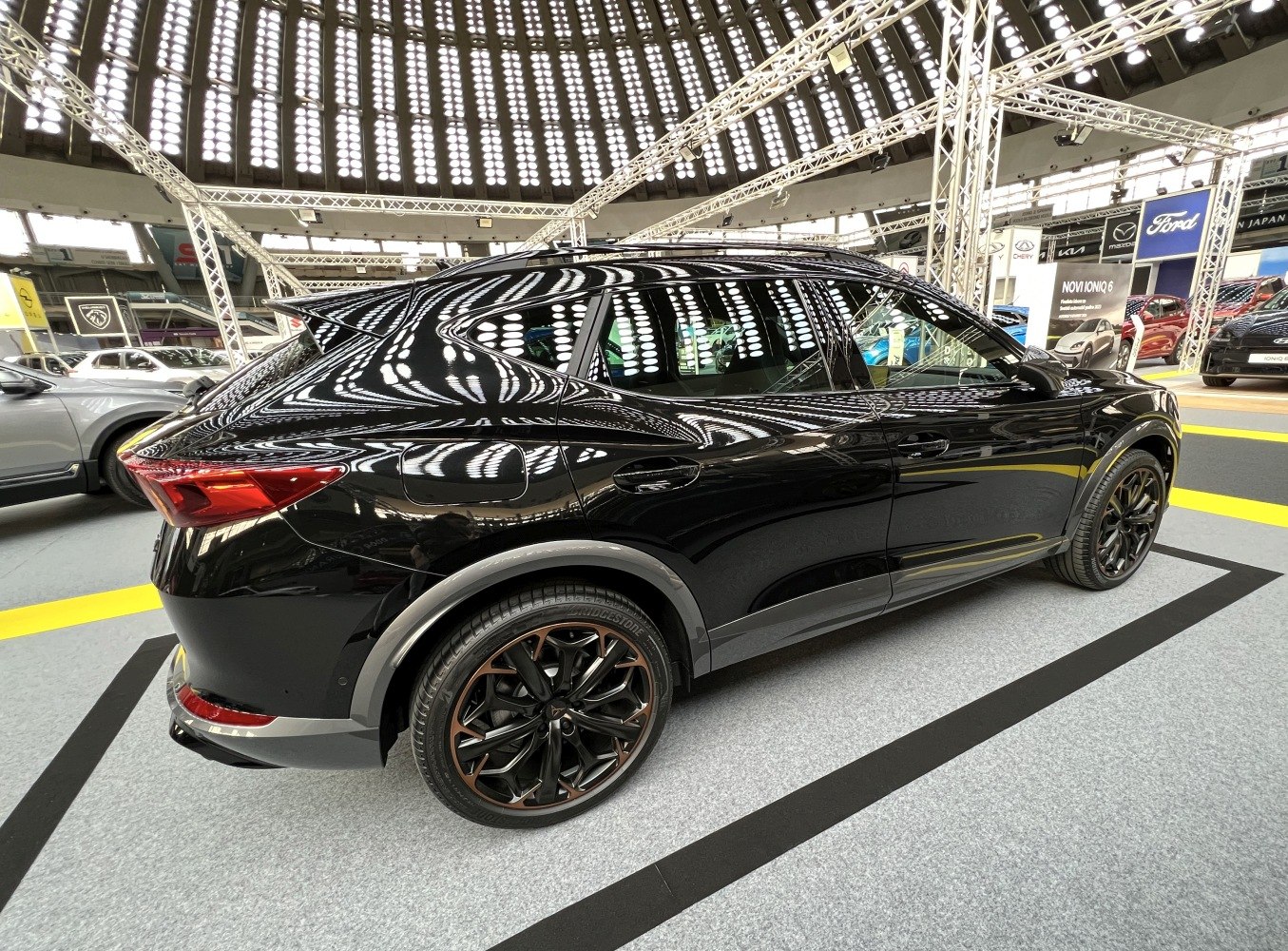

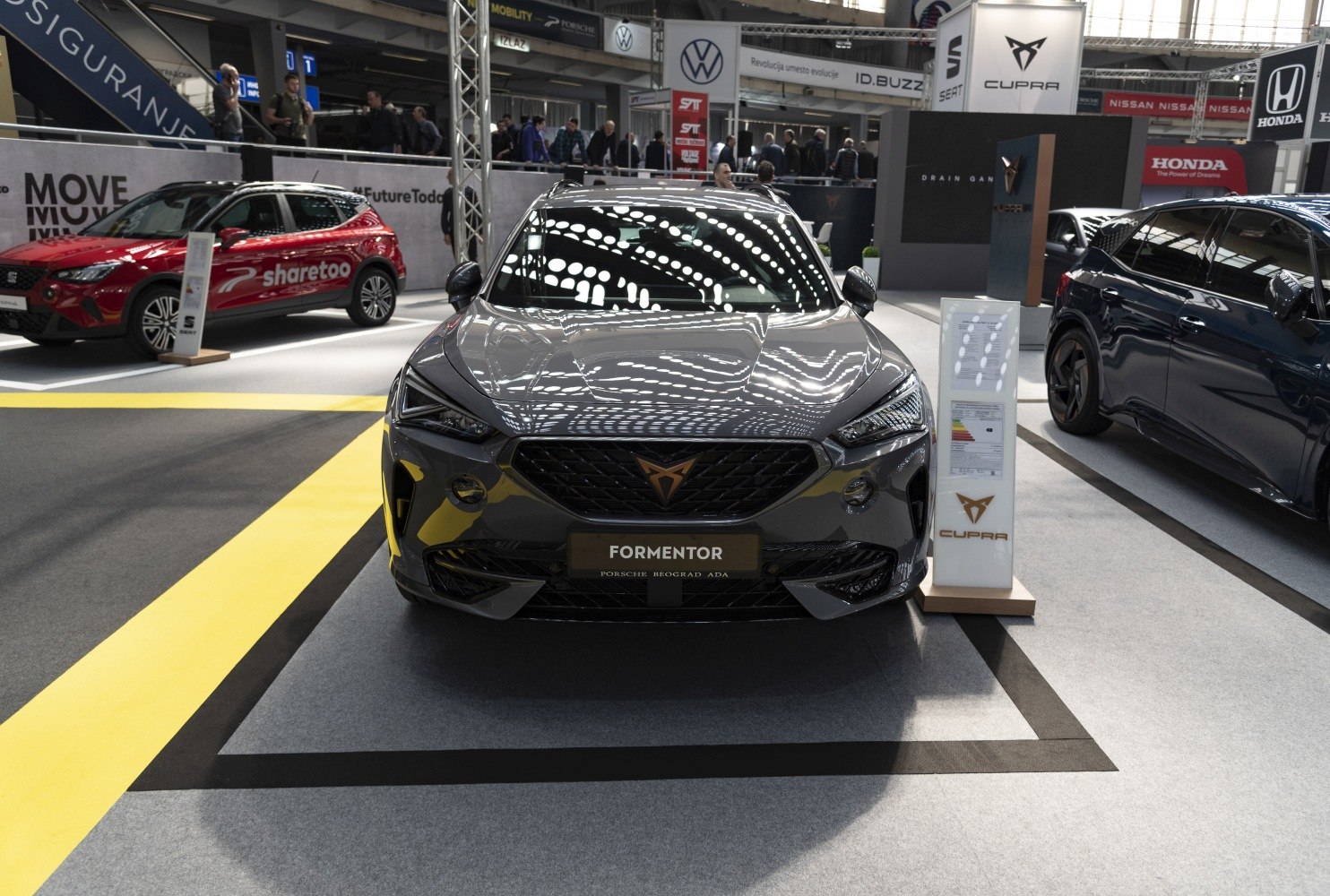

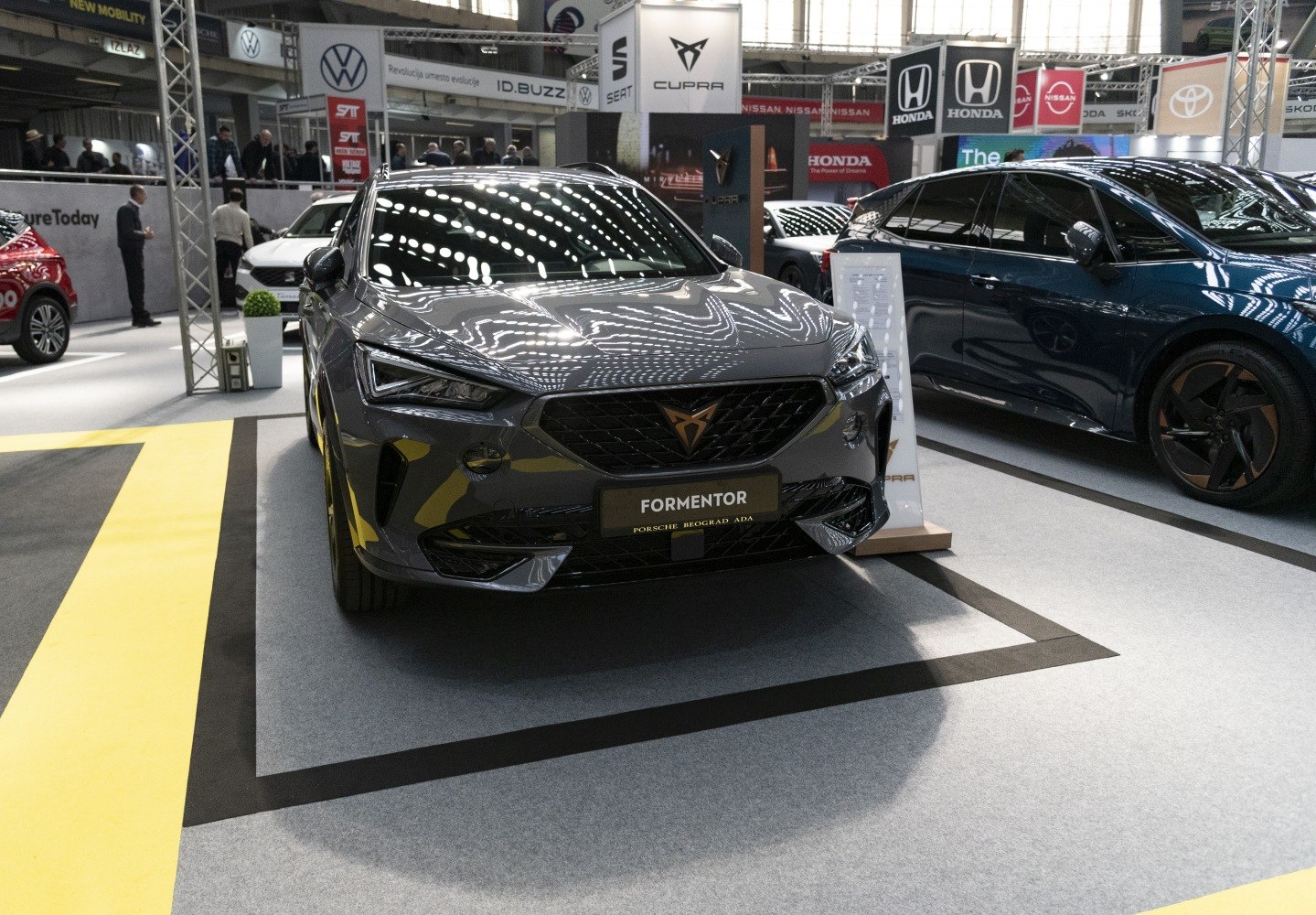

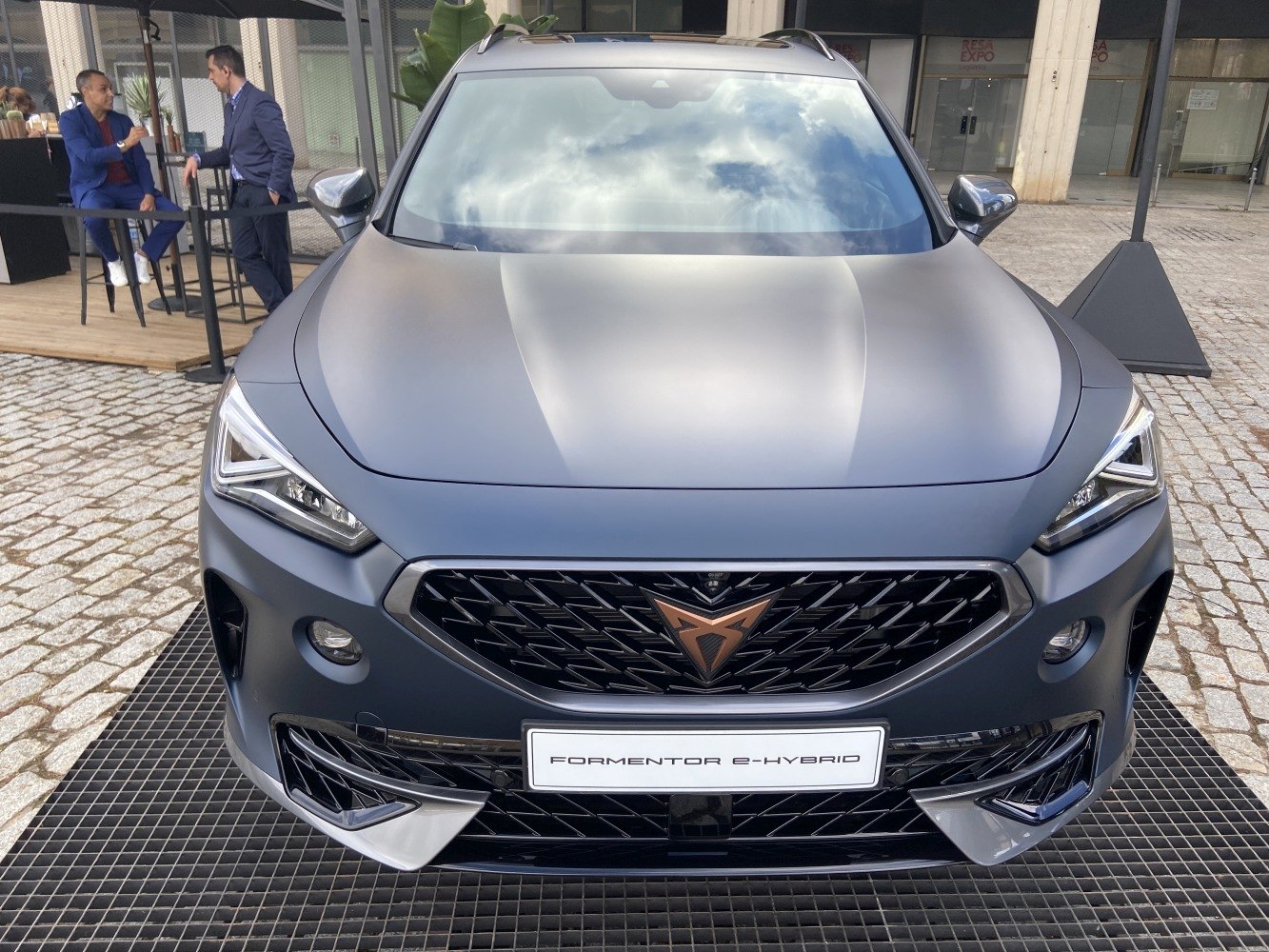

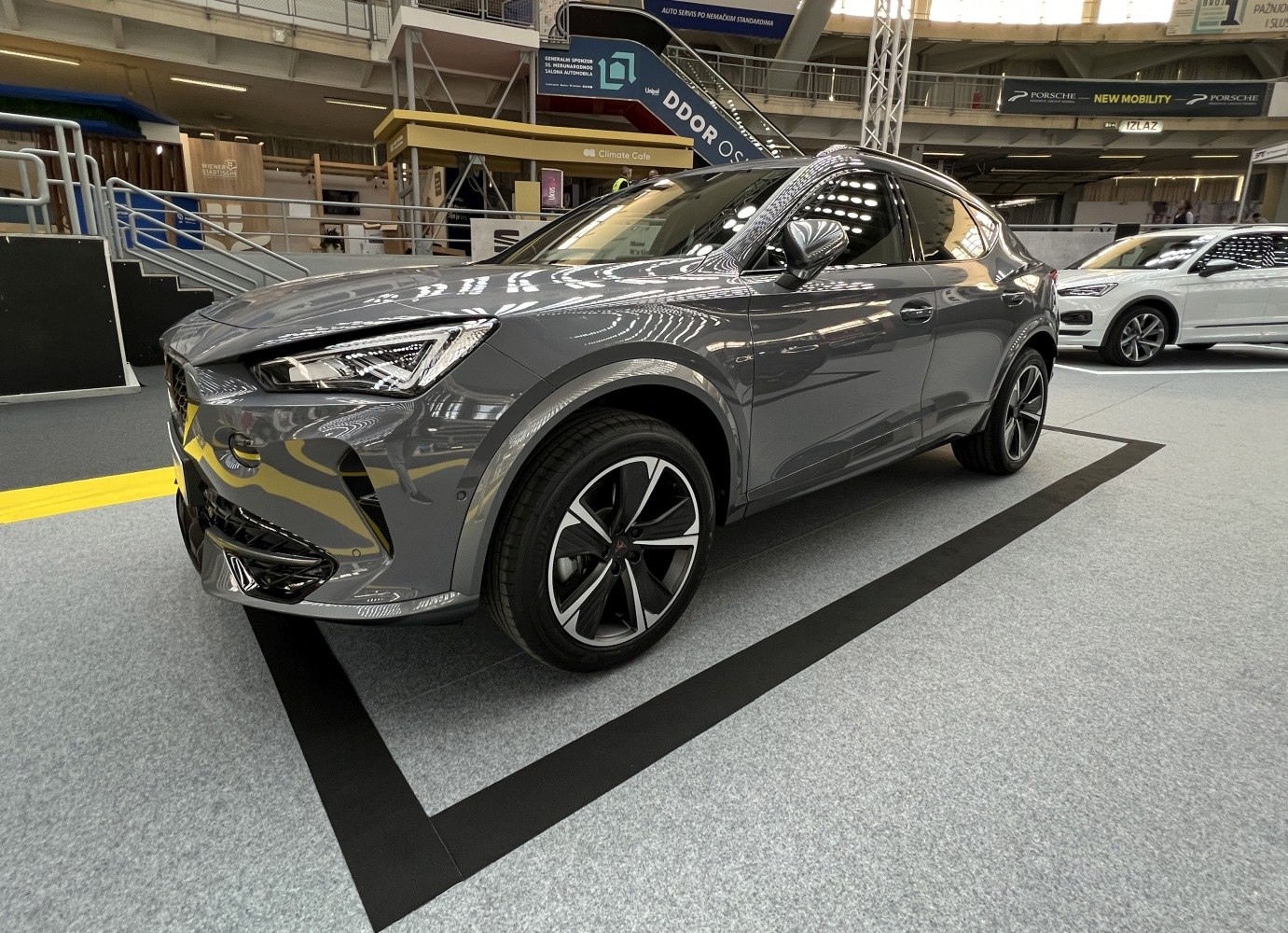

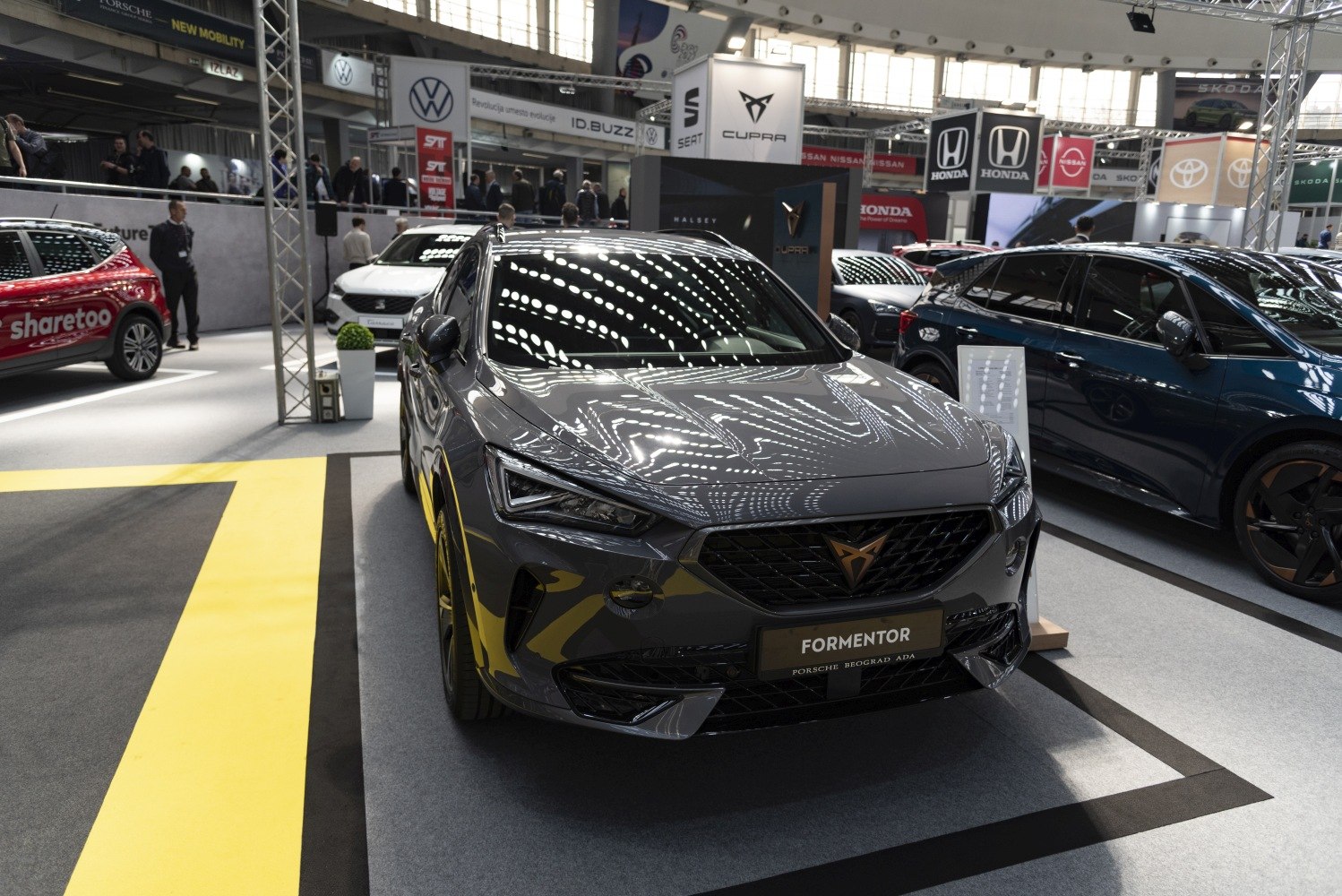

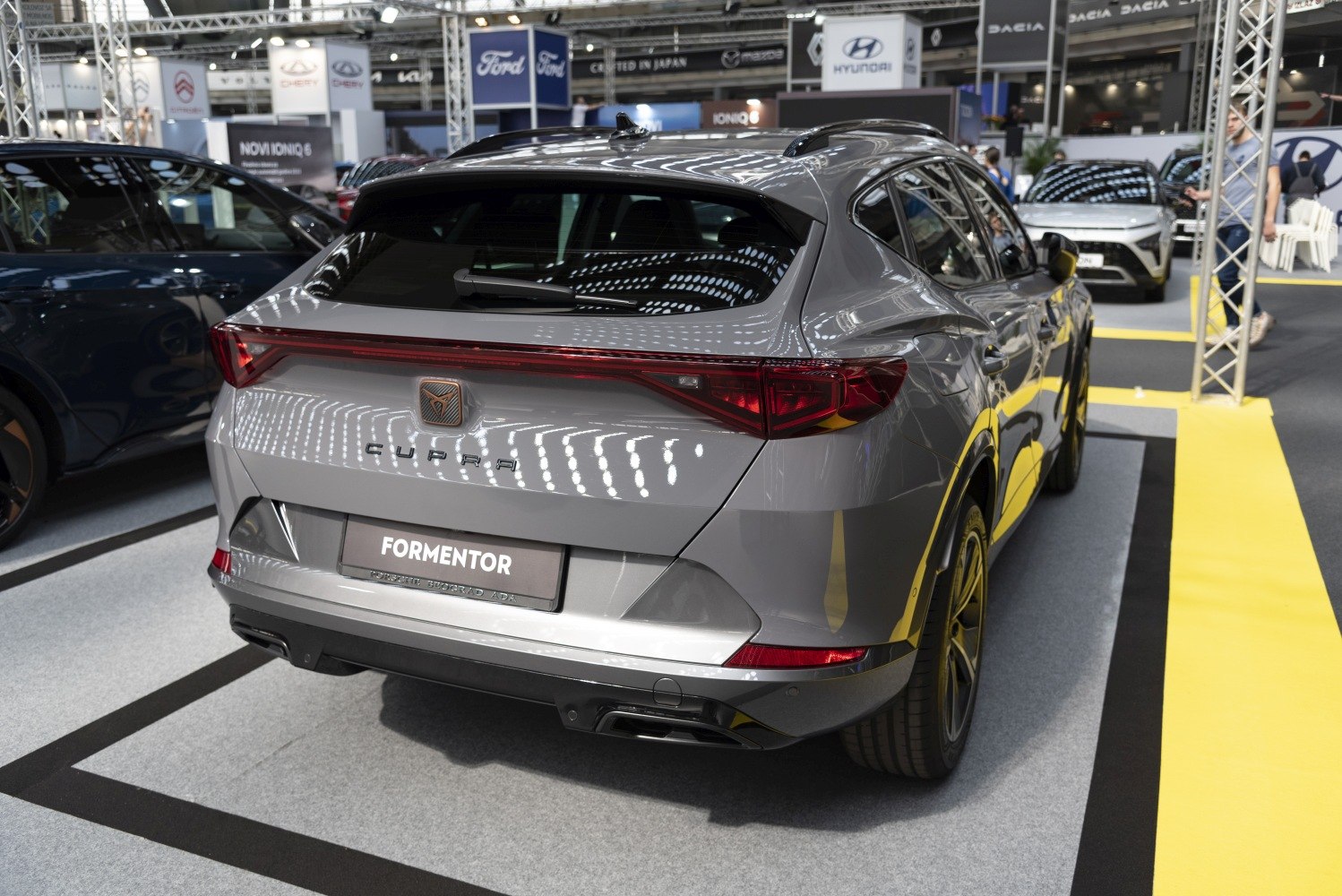

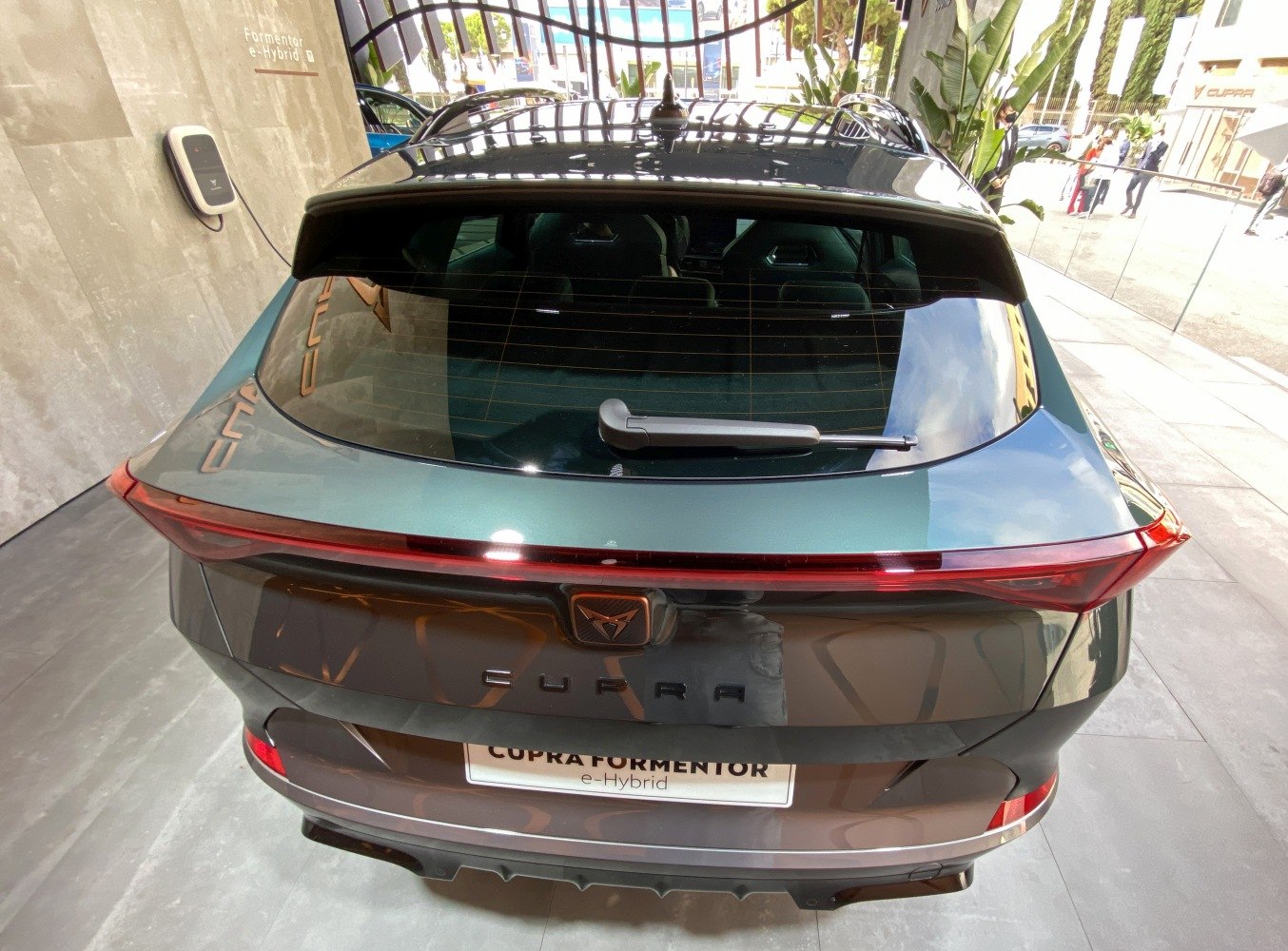

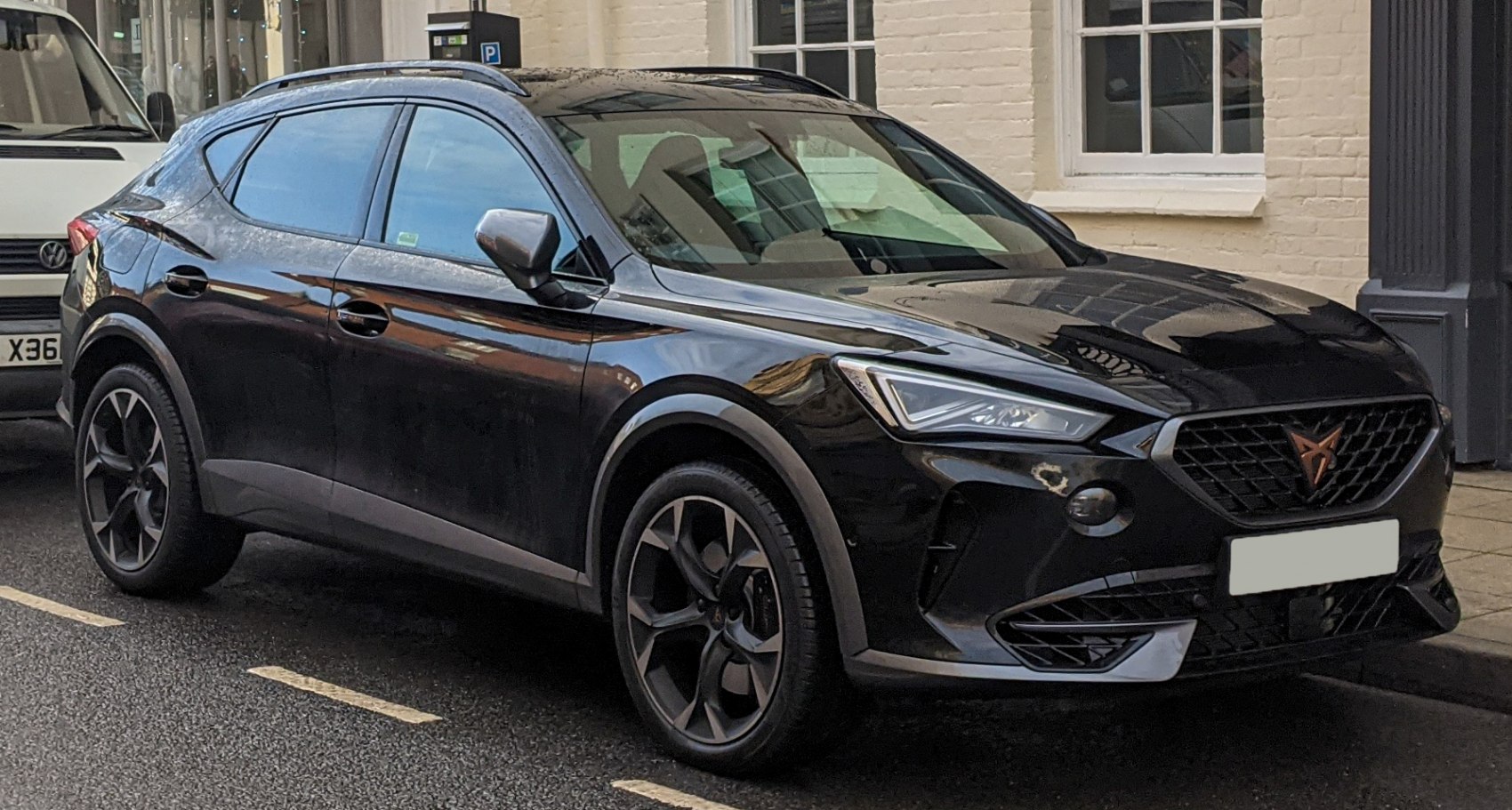

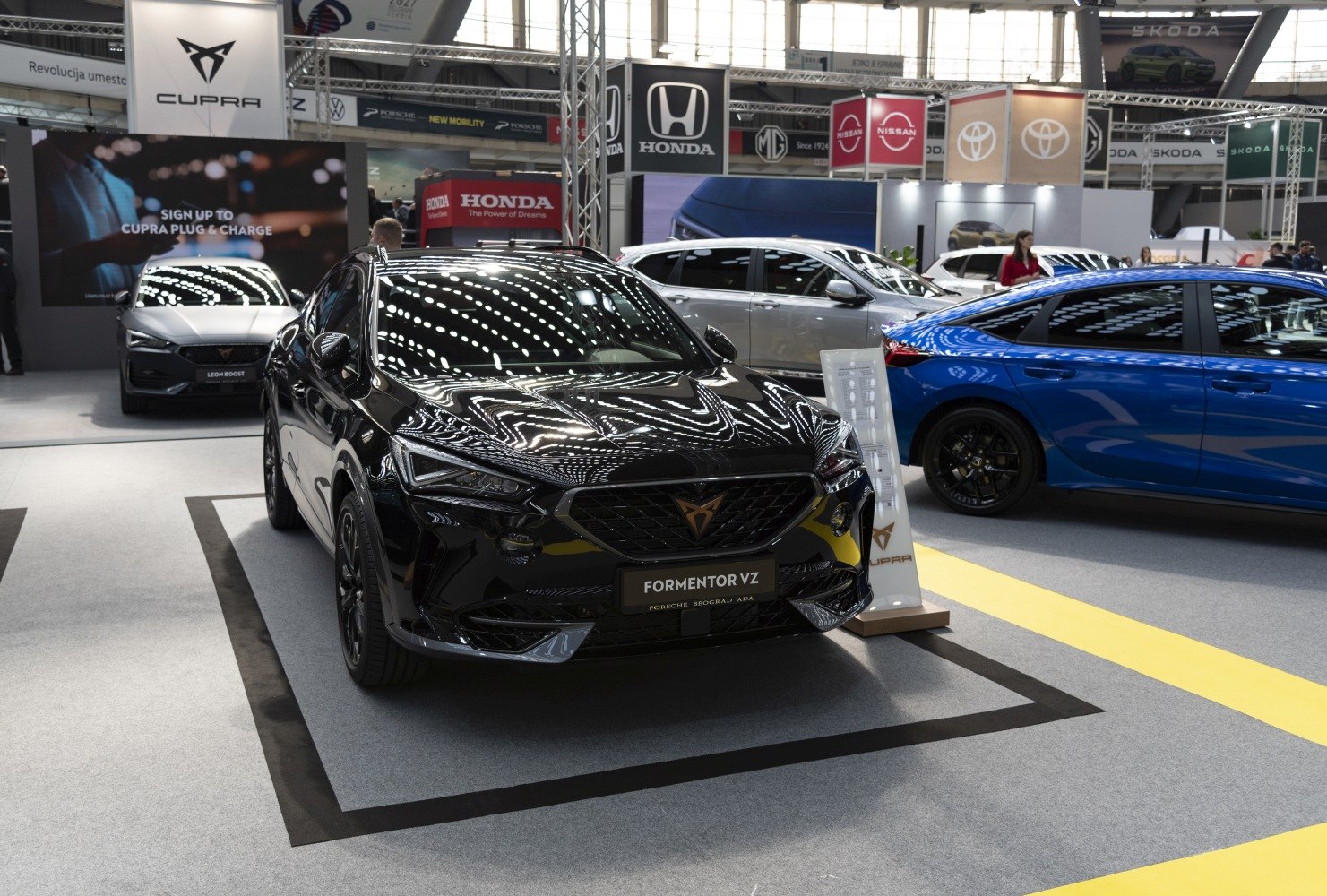

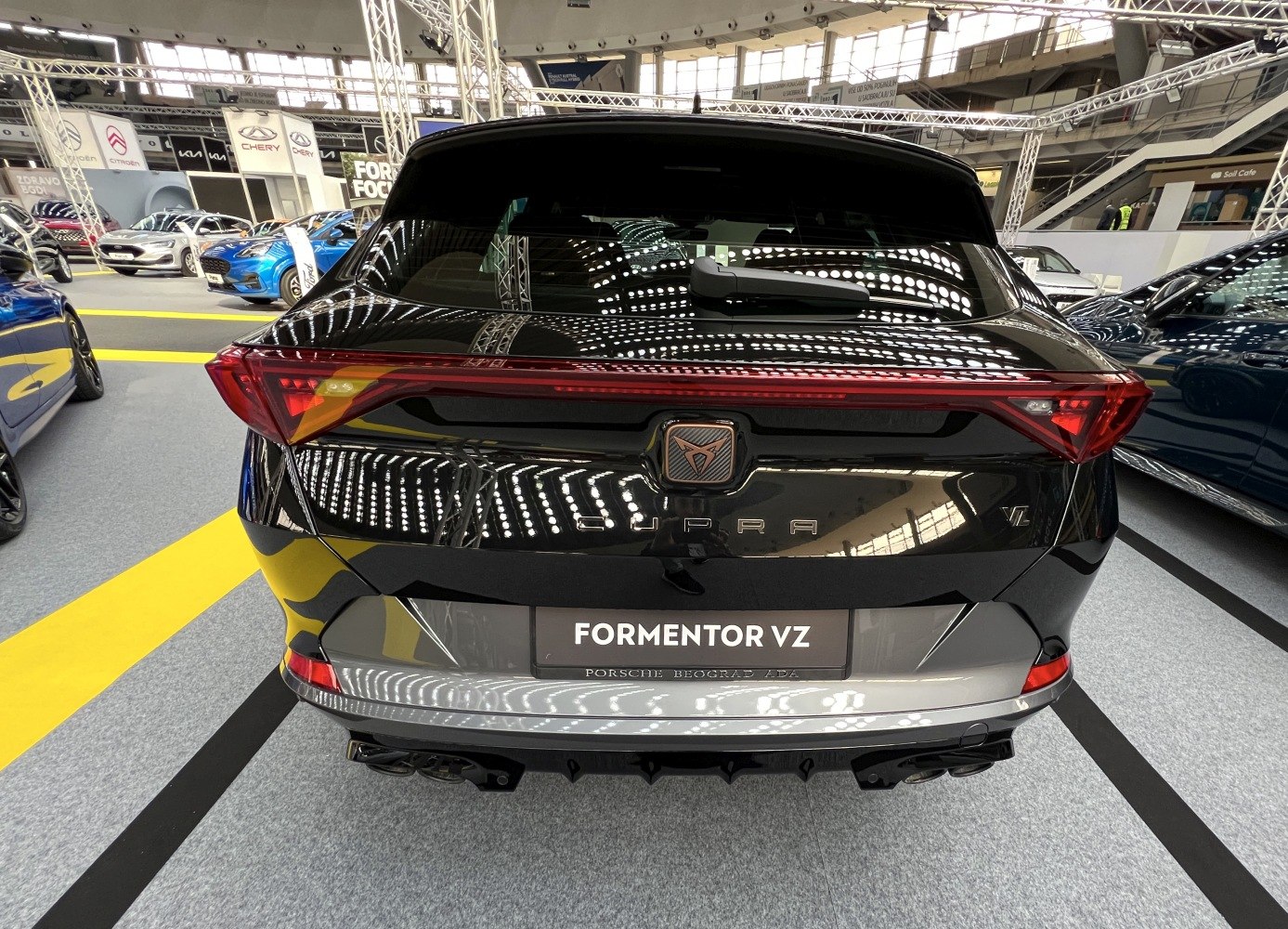

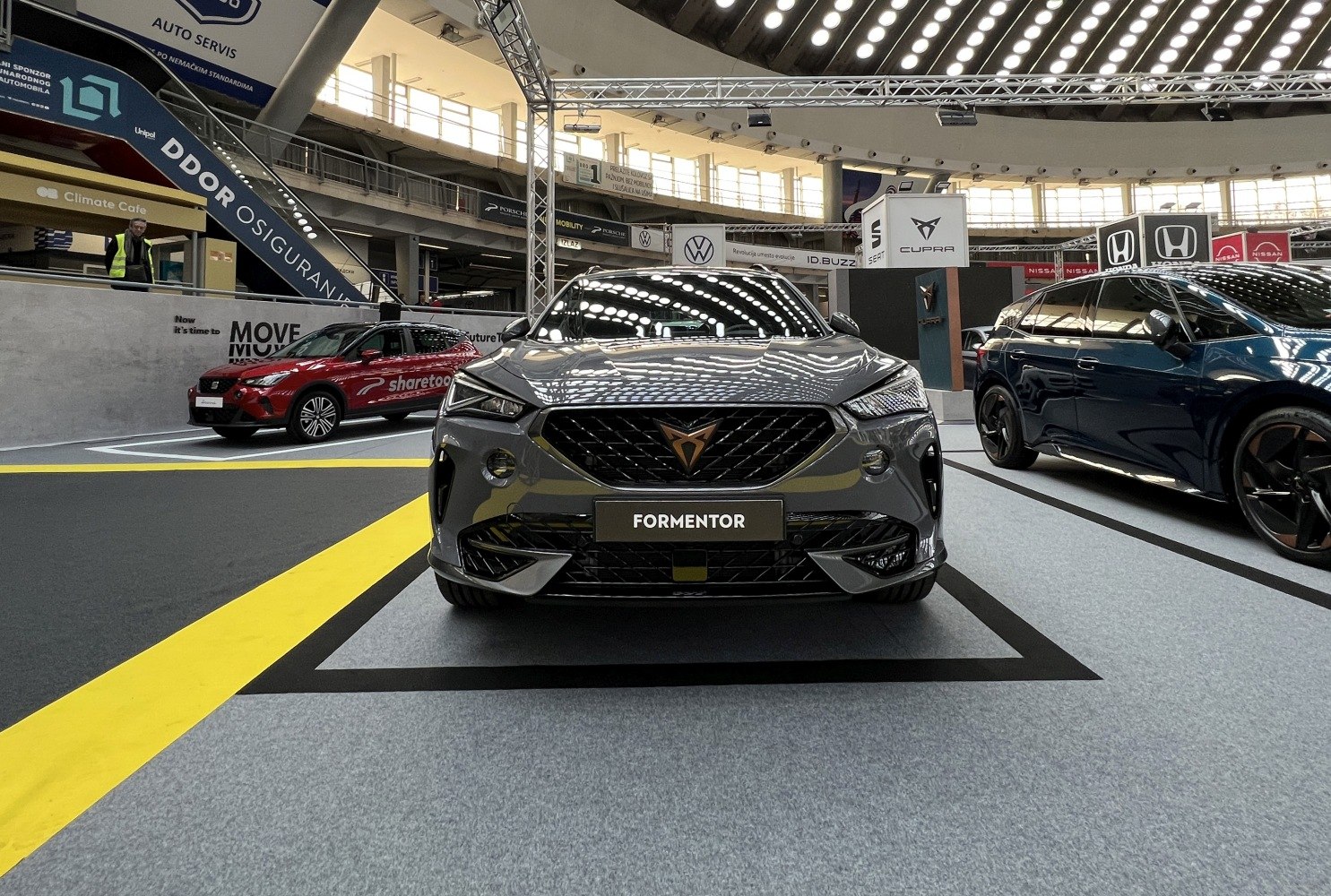

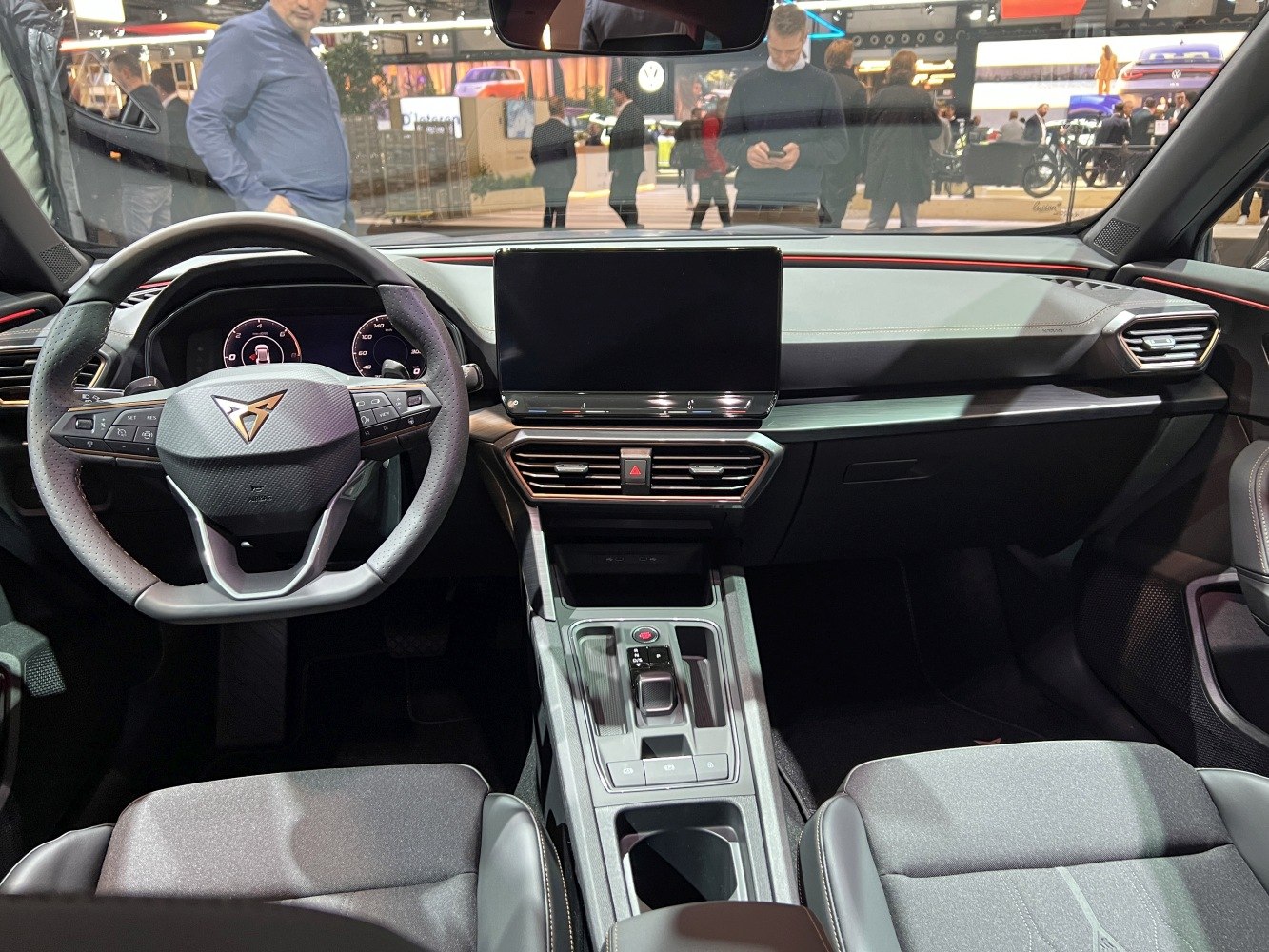

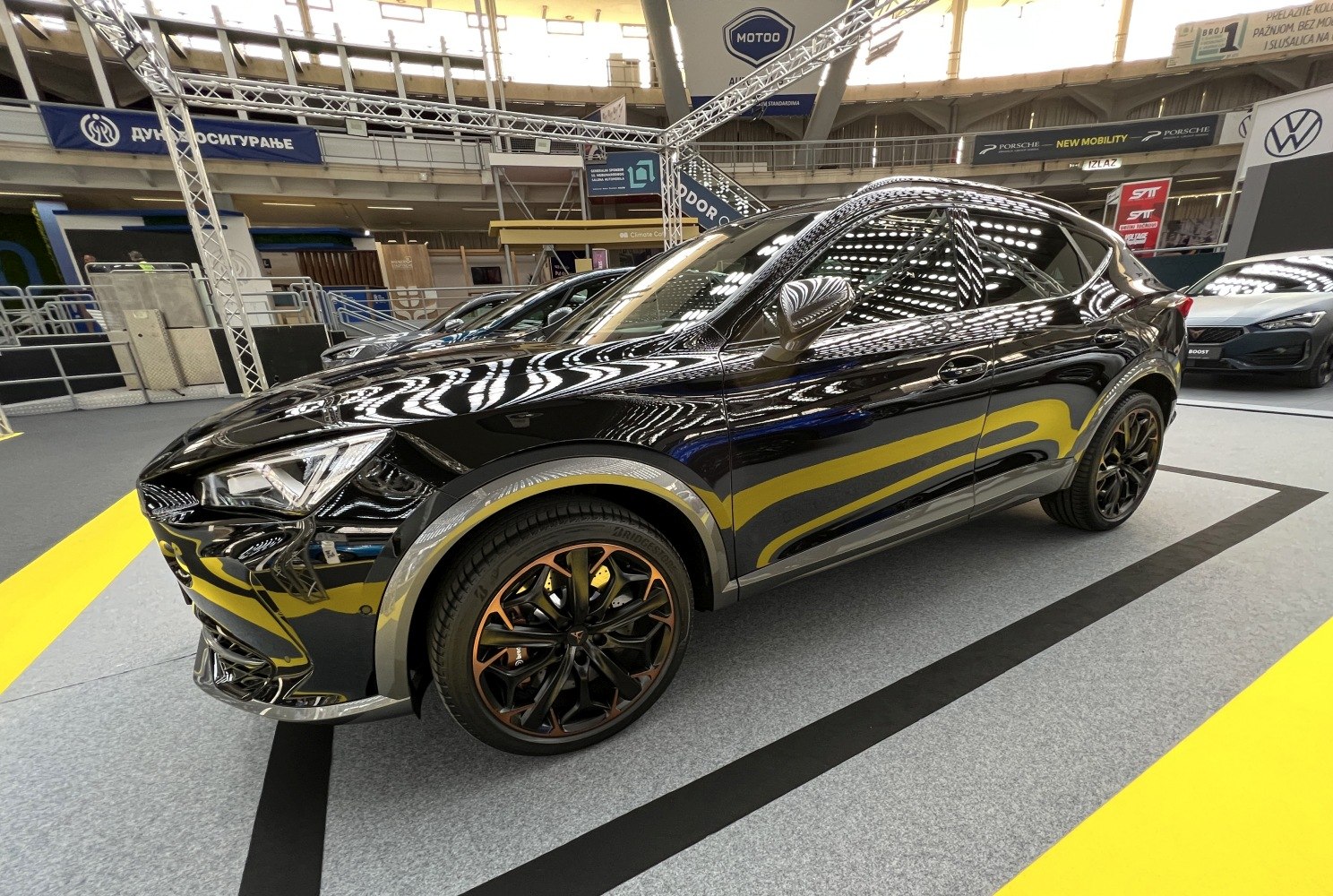

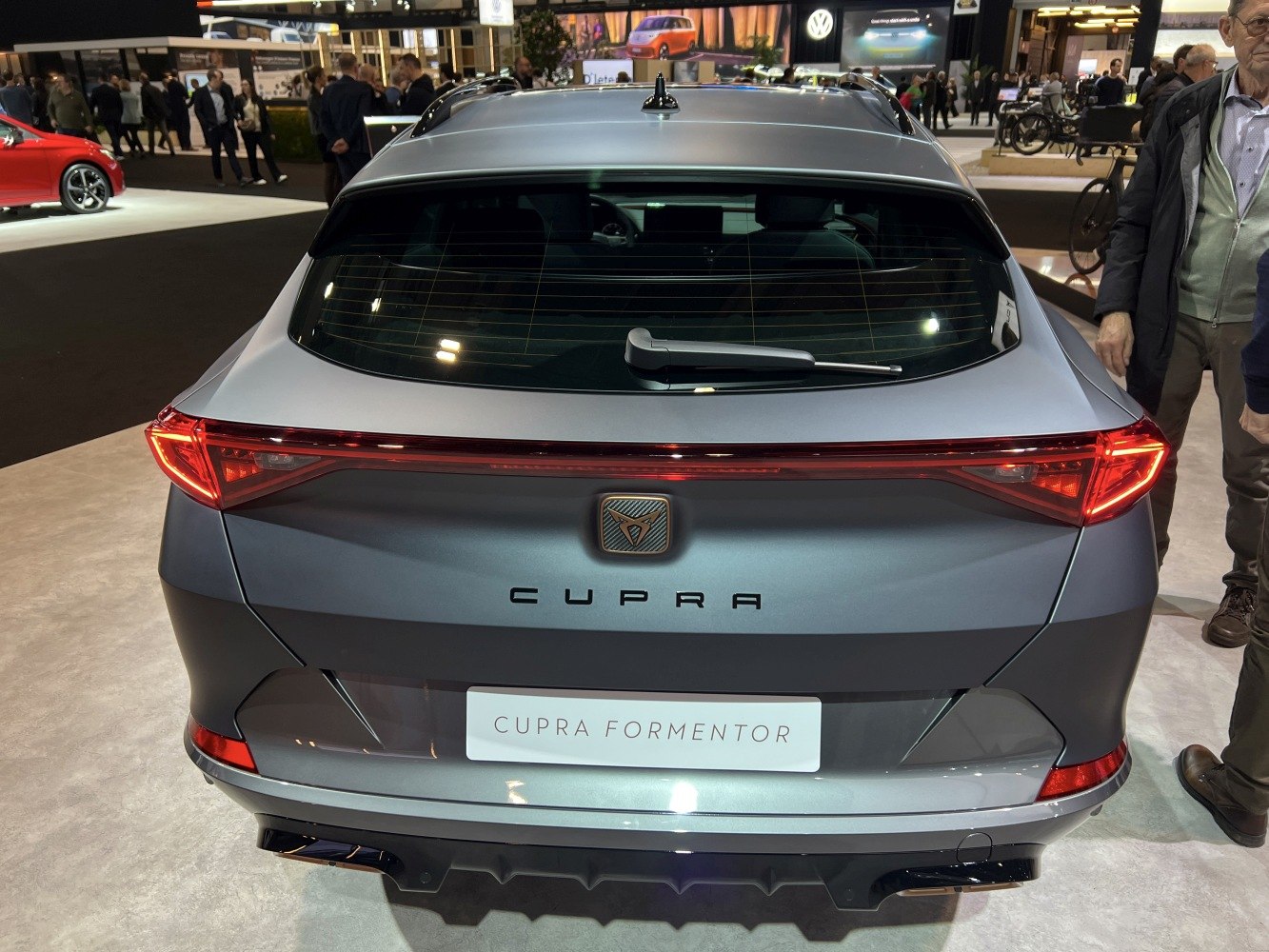

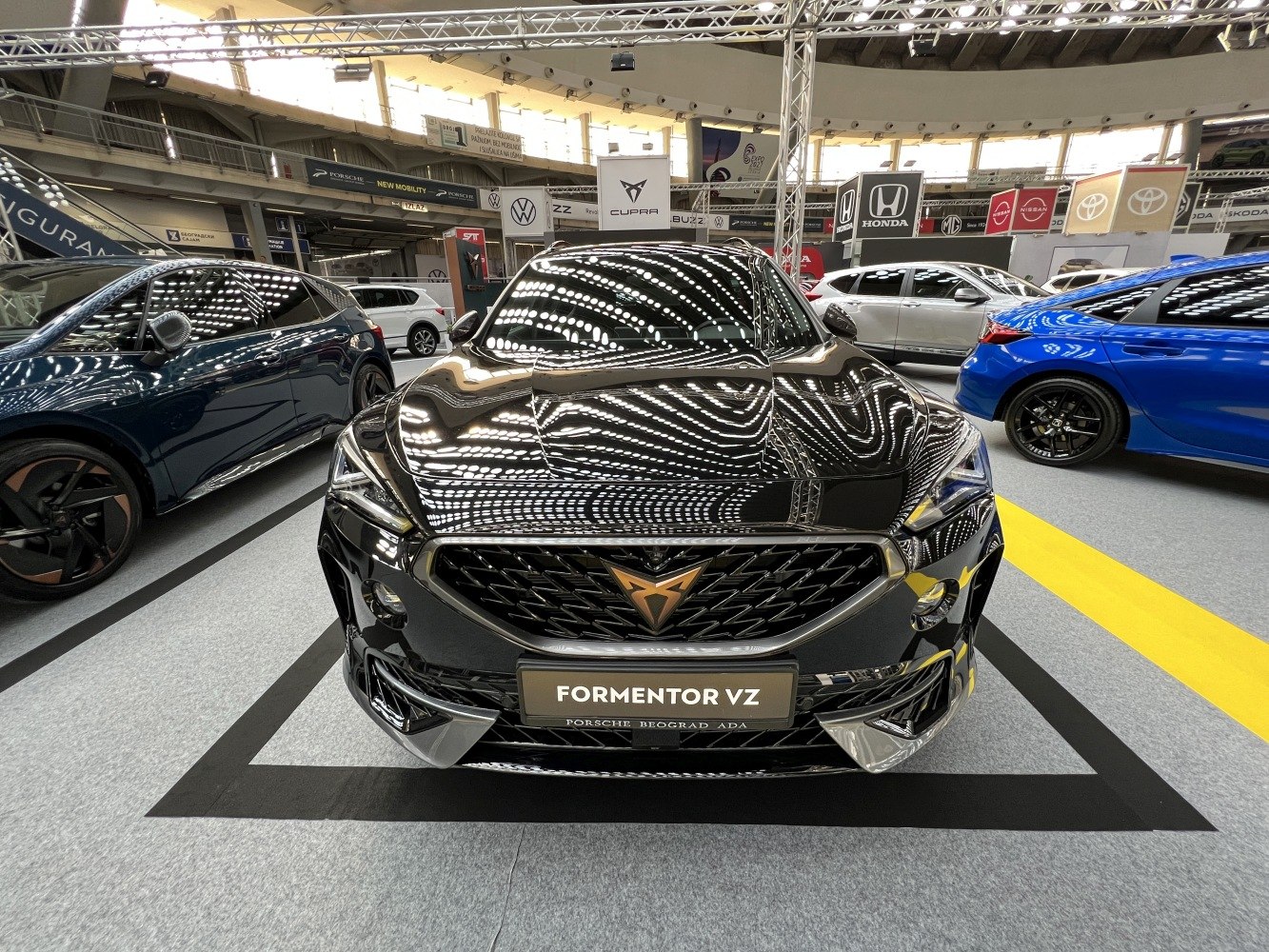

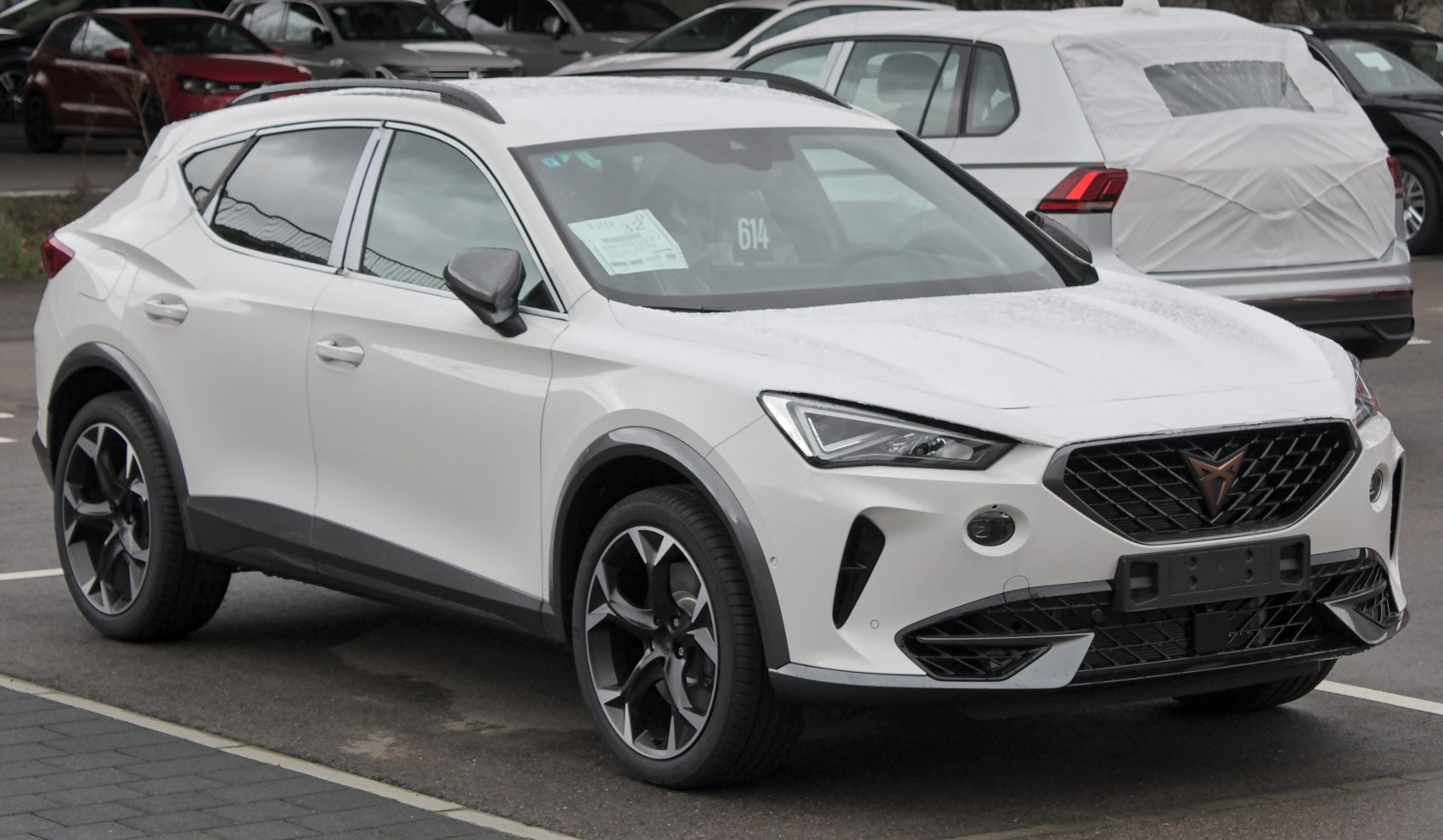

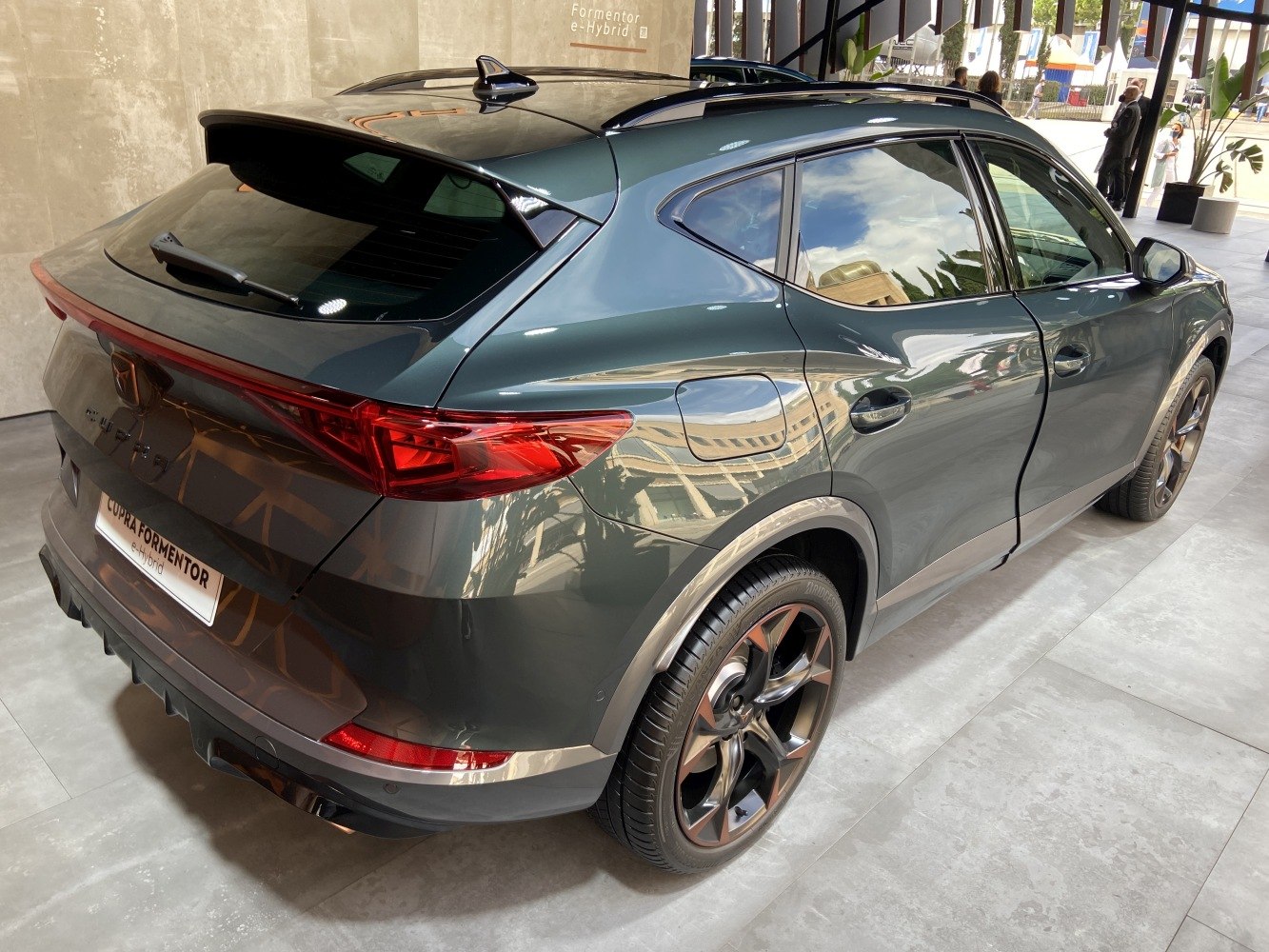

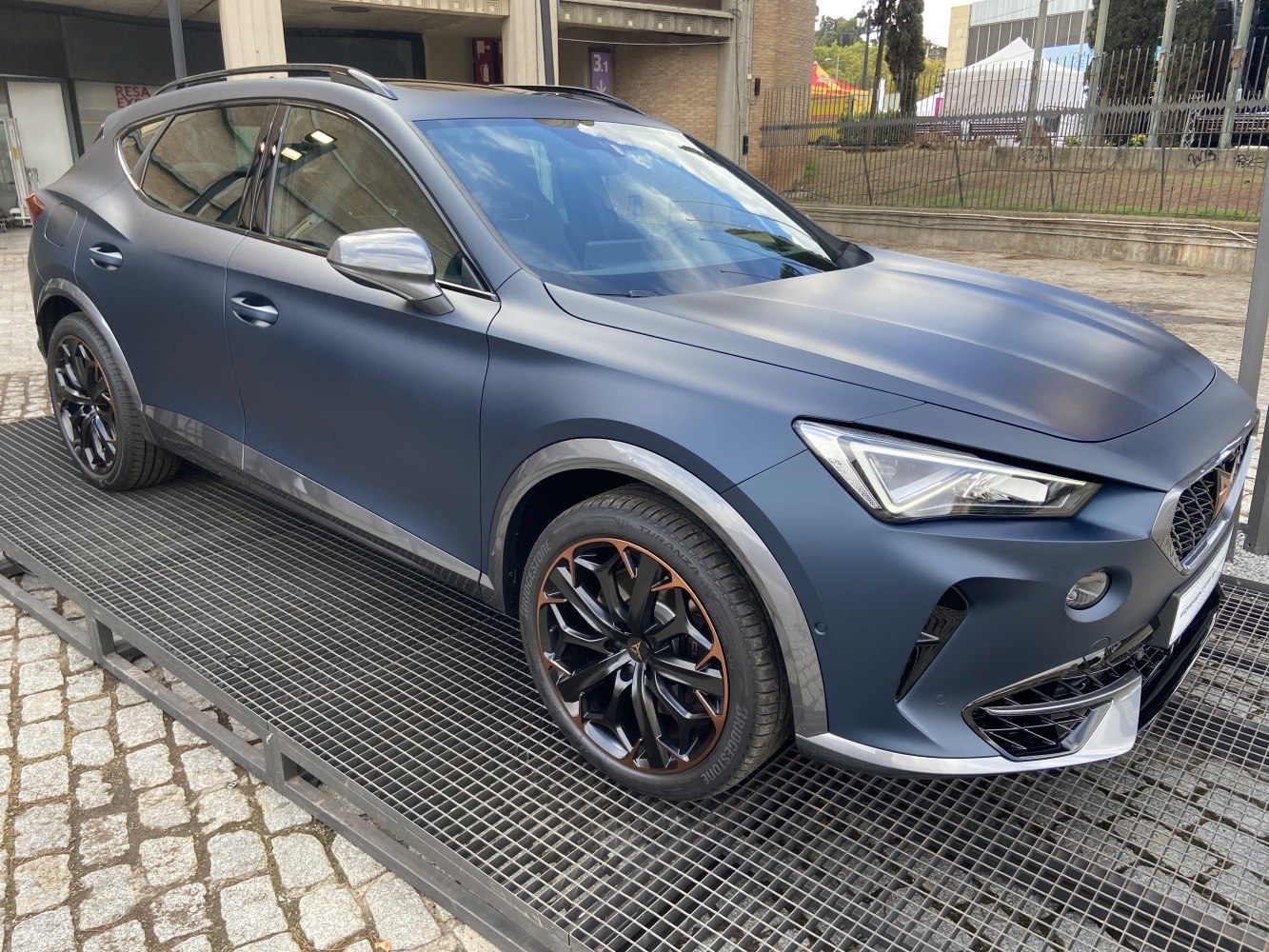

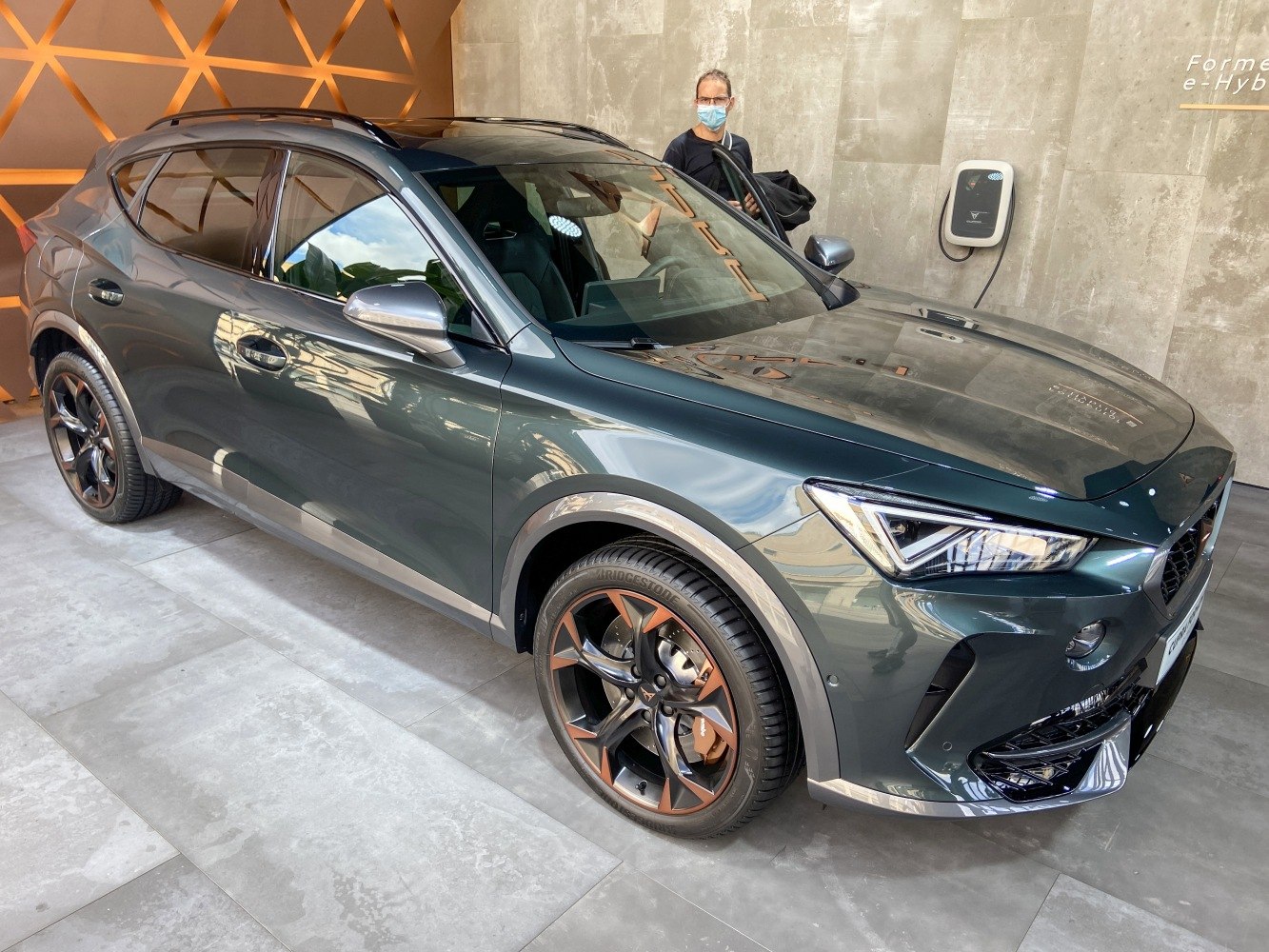

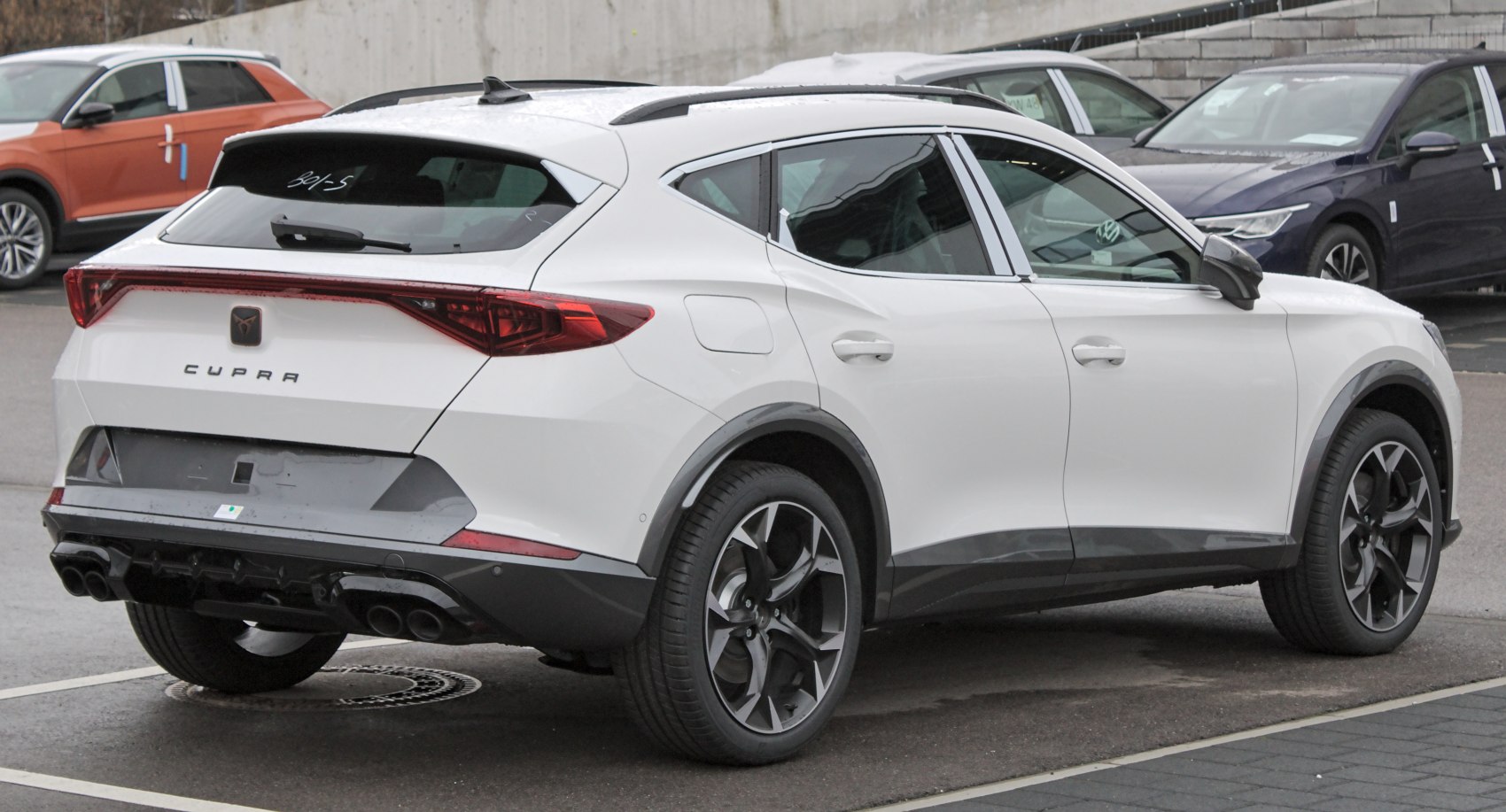

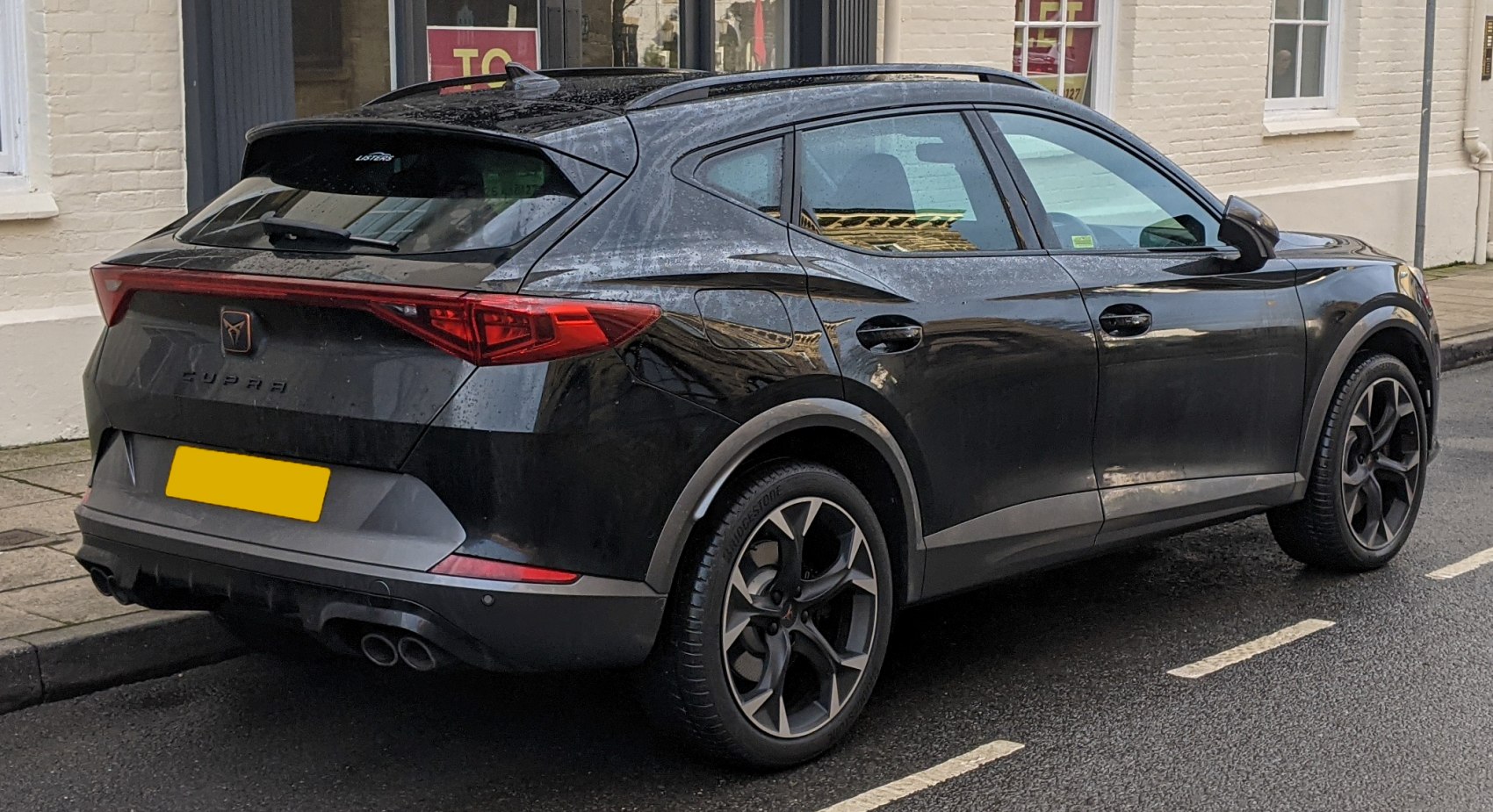

Vehicle photos
Basic information
| Brand | Cupra |
|---|---|
| Model | Formentor |
| Version | Formentor |
| Engine power | 150 KM – 390 KM |
| Years of production | 2020 r. – 2024 r. |
| Body type | SUV, Crossover |
| Number of doors | 5 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Cupra |
|---|---|
| Model | Formentor |
| Version | Formentor |
| Engine | VZ 2.0 TSI (310 KM) 4Drive DSG |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2024 r. |
| Body type | SUV, Crossover |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 250 km/h |
|---|---|
| Acceleration 0-100 km/h | 4.9 s |
Engine
| Engine model / code | DNFB |
|---|---|
| Engine displacement | 1984 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 82.5 mm |
| Piston stroke | 92.8 mm |
| Compression ratio | 9.3 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 6.6 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Minimum trunk capacity | 420 l |
| Curb weight | 1569 kg |
| Gross weight | 2140 kg |
| Braked trailer load (8% slope start) | 2000 kg |
| Braked trailer load (12% slope start) | 1800 kg |
| Trailer load without brakes | 750 kg |
Vehicle dimensions
| Length | 4450 mm |
|---|---|
| Width | 1839 mm |
| Width with unfolded mirrors | 1992 mm |
| Height | 1511 mm |
| Wheelbase | 2680 mm |
| Front track | 1585 mm |
| Rear track | 1559 mm |
| Front overhang | 893 mm |
| Rear overhang | 877 mm |
| Turning circle | 10.7 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 7 |
| Type of automatic gearbox | DSG |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 340 mm |
| Front brake disc thickness | 30 mm |
| Rear brakes | Ventilated disc |
| Rear brake disc/drum diameter | 310 mm |
| Rear brake disc thickness | 22 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 245/40 R19 94W |
| Rim size | 8J x 19 |
Basic version information
| Brand | Cupra |
|---|---|
| Model | Formentor |
| Version | Formentor |
| Engine | 1.5 TSI (150 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2024 r. |
| Body type | SUV, Crossover |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 204 km/h |
|---|---|
| Acceleration 0-100 km/h | 8.9 s |
| Fuel consumption - Combined cycle | 6.3-6.7 l/100 km |
| Emission standard | Euro 6d |
| CO2 measurement standard | WLTP |
| CO2 emissions | 142-151 g/km |
Engine
| Engine model / code | DPCA |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1498 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.3 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 450 l |
| Curb weight | 1362 kg |
| Gross weight | 1960 kg |
| Braked trailer load (8% slope start) | 1700 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 710 kg |
Vehicle dimensions
| Length | 4450 mm |
|---|---|
| Width | 1839 mm |
| Width with unfolded mirrors | 1992 mm |
| Height | 1528 mm |
| Wheelbase | 2680 mm |
| Front track | 1585 mm |
| Rear track | 1559 mm |
| Front overhang | 893 mm |
| Rear overhang | 877 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 312 mm |
| Front brake disc thickness | 25 mm |
| Rear brakes | Ventilated disc |
| Rear brake disc/drum diameter | 272 mm |
| Rear brake disc thickness | 10 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 245/45 R18 96W; 245/40 R19 94W |
| Rim size | 8J x 18; 8J x 19 |
Basic version information
| Brand | Cupra |
|---|---|
| Model | Formentor |
| Version | Formentor |
| Engine | 1.5 TSI (150 KM) DSG |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2024 r. |
| Body type | SUV, Crossover |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 203 km/h |
|---|---|
| Acceleration 0-100 km/h | 8.9 s |
| Fuel consumption - Combined cycle | 6.6-7 l/100 km |
| Emission standard | Euro 6d |
| CO2 measurement standard | WLTP |
| CO2 emissions | 150-158 g/km |
Engine
| Engine model / code | DPCA |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1498 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.3 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 450 l |
| Curb weight | 1388 kg |
| Gross weight | 1980 kg |
| Braked trailer load (8% slope start) | 1700 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 730 kg |
Vehicle dimensions
| Length | 4450 mm |
|---|---|
| Width | 1839 mm |
| Width with unfolded mirrors | 1992 mm |
| Height | 1528 mm |
| Wheelbase | 2680 mm |
| Front track | 1585 mm |
| Rear track | 1559 mm |
| Front overhang | 893 mm |
| Rear overhang | 877 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 7 |
| Type of automatic gearbox | DSG |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 312 mm |
| Front brake disc thickness | 25 mm |
| Rear brakes | Ventilated disc |
| Rear brake disc/drum diameter | 272 mm |
| Rear brake disc thickness | 10 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 245/45 R18 96W; 245/40 R19 94W |
| Rim size | 8J x 18; 8J x 19 |
Basic version information
| Brand | Cupra |
|---|---|
| Model | Formentor |
| Version | Formentor |
| Engine | 1.4 TSI (245 KM) e-Hybrid DSG |
| Engine type | PHEV (Plug-in Hybrid Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2021 r. |
| End of production | 2024 r. |
| Body type | SUV, Crossover |
| Number of seats | 5 |
| Fuel type | Gasoline / Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 7 s |
| Battery gross capacity | 12.8 kWh |
| Net battery capacity | 10.4 kWh |
| Electric range measurement standard | WLTP |
| All-electric range | 52-55 km |
| Fuel consumption - Combined cycle | 1.4-1.6 l/100 km |
| Energy consumption measurement standard | WLTP |
| Average energy consumption | 15.7-16.1 kWh/100 km |
| Emission standard | Euro 6d |
| CO2 measurement standard | WLTP |
| CO2 emissions | 31-35 g/km |
Engine
| Max electric motor power | 116 KM |
|---|---|
| Electric motor torque | 330 Nm |
| Electric motor position | Między silnikiem spalinowym a skrzynią biegów |
| System power | 245 KM |
| System torque | 400 Nm |
| Engine model / code | DGEA |
| Engine position | Front, Transverse |
| Engine displacement | 1395 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 74.5 mm |
| Piston stroke | 80 mm |
| Compression ratio | 10 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4 l |
| Coolant capacity | 10 l |
Volume and weight
| Fuel tank | 40 l |
|---|---|
| Minimum trunk capacity | 345 l |
| Maximum trunk capacity | 1415 l |
| Curb weight | 1629 kg |
| Gross weight | 2120 kg |
| Roof load | 75 kg |
| Braked trailer load (8% slope start) | 1700 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 80 kg |
Vehicle dimensions
| Length | 4450 mm |
|---|---|
| Width | 1839 mm |
| Width with unfolded mirrors | 1992 mm |
| Height | 1510 mm |
| Wheelbase | 2680 mm |
| Front track | 1585 mm |
| Rear track | 1559 mm |
| Front overhang | 893 mm |
| Rear overhang | 877 mm |
| Turning circle | 11.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Type of automatic gearbox | DSG |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 340 mm |
| Front brake disc thickness | 30 mm |
| Rear brakes | Ventilated disc |
| Rear brake disc/drum diameter | 310 mm |
| Rear brake disc thickness | 22 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 245/40 R19 |
| Rim size | 8J x 19 |
Basic version information
| Brand | Cupra |
|---|---|
| Model | Formentor |
| Version | Formentor |
| Engine | 2.0 TSI (245 KM) DSG |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2021 r. |
| End of production | 2023 r. |
| Body type | SUV, Crossover |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 238 km/h |
|---|---|
| Acceleration 0-100 km/h | 6.8 s |
| Fuel consumption - Combined cycle | 7.7-7.9 l/100 km |
| Emission standard | Euro 6d |
| CO2 measurement standard | WLTP |
| CO2 emissions | 174 g/km |
Engine
| Engine model / code | DNPA |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1984 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 82.5 mm |
| Piston stroke | 92.8 mm |
| Compression ratio | 9.6 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.7 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 450 l |
| Curb weight | 1481 kg |
| Gross weight | 2060 kg |
| Braked trailer load (8% slope start) | 1800 kg |
| Braked trailer load (12% slope start) | 1600 kg |
| Trailer load without brakes | 750 kg |
Vehicle dimensions
| Length | 4450 mm |
|---|---|
| Width | 1839 mm |
| Width with unfolded mirrors | 1992 mm |
| Height | 1528 mm |
| Wheelbase | 2680 mm |
| Front track | 1585 mm |
| Rear track | 1559 mm |
| Front overhang | 893 mm |
| Rear overhang | 877 mm |
| Turning circle | 11.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 7 |
| Type of automatic gearbox | DSG |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 340 mm |
| Front brake disc thickness | 30 mm |
| Rear brakes | Ventilated disc |
| Rear brake disc/drum diameter | 310 mm |
| Rear brake disc thickness | 22 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 245/40 R19 94W |
| Rim size | 19 |
Basic version information
| Brand | Cupra |
|---|---|
| Model | Formentor |
| Version | Formentor |
| Engine | 2.0 TSI (190 KM) 4Drive DSG |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2021 r. |
| End of production | 2023 r. |
| Body type | SUV, Crossover |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 220 km/h |
|---|---|
| Acceleration 0-100 km/h | 7.1 s |
| Fuel consumption - Combined cycle | 7.5-8 l/100 km |
| Emission standard | Euro 6d |
| CO2 measurement standard | WLTP |
| CO2 emissions | 171-176 g/km |
Engine
| Engine model / code | EA888evo4/DNNA |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1984 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 82.5 mm |
| Piston stroke | 92.8 mm |
| Compression ratio | 12.2 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.7 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Minimum trunk capacity | 420 l |
| Curb weight | 1521 kg |
| Gross weight | 2110 kg |
| Braked trailer load (8% slope start) | 1900 kg |
| Braked trailer load (12% slope start) | 1700 kg |
| Trailer load without brakes | 750 kg |
Vehicle dimensions
| Length | 4450 mm |
|---|---|
| Width | 1839 mm |
| Width with unfolded mirrors | 1992 mm |
| Height | 1528 mm |
| Wheelbase | 2680 mm |
| Front track | 1585 mm |
| Rear track | 1559 mm |
| Front overhang | 893 mm |
| Rear overhang | 877 mm |
| Turning circle | 11.4 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 7 |
| Type of automatic gearbox | DSG |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 312 mm |
| Front brake disc thickness | 25 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 272 mm |
| Rear brake disc thickness | 10 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 245/45 R18 96W; 245/40 R19 94W |
| Rim size | 18; 19 |
Basic version information
| Brand | Cupra |
|---|---|
| Model | Formentor |
| Version | Formentor |
| Engine | 1.4 TSI (204 KM) e-Hybrid DSG |
| Engine type | PHEV (Plug-in Hybrid Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2021 r. |
| End of production | 2024 r. |
| Body type | SUV, Crossover |
| Number of seats | 5 |
| Fuel type | Gasoline / Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 205 km/h |
|---|---|
| Acceleration 0-100 km/h | 7.8 s |
| Battery gross capacity | 12.8 kWh |
| Net battery capacity | 10.4 kWh |
| Electric range measurement standard | WLTP |
| All-electric range | 53-59 km |
| Fuel consumption - Combined cycle | 1.2-1.4 l/100 km |
| Energy consumption measurement standard | WLTP |
| Average energy consumption | 14.7-15.7 kWh/100 km |
| Emission standard | Euro 6d |
| CO2 measurement standard | WLTP |
| CO2 emissions | 26-32 g/km |
Engine
| Max electric motor power | 116 KM |
|---|---|
| Electric motor torque | 330 Nm |
| Electric motor position | Między silnikiem spalinowym a skrzynią biegów |
| System power | 204 KM |
| System torque | 350 Nm |
| Engine model / code | DGEA |
| Engine position | Front, Transverse |
| Engine displacement | 1395 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 74.5 mm |
| Piston stroke | 80 mm |
| Compression ratio | 10 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4 l |
| Coolant capacity | 10 l |
Volume and weight
| Fuel tank | 40 l |
|---|---|
| Minimum trunk capacity | 345 l |
| Maximum trunk capacity | 1415 l |
| Curb weight | 1606 kg |
| Gross weight | 2120 kg |
| Roof load | 75 kg |
| Braked trailer load (8% slope start) | 1700 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 80 kg |
Vehicle dimensions
| Length | 4450 mm |
|---|---|
| Width | 1839 mm |
| Width with unfolded mirrors | 1992 mm |
| Height | 1510 mm |
| Wheelbase | 2680 mm |
| Front track | 1585 mm |
| Rear track | 1559 mm |
| Front overhang | 893 mm |
| Rear overhang | 877 mm |
| Turning circle | 11.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Type of automatic gearbox | DSG |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 312 mm |
| Front brake disc thickness | 25 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 272 mm |
| Rear brake disc thickness | 10 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 245/45 R18; 245/40 R19 |
| Rim size | 8J x 18; 8J x 19 |
Basic version information
| Brand | Cupra |
|---|---|
| Model | Formentor |
| Version | Formentor |
| Engine | 2.0 TDI EVO (150 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2021 r. |
| End of production | 2023 r. |
| Body type | SUV, Crossover |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 205 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.3 s |
| Fuel consumption measurement standard | NEDC, WLTP equivalent |
| Fuel consumption - Urban cycle | 5.2-5.3 l/100 km |
| Fuel consumption measurement standard | NEDC, WLTP equivalent |
| Fuel consumption - Extra-urban cycle | 3.7-3.8 l/100 km |
| Fuel consumption - Combined cycle | 4.7-5.1 l/100 km |
| Emission standard | Euro 6d |
| CO2 measurement standard | WLTP |
| CO2 emissions | 122-134 g/km |
Engine
| Engine model / code | DTT |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1968 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 81 mm |
| Piston stroke | 95.5 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.5 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 450 l |
| Curb weight | 1438 kg |
| Gross weight | 2030 kg |
| Braked trailer load (8% slope start) | 1800 kg |
| Braked trailer load (12% slope start) | 1600 kg |
| Trailer load without brakes | 750 kg |
Vehicle dimensions
| Length | 4450 mm |
|---|---|
| Width | 1839 mm |
| Width with unfolded mirrors | 1992 mm |
| Height | 1528 mm |
| Wheelbase | 2680 mm |
| Front track | 1585 mm |
| Rear track | 1559 mm |
| Front overhang | 893 mm |
| Rear overhang | 877 mm |
| Turning circle | 11.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 312 mm |
| Front brake disc thickness | 25 mm |
| Rear brakes | Ventilated disc |
| Rear brake disc/drum diameter | 272 mm |
| Rear brake disc thickness | 10 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 245/45 R18 96W; 245/40 R19 94W |
| Rim size | 8J x 18 ET40; 8J x 19 ET40 |
Basic version information
| Brand | Cupra |
|---|---|
| Model | Formentor |
| Version | Formentor |
| Engine | 2.0 TDI EVO (150 KM) 4Drive DSG |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2021 r. |
| End of production | 2024 r. |
| Body type | SUV, Crossover |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 203 km/h |
|---|---|
| Acceleration 0-100 km/h | 8.6 s |
| Fuel consumption measurement standard | NEDC, WLTP equivalent |
| Fuel consumption - Urban cycle | 5.9 l/100 km |
| Fuel consumption measurement standard | NEDC, WLTP equivalent |
| Fuel consumption - Extra-urban cycle | 4.6-4.7 l/100 km |
| Fuel consumption - Combined cycle | 4.7-5.1 l/100 km |
| Emission standard | Euro 6d |
| CO2 measurement standard | WLTP |
| CO2 emissions | 150-162 g/km |
Engine
| Engine model / code | DTT |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1968 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 81 mm |
| Piston stroke | 95.5 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.5 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 420 l |
| Curb weight | 1548 kg |
| Gross weight | 2140 kg |
| Braked trailer load (8% slope start) | 2000 kg |
| Braked trailer load (12% slope start) | 2000 kg |
| Trailer load without brakes | 750 kg |
Vehicle dimensions
| Length | 4450 mm |
|---|---|
| Width | 1839 mm |
| Width with unfolded mirrors | 1992 mm |
| Height | 1528 mm |
| Wheelbase | 2680 mm |
| Front track | 1585 mm |
| Rear track | 1559 mm |
| Front overhang | 893 mm |
| Rear overhang | 877 mm |
| Turning circle | 11.4 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 7 |
| Type of automatic gearbox | DSG |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 312 mm |
| Front brake disc thickness | 25 mm |
| Rear brakes | Ventilated disc |
| Rear brake disc/drum diameter | 272 mm |
| Rear brake disc thickness | 10 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 245/45 R18 96W; 245/40 R19 94W |
| Rim size | 8J x 18 ET40; 8J x 19 ET40 |
Basic version information
| Brand | Cupra |
|---|---|
| Model | Formentor |
| Version | Formentor |
| Engine | VZ5 2.5 TSI (390 KM) 4Drive DSG |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2021 r. |
| End of production | 2023 r. |
| Body type | SUV, Crossover |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 250 km/h |
|---|---|
| Acceleration 0-100 km/h | 4.2 s |
| Fuel consumption measurement standard | NEDC, WLTP equivalent |
| Fuel consumption - Urban cycle | 12.2 l/100 km |
| Fuel consumption measurement standard | NEDC, WLTP equivalent |
| Fuel consumption - Extra-urban cycle | 7.5 l/100 km |
| Fuel consumption - Combined cycle | 10.1-10.2 l/100 km |
| Emission standard | Euro 6 AP |
| CO2 measurement standard | WLTP |
| CO2 emissions | 230-231 g/km |
Engine
| Engine model / code | DNWB |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 2480 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 5 |
| Cylinder bore | 82.5 mm |
| Piston stroke | 92.8 mm |
| Compression ratio | 8.3 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 7.1 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Minimum trunk capacity | 410 l |
| Maximum trunk capacity | 1465 l |
| Curb weight | 1608 kg |
| Gross weight | 2120 kg |
| Roof load | 75 kg |
Vehicle dimensions
| Length | 4468 mm |
|---|---|
| Width | 1852 mm |
| Height | 1505 mm |
| Wheelbase | 2681 mm |
| Front track | 1587 mm |
| Rear track | 1561 mm |
| Turning circle | 10.7 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 7 |
| Type of automatic gearbox | DSG |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 255/35 R20 |
| Rim size | 8.5J x 20 |
