Specifications Citroen Xsara Picasso (N68, Phase II)

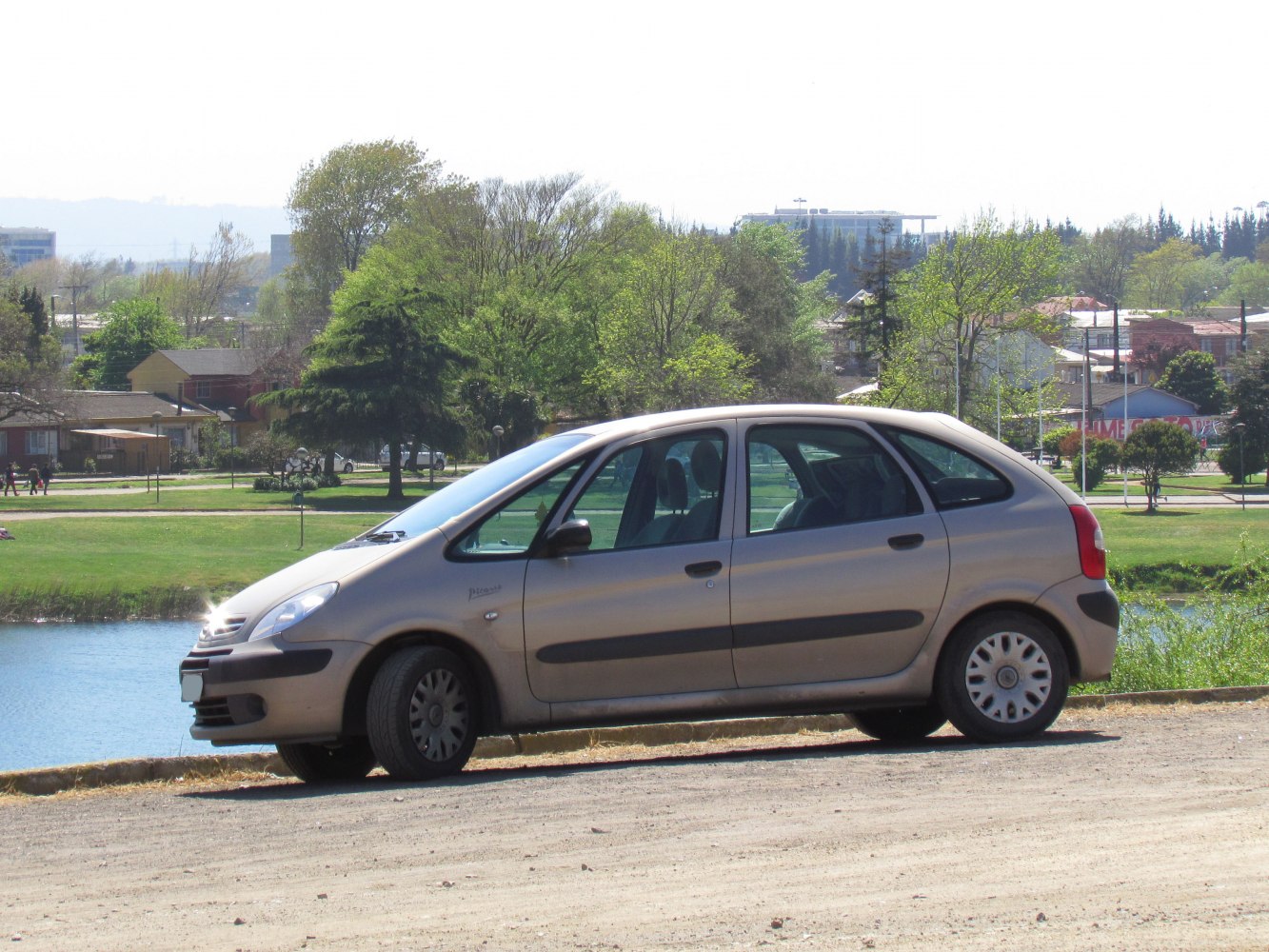

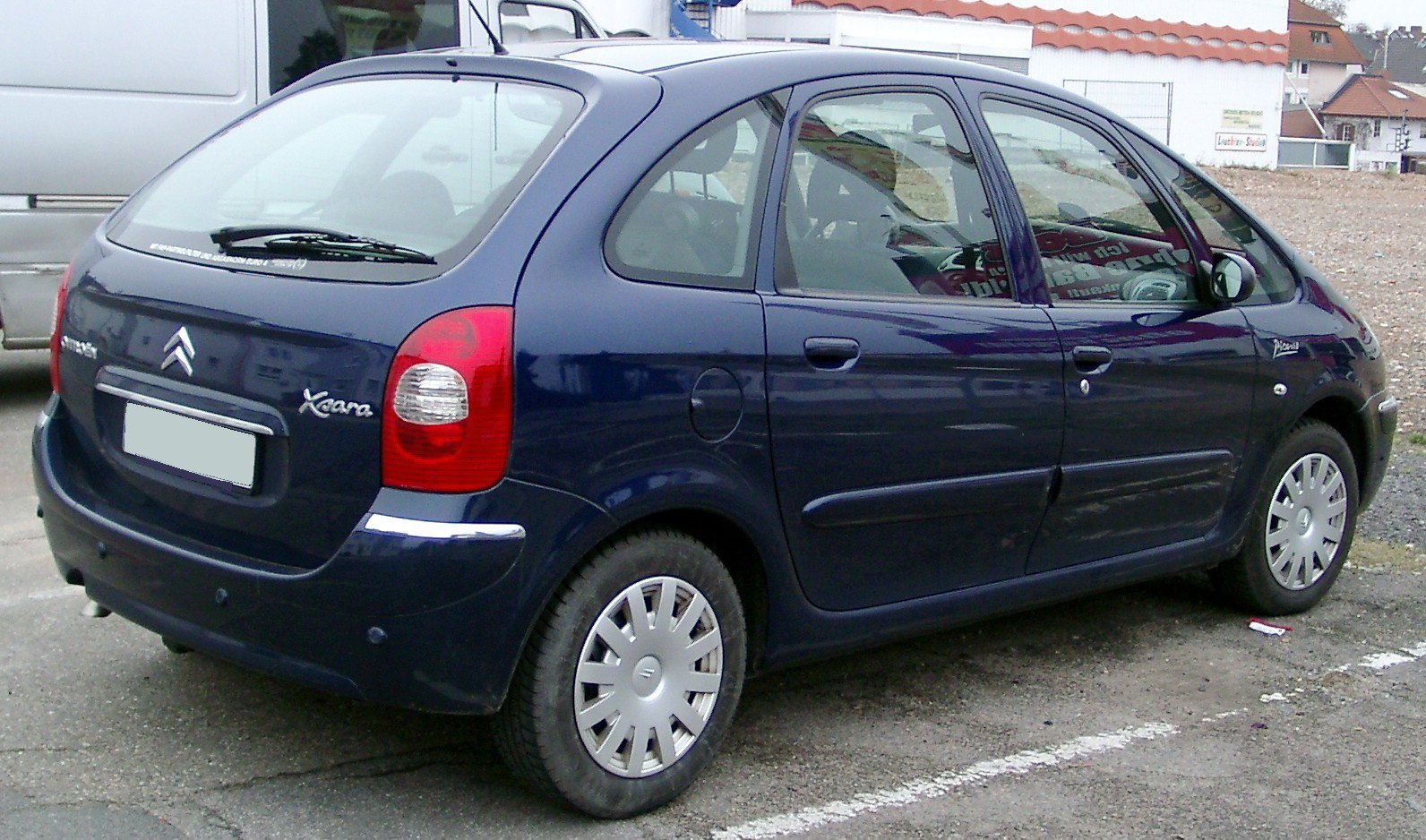

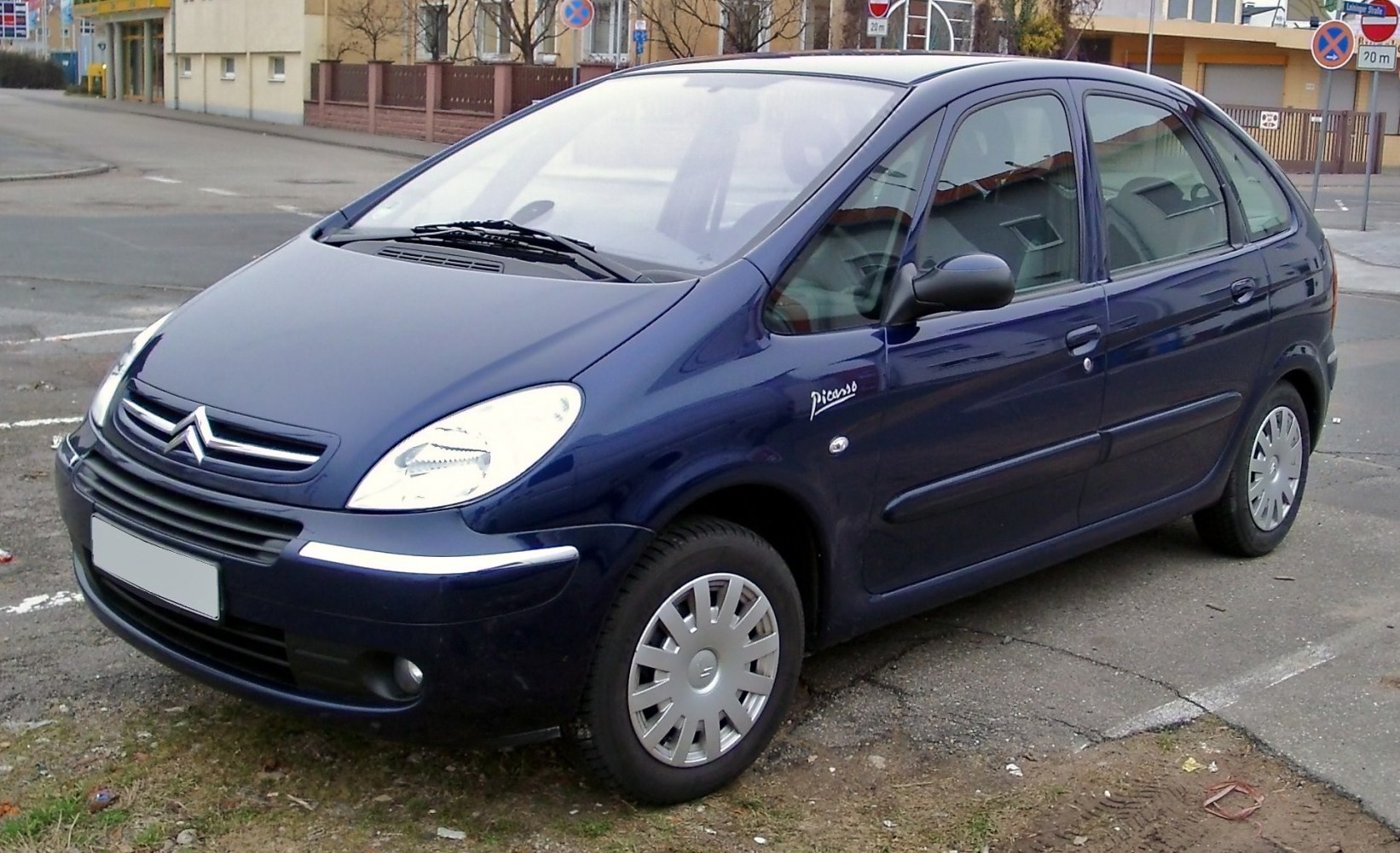

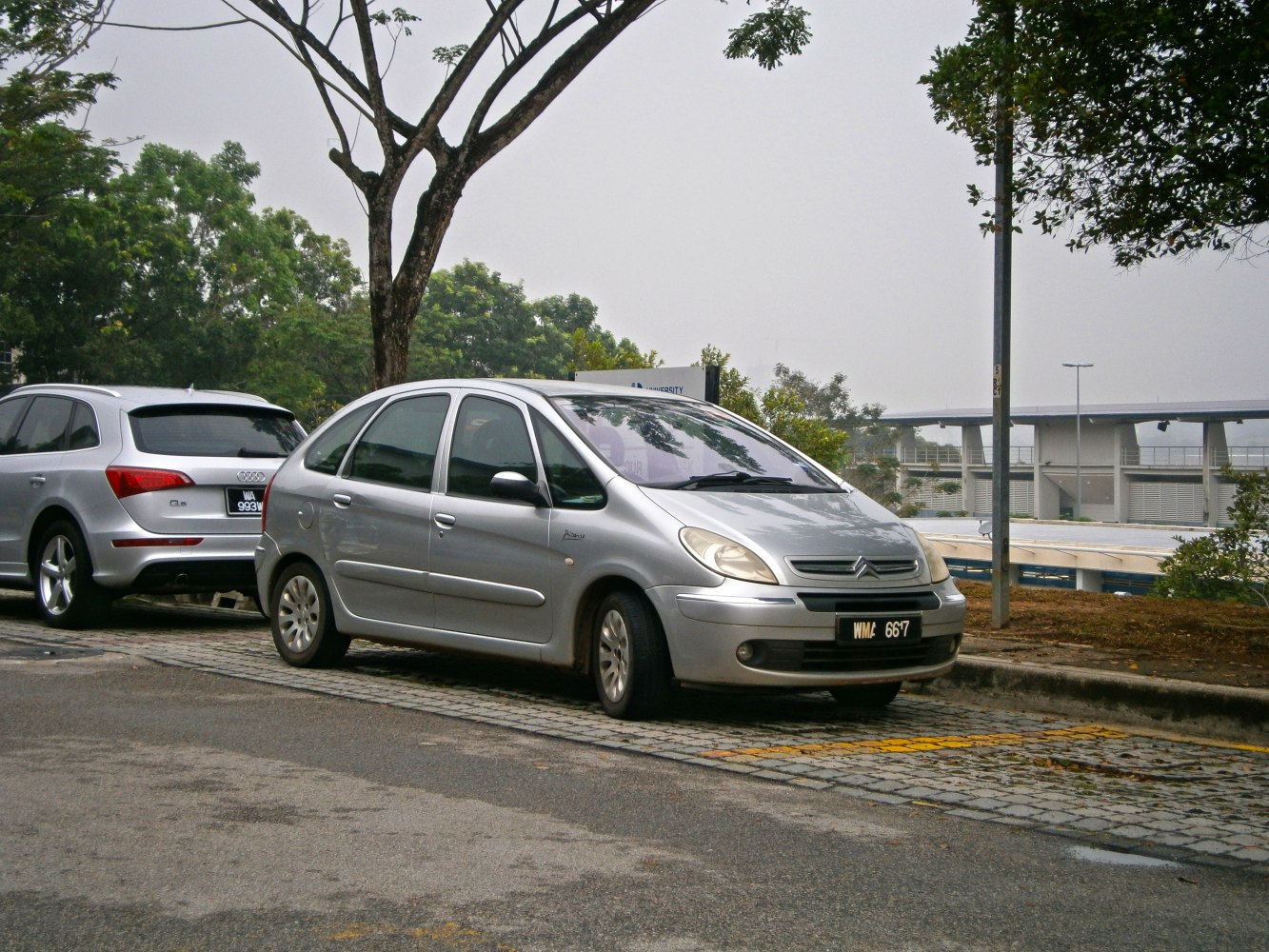

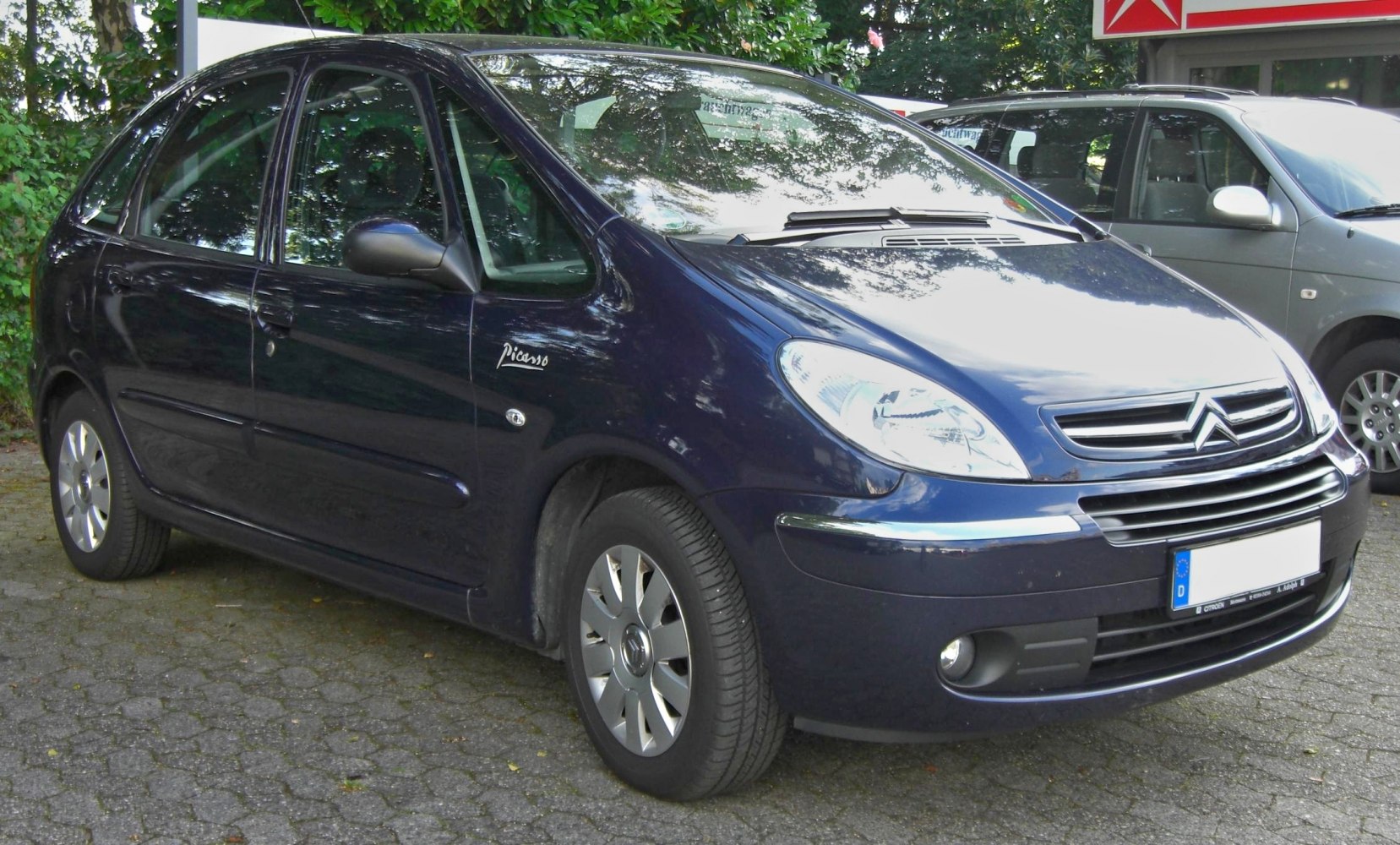

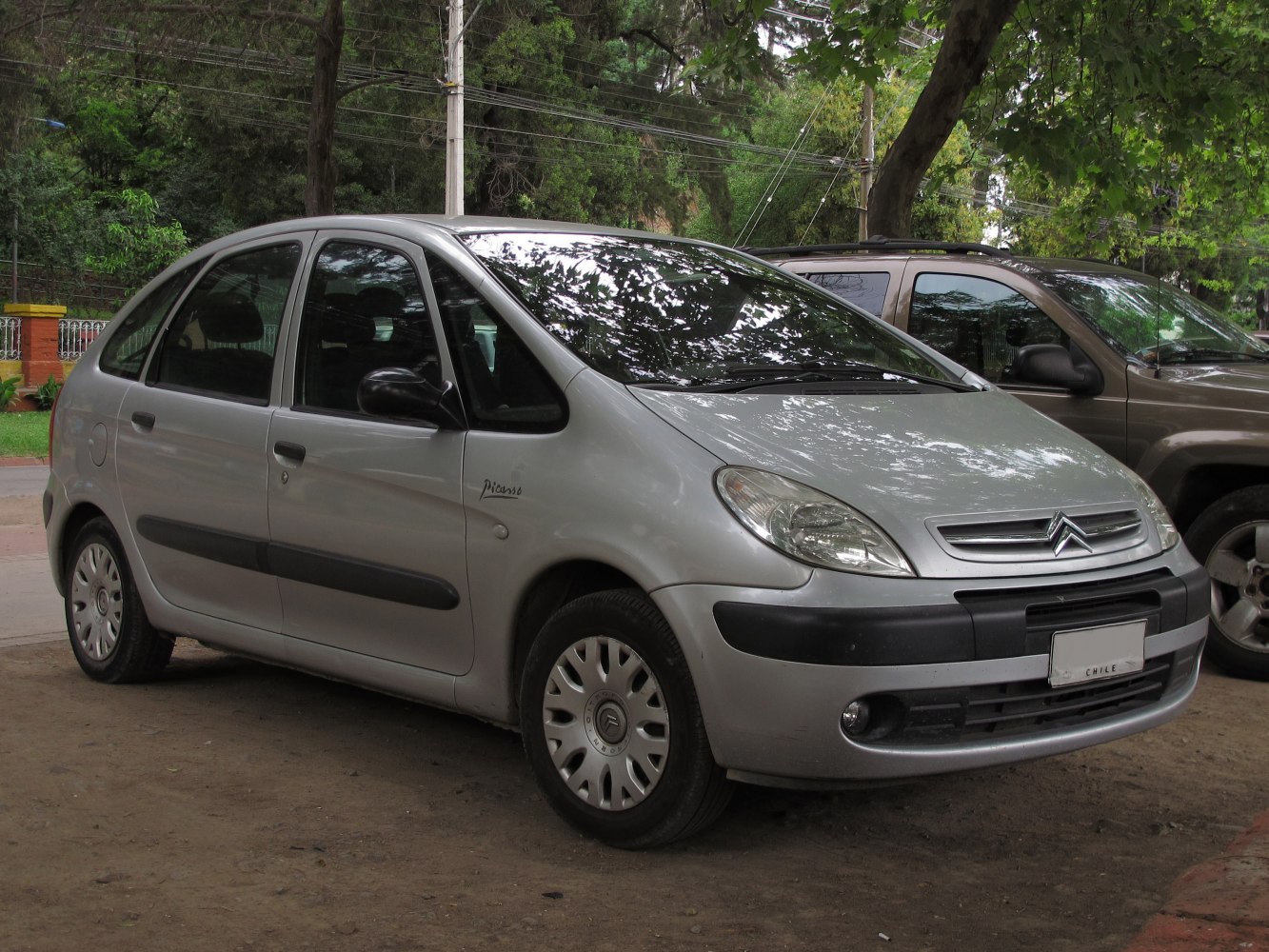

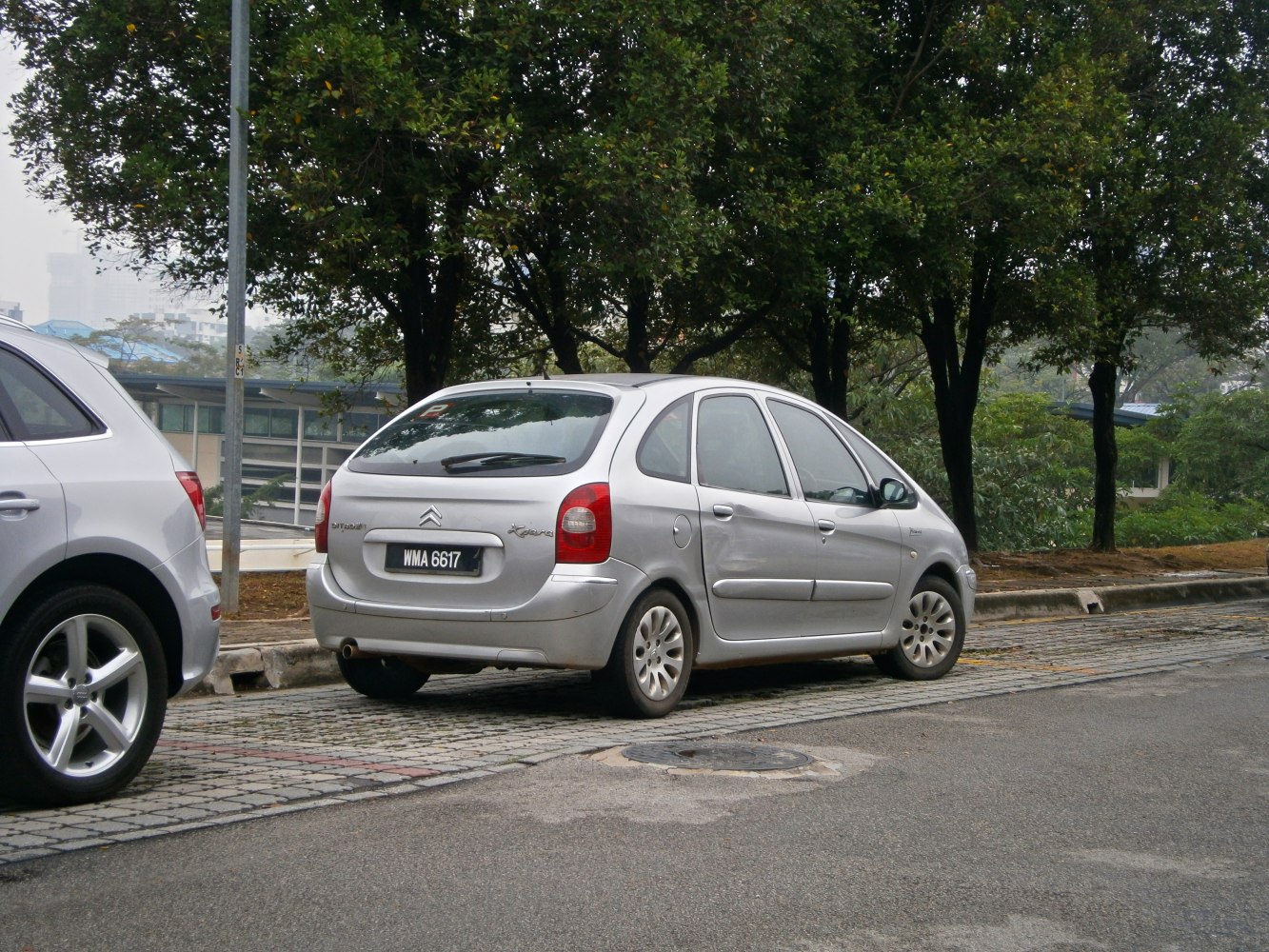

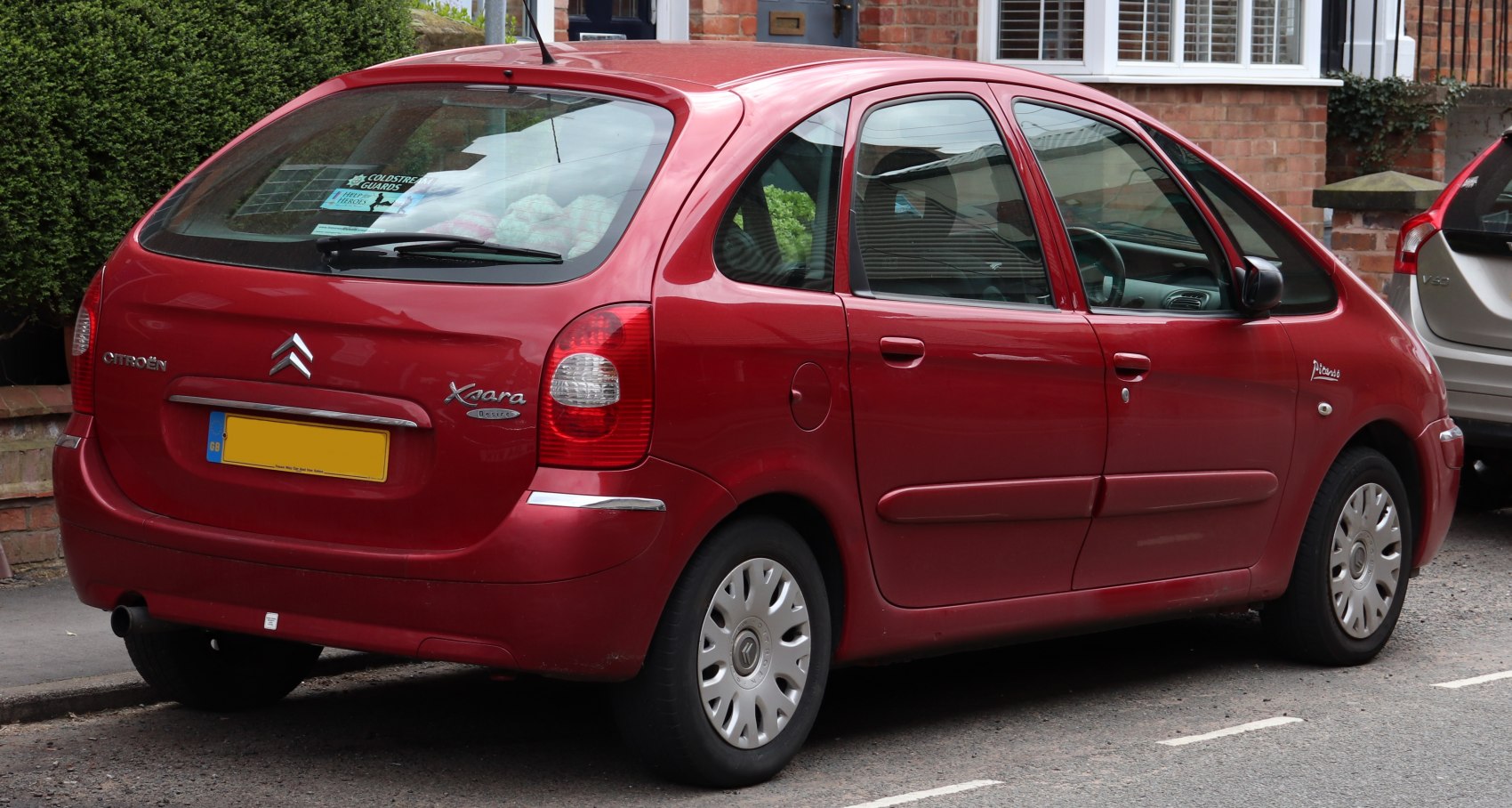

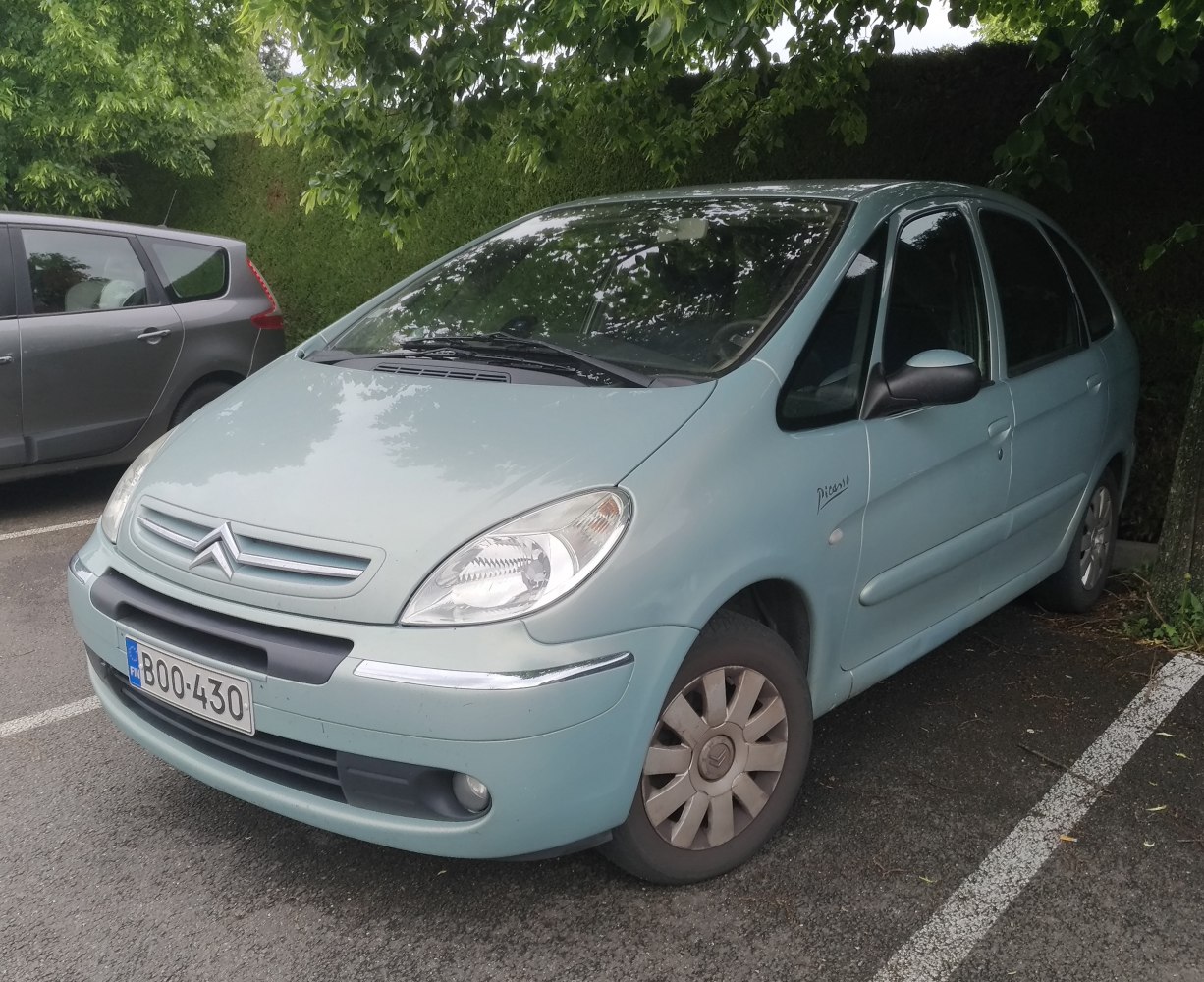

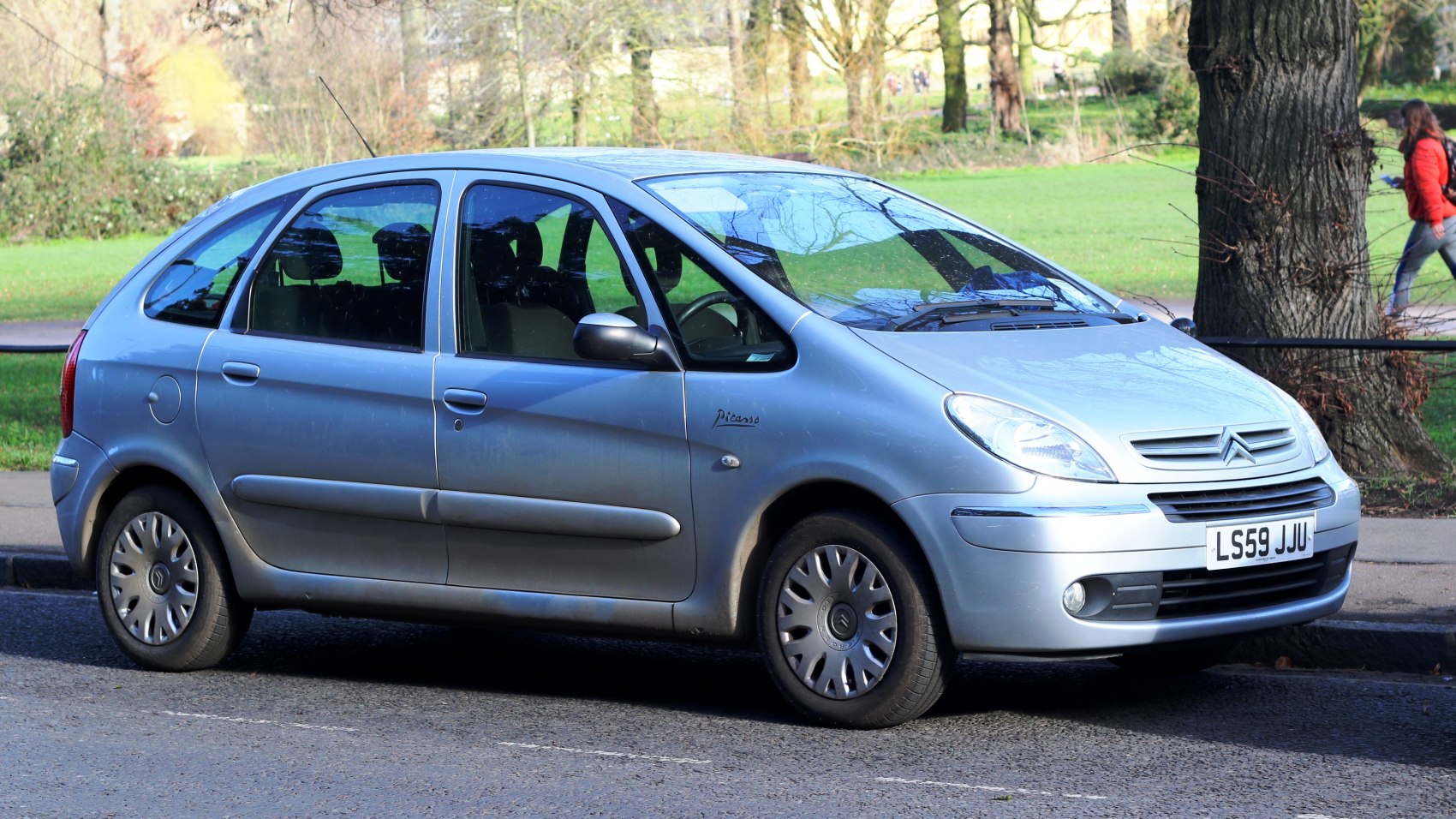

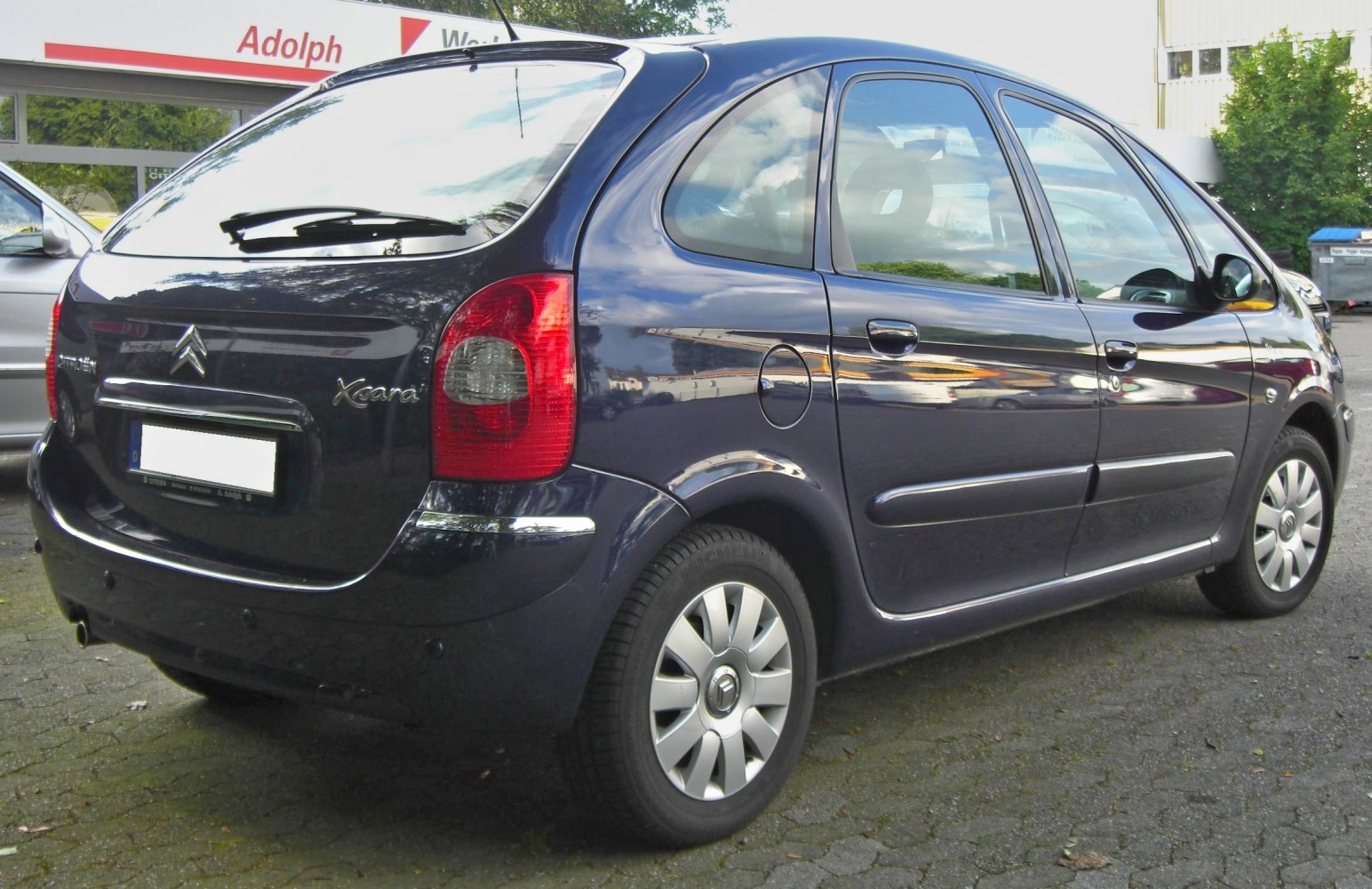

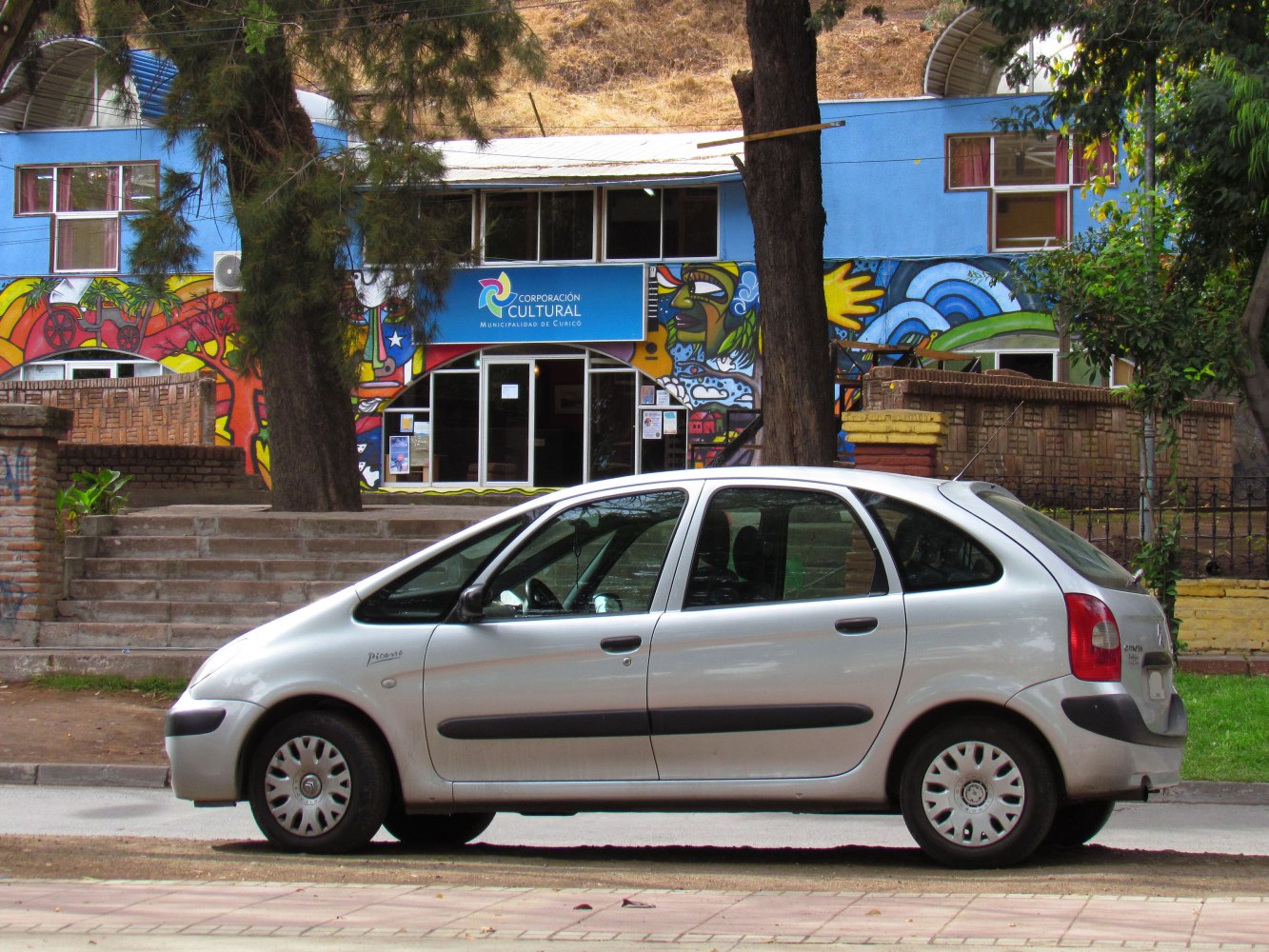

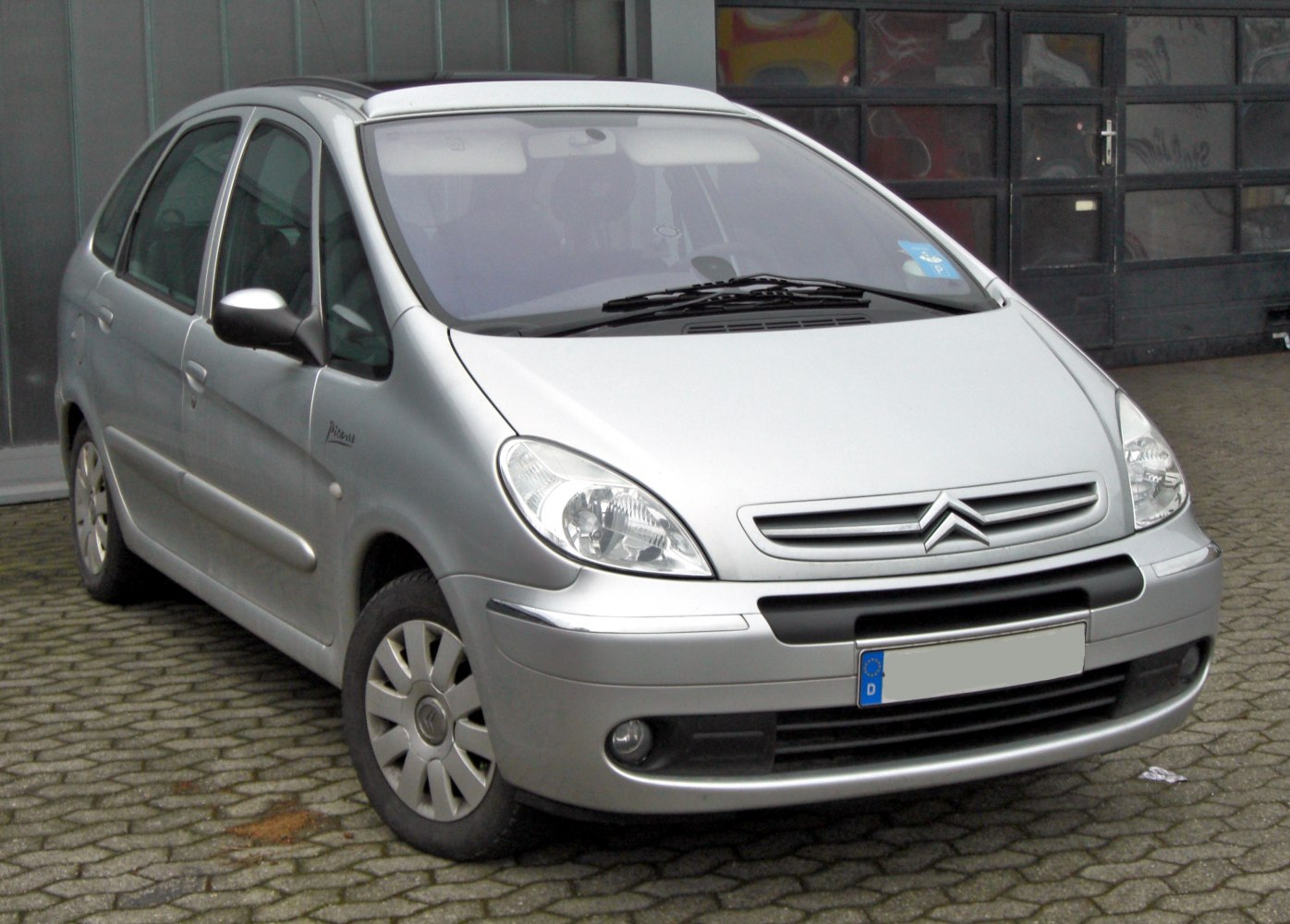

Vehicle photos
Basic information
| Brand | Citroen |
|---|---|
| Model | Xsara |
| Version | Xsara Picasso (N68, Phase II) |
| Engine power | 90 KM – 136 KM |
| Years of production | 2004 r. – 2010 r. |
| Body type | Minivan |
| Number of doors | 5 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Citroen |
|---|---|
| Model | Xsara |
| Version | Xsara Picasso (N68, Phase II) |
| Engine | 1.6 16V (109 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2005 r. |
| End of production | 2010 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 180 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.6 s |
| Fuel consumption - Urban cycle | 9.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.0 l/100 km |
| Fuel consumption - Combined cycle | 7.3 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 172 g/km |
Engine
| Engine model / code | NFUTU5JP4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1587 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 78.5 mm |
| Piston stroke | 82 mm |
| Compression ratio | 9.6 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.5 l |
| Coolant capacity | 6.6 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Minimum trunk capacity | 550 l |
| Maximum trunk capacity | 2128 l |
| Curb weight | 1268 kg |
| Gross weight | 1800 kg |
| Roof load | 80 kg |
| Braked trailer load (8% slope start) | 1300 kg |
| Braked trailer load (12% slope start) | 1200 kg |
| Trailer load without brakes | 670 kg |
| Trailer nose weight | 80 kg |
Vehicle dimensions
| Length | 4276 mm |
|---|---|
| Width | 1751 mm |
| Width with unfolded mirrors | 2000 mm |
| Height | 1637 mm |
| Wheelbase | 2760 mm |
| Front track | 1434 mm |
| Rear track | 1452 mm |
| Front overhang | 838 mm |
| Rear overhang | 678 mm |
| Turning circle | 12 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent suspension, Trailing arms with transverse torsion bars |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 185/65 R15 |
| Rim size | 6J x 15 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | Xsara |
| Version | Xsara Picasso (N68, Phase II) |
| Engine | 1.6 HDi (109 KM) DPF |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2004 r. |
| End of production | 2010 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 183 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.9 s |
| Fuel consumption - Urban cycle | 6.4 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.4 l/100 km |
| Fuel consumption - Combined cycle | 5.1 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 136 g/km |
Engine
| Engine model / code | 9HYDV6TED4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88.3 mm |
| Compression ratio | 18 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.85 l |
| Coolant capacity | 11 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 550 l |
| Maximum trunk capacity | 2128 l |
| Curb weight | 1313 kg |
| Gross weight | 1850 kg |
| Roof load | 80 kg |
| Braked trailer load (8% slope start) | 1300 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 690 kg |
| Trailer nose weight | 80 kg |
Vehicle dimensions
| Length | 4276 mm |
|---|---|
| Width | 1751 mm |
| Width with unfolded mirrors | 2000 mm |
| Height | 1637 mm |
| Wheelbase | 2760 mm |
| Front track | 1434 mm |
| Rear track | 1452 mm |
| Front overhang | 838 mm |
| Rear overhang | 678 mm |
| Turning circle | 12 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent suspension, Trailing arms with transverse torsion bars |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 185/65 R15 |
| Rim size | 6J x 15 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | Xsara |
| Version | Xsara Picasso (N68, Phase II) |
| Engine | 1.6 (95 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2004 r. |
| End of production | 2005 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 171 km/h |
|---|---|
| Acceleration 0-100 km/h | 15 s |
| Fuel consumption - Urban cycle | 10 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.1 l/100 km |
| Fuel consumption - Combined cycle | 7.5 l/100 km |
| Emission standard | Euro 3 |
| CO2 emissions | 178 g/km |
Engine
| Engine model / code | NFVTU5JP/L4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1587 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 78.5 mm |
| Piston stroke | 82 mm |
| Compression ratio | 10.2 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.5 l |
| Coolant capacity | 6.6 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Minimum trunk capacity | 550 l |
| Maximum trunk capacity | 2128 l |
| Curb weight | 1240 kg |
| Gross weight | 1790 kg |
| Roof load | 80 kg |
| Braked trailer load (8% slope start) | 1100 kg |
| Braked trailer load (12% slope start) | 900 kg |
| Trailer load without brakes | 650 kg |
| Trailer nose weight | 80 kg |
Vehicle dimensions
| Length | 4276 mm |
|---|---|
| Width | 1751 mm |
| Width with unfolded mirrors | 2000 mm |
| Height | 1637 mm |
| Wheelbase | 2760 mm |
| Front track | 1434 mm |
| Rear track | 1452 mm |
| Front overhang | 838 mm |
| Rear overhang | 678 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent suspension, Trailing arms with transverse torsion bars |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 185/65 R15 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | Xsara |
| Version | Xsara Picasso (N68, Phase II) |
| Engine | 1.8 16V (116 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2004 r. |
| End of production | 2005 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 190 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.2 s |
| Fuel consumption - Urban cycle | 10.8 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.9 l/100 km |
| Fuel consumption - Combined cycle | 7.7 l/100 km |
| Emission standard | Euro 3 D4 |
| CO2 emissions | 187 g/km |
Engine
| Engine model / code | 6FZEW7J4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1749 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 82.7 mm |
| Piston stroke | 81.4 mm |
| Compression ratio | 10.4 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
| Coolant capacity | 6.5 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Minimum trunk capacity | 550 l |
| Maximum trunk capacity | 2128 l |
| Curb weight | 1245 kg |
| Gross weight | 1795 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 655 kg |
| Trailer nose weight | 80 kg |
Vehicle dimensions
| Length | 4276 mm |
|---|---|
| Width | 1751 mm |
| Width with unfolded mirrors | 2000 mm |
| Height | 1637 mm |
| Wheelbase | 2760 mm |
| Front track | 1434 mm |
| Rear track | 1452 mm |
| Front overhang | 838 mm |
| Rear overhang | 678 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent suspension, Trailing arms with transverse torsion bars |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 185/65 R15 |
| Rim size | 5.5J x 15 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | Xsara |
| Version | Xsara Picasso (N68, Phase II) |
| Engine | 2.0 16V (136 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2004 r. |
| End of production | 2006 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 192 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.5 s |
| Fuel consumption - Urban cycle | 12.6 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.3 l/100 km |
| Fuel consumption - Combined cycle | 8.6 l/100 km |
| Emission standard | Euro 3 |
| CO2 emissions | 205 g/km |
Engine
| Engine model / code | RFNEW10J4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 10.8 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
| Coolant capacity | 7 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Minimum trunk capacity | 550 l |
| Maximum trunk capacity | 2128 l |
| Curb weight | 1326 kg |
| Gross weight | 1832 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 700 kg |
| Trailer nose weight | 80 kg |
Vehicle dimensions
| Length | 4276 mm |
|---|---|
| Width | 1751 mm |
| Width with unfolded mirrors | 2000 mm |
| Height | 1637 mm |
| Wheelbase | 2760 mm |
| Front track | 1434 mm |
| Rear track | 1452 mm |
| Front overhang | 838 mm |
| Rear overhang | 678 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 4 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent suspension, Trailing arms with transverse torsion bars |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 185/65 R15 |
| Rim size | 6J x 15 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | Xsara |
| Version | Xsara Picasso (N68, Phase II) |
| Engine | 2.0 HDi (90 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2004 r. |
| End of production | 2005 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 175 km/h |
|---|---|
| Acceleration 0-100 km/h | 14.5 s |
| Fuel consumption - Urban cycle | 7 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.6 l/100 km |
| Fuel consumption - Combined cycle | 5.5 l/100 km |
| Emission standard | Euro 3 |
| CO2 emissions | 147 g/km |
Engine
| Engine model / code | RHYDW10TD |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger |
| Valvetrain | OHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 18 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 4.5 l |
| Coolant capacity | 5.8 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 550 l |
| Maximum trunk capacity | 2128 l |
| Curb weight | 1300 kg |
| Gross weight | 1850 kg |
| Roof load | 80 kg |
| Braked trailer load (8% slope start) | 1300 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 685 kg |
| Trailer nose weight | 80 kg |
Vehicle dimensions
| Length | 4276 mm |
|---|---|
| Width | 1751 mm |
| Width with unfolded mirrors | 2000 mm |
| Height | 1637 mm |
| Wheelbase | 2760 mm |
| Front track | 1434 mm |
| Rear track | 1452 mm |
| Front overhang | 838 mm |
| Rear overhang | 678 mm |
| Turning circle | 12 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent suspension, Trailing arms with transverse torsion bars |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 185/65 R15 |
| Rim size | 6J x 15 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | Xsara |
| Version | Xsara Picasso (N68, Phase II) |
| Engine | 1.6 HDi 16V (92 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2005 r. |
| End of production | 2010 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 175 km/h |
|---|---|
| Acceleration 0-100 km/h | 13.8 s |
| Fuel consumption - Urban cycle | 6.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.3 l/100 km |
| Fuel consumption - Combined cycle | 5.1 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 135 g/km |
Engine
| Engine model / code | 9HXDV6TED4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88 mm |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.85 l |
| Coolant capacity | 11 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 550 l |
| Maximum trunk capacity | 2128 l |
| Curb weight | 1290 kg |
| Gross weight | 1850 kg |
| Roof load | 80 kg |
| Braked trailer load (8% slope start) | 1300 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 670 kg |
| Trailer nose weight | 80 kg |
Vehicle dimensions
| Length | 4276 mm |
|---|---|
| Width | 1751 mm |
| Width with unfolded mirrors | 2000 mm |
| Height | 1637 mm |
| Wheelbase | 2760 mm |
| Front track | 1434 mm |
| Rear track | 1452 mm |
| Front overhang | 838 mm |
| Rear overhang | 678 mm |
| Turning circle | 12 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent suspension, Trailing arms with transverse torsion bars |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 185/65 R15 |
| Rim size | 6J x 15 |
