Specifications Acura MDX IV

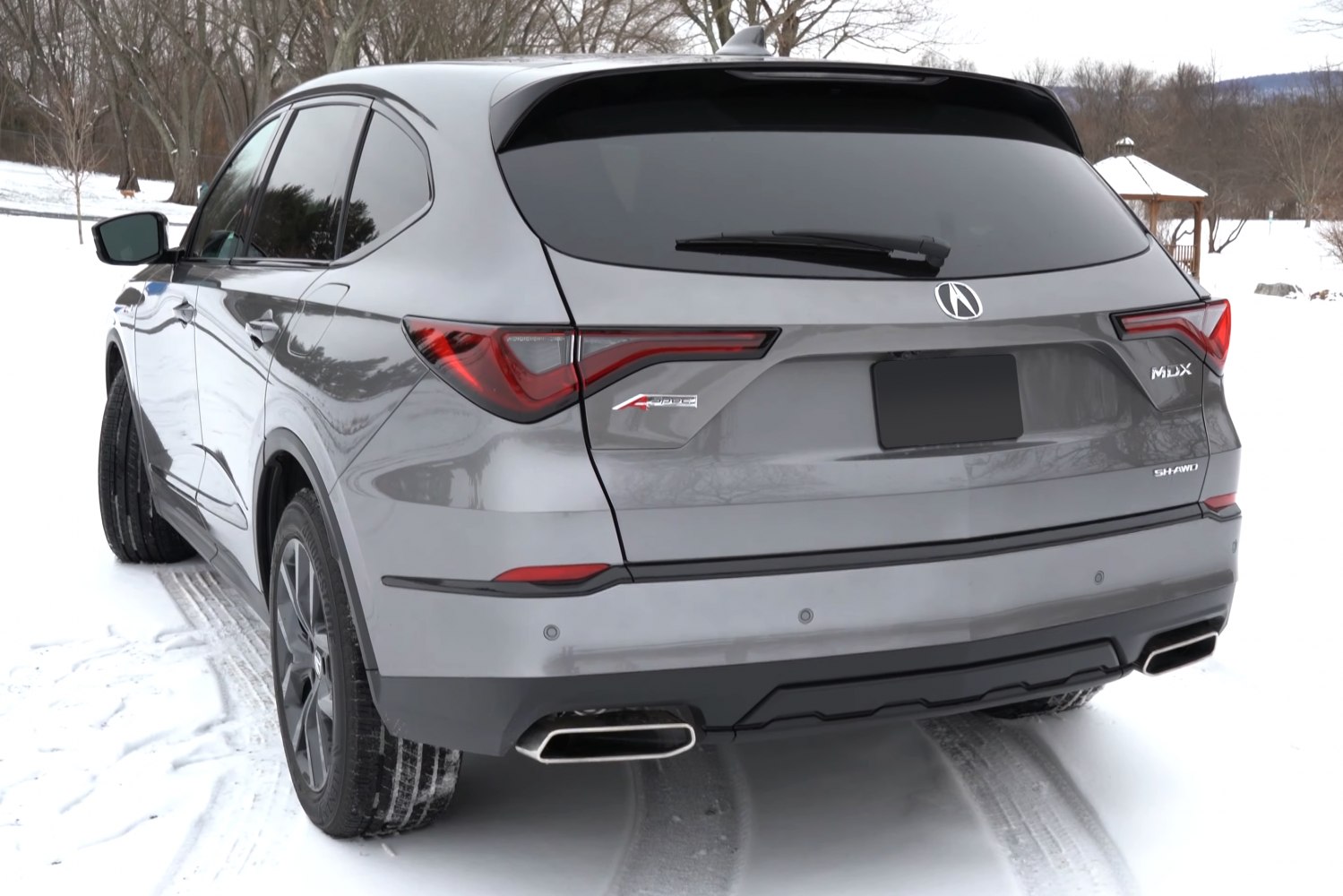

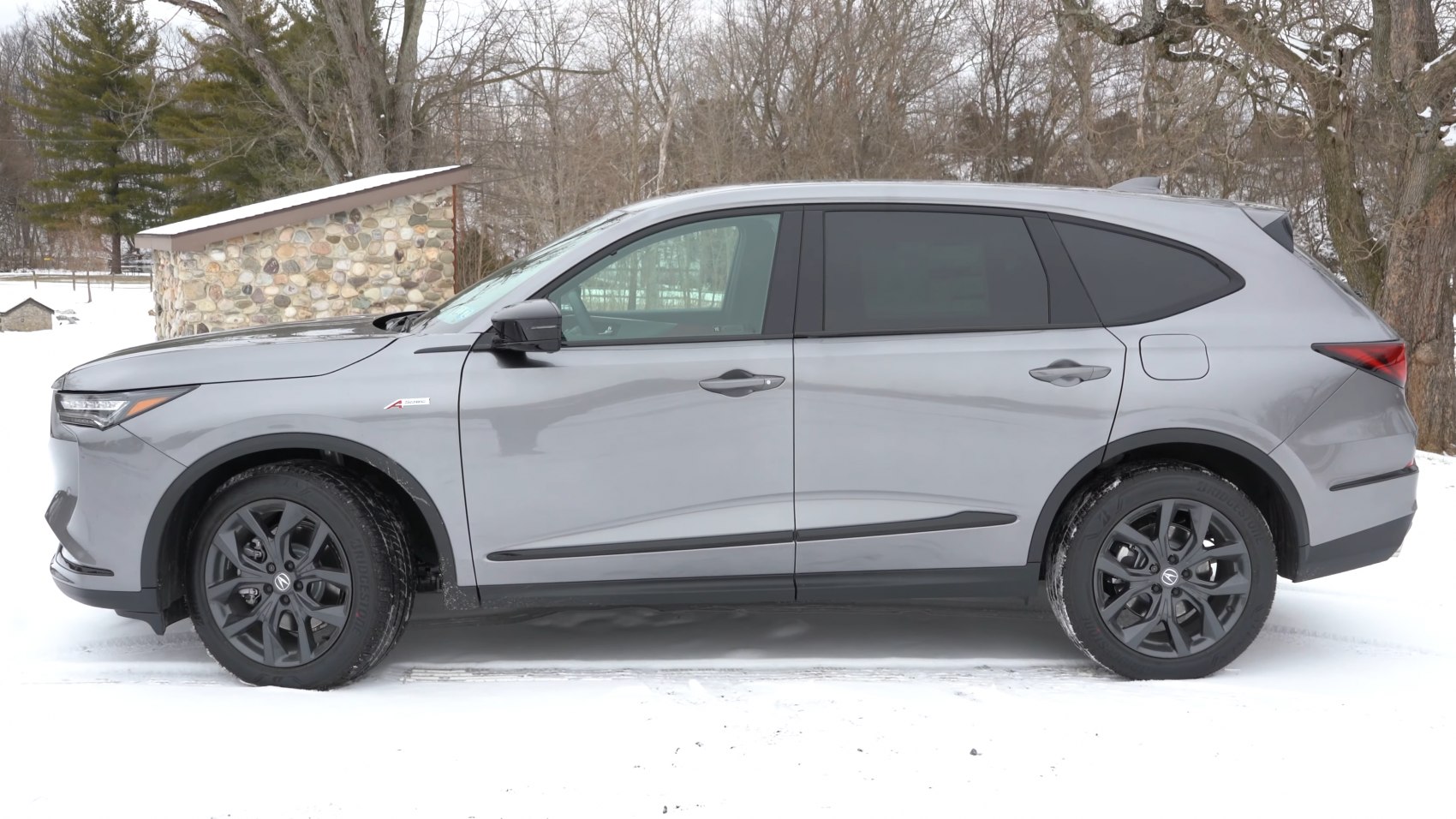

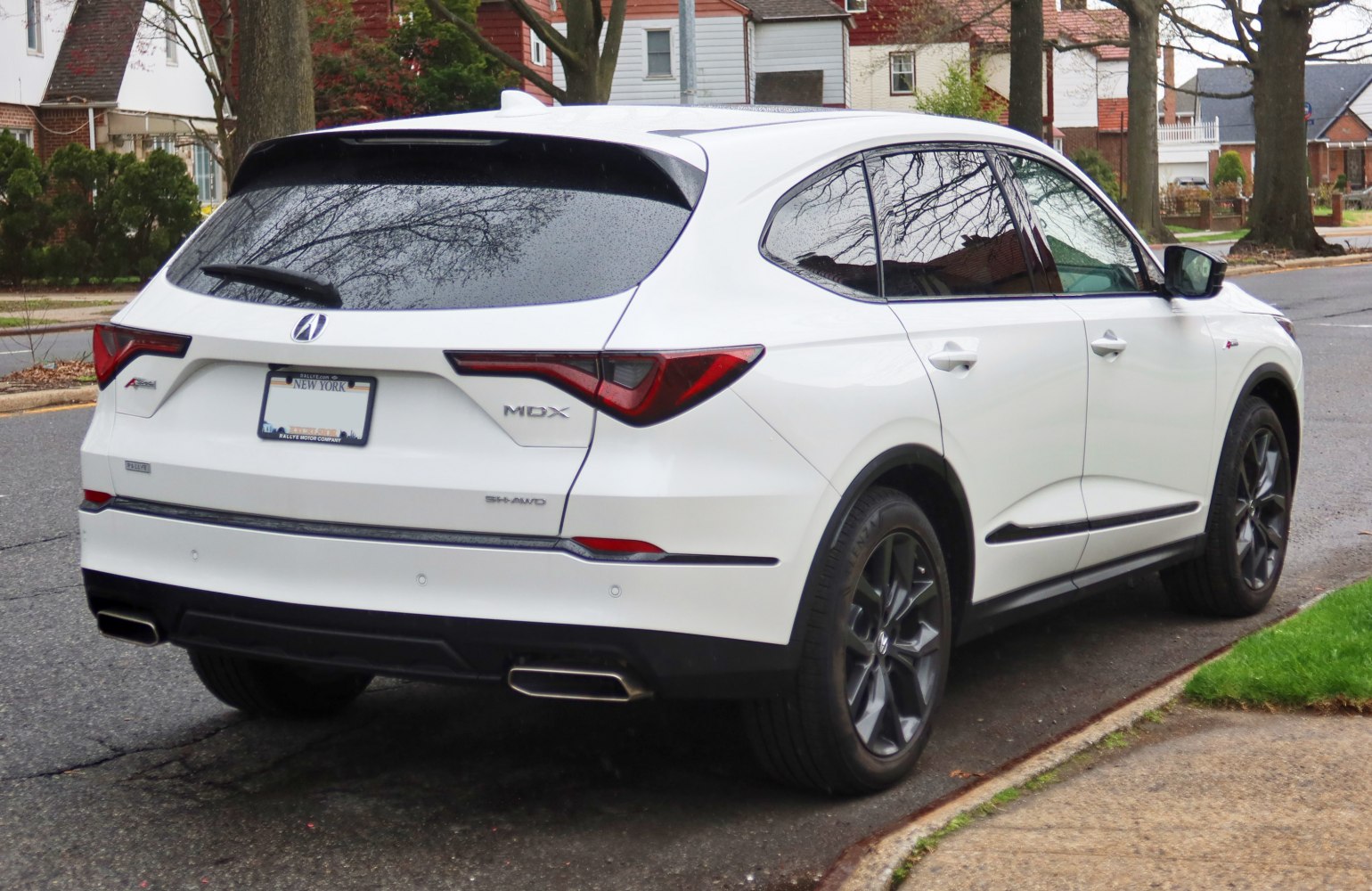

Vehicle photos

Basic information

Brand	Acura
Model	MDX
Version	MDX IV
Engine power	290 KM – 355 KM
Years of production	2021 r. – 2024 r.
Body type	SUV
Number of doors	5
Number of seats	7

Choose engine version, to see Vehicle specifications

Basic version information

Brand	Acura
Model	MDX
Version	MDX IV
Engine	3.5 V6 (290 KM) Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2021 r.
End of production	2024 r.
Body type	SUV
Number of seats	7
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	12.4 l/100 km
Fuel consumption - Extra-urban cycle	9 l/100 km
Fuel consumption - Combined cycle	10.7 l/100 km
Emission standard	ULEV70

Engine

Engine model / code	J35Y5
Engine position	Front, Transverse
Fuel injection system	Direct injection
Engine type	Naturally aspirated engine
Valvetrain	SOHCi-VTEC
Engine configuration	V-shaped
Number of cylinders	6
Compression ratio	11.5
Number of valves per cylinder	4
Engine oil capacity	5.3 l
Coolant capacity	7.55 l

Volume and weight

Fuel tank	70 l
Minimum trunk capacity	462 l
Maximum trunk capacity	2690 l
Curb weight	1937-1949 kg
Braked trailer load (12% slope start)	1588 kg

Vehicle dimensions

Length	5039 mm
Width	1999 mm
Height	1704 mm
Wheelbase	2891 mm
Front track	1720 mm
Rear track	1720 mm
Ground clearance	185 mm
Turning circle	12.3 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	10
Type of automatic gearbox	SportShift
Front suspension	Double wishbone
Rear suspension	Independent multi-link coil spring suspension with stabilizer
Front brakes	Ventilated disc
Front brake disc/drum diameter	350 mm
Rear brakes	Disc
Rear brake disc/drum diameter	330 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	255/55 R19; 255/50 R20
Rim size	8.5J x 19; 9.0J x 20

Basic version information

Brand	Acura
Model	MDX
Version	MDX IV
Engine	3.5 V6 (290 KM) SH-AWD Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2021 r.
End of production	2024 r.
Body type	SUV
Number of seats	7
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	12.4 l/100 km
Fuel consumption - Extra-urban cycle	9.4 l/100 km
Fuel consumption - Combined cycle	11.2 l/100 km
Emission standard	ULEV70

Engine

Engine model / code	J35Y5
Engine position	Front, Transverse
Fuel injection system	Direct injection
Engine type	Naturally aspirated engine
Valvetrain	SOHCi-VTEC
Engine configuration	V-shaped
Number of cylinders	6
Compression ratio	11.5
Number of valves per cylinder	4
Engine oil capacity	5.3 l
Coolant capacity	7.55 l

Volume and weight

Fuel tank	70 l
Minimum trunk capacity	462 l
Maximum trunk capacity	2690 l
Curb weight	2043-2071 kg
Braked trailer load (12% slope start)	2268 kg

Vehicle dimensions

Length	5039 mm
Width	1999 mm
Height	1704 mm
Wheelbase	2891 mm
Front track	1720 mm
Rear track	1720 mm
Ground clearance	185 mm
Turning circle	12.3 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	10
Type of automatic gearbox	SportShift
Front suspension	Double wishbone
Rear suspension	Independent multi-link coil spring suspension with stabilizer
Front brakes	Ventilated disc
Front brake disc/drum diameter	350 mm
Rear brakes	Disc
Rear brake disc/drum diameter	330 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	255/55 R19; 255/50 R20
Rim size	8.5J x 19; 9.0J x 20

Basic version information

Brand	Acura
Model	MDX
Version	MDX IV
Engine	Type S 3.0 V6 (355 KM) SH-AWD SportShift
Engine type	Combustion engine
Number of doors	5
Start of production	2022 r.
End of production	2024 r.
Body type	SUV
Number of seats	7
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	13.8 l/100 km
Fuel consumption - Extra-urban cycle	11.2 l/100 km
Fuel consumption - Combined cycle	12.4 l/100 km
Emission standard	ULEV-70

Engine

Engine model / code	J30AC
Engine position	Front, Transverse
Engine displacement	2997 cm³
Fuel injection system	Direct injection
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	86 mm
Piston stroke	86 mm
Compression ratio	9.8
Number of valves per cylinder	4
Engine oil capacity	5.2 l
Coolant capacity	10.05 l

Volume and weight

Fuel tank	70 l
Curb weight	2150-2172 kg
Braked trailer load (12% slope start)	2268 kg

Vehicle dimensions

Length	5039 mm
Width	1999 mm
Height	1704 mm
Wheelbase	2891 mm
Front track	1720 mm
Rear track	1720 mm
Ground clearance	170-239 mm
Turning circle	12.3 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	10
Type of automatic gearbox	SportShift
Front suspension	Double wishbone, Anti-roll bar
Rear suspension	Independent multi-link coil spring suspension with stabilizer
Front brakes	Ventilated disc
Front brake disc/drum diameter	363 mm
Rear brakes	Disc
Rear brake disc/drum diameter	330 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	275/40 R21
Rim size	9.5J x 21
