Specifications Abarth 500

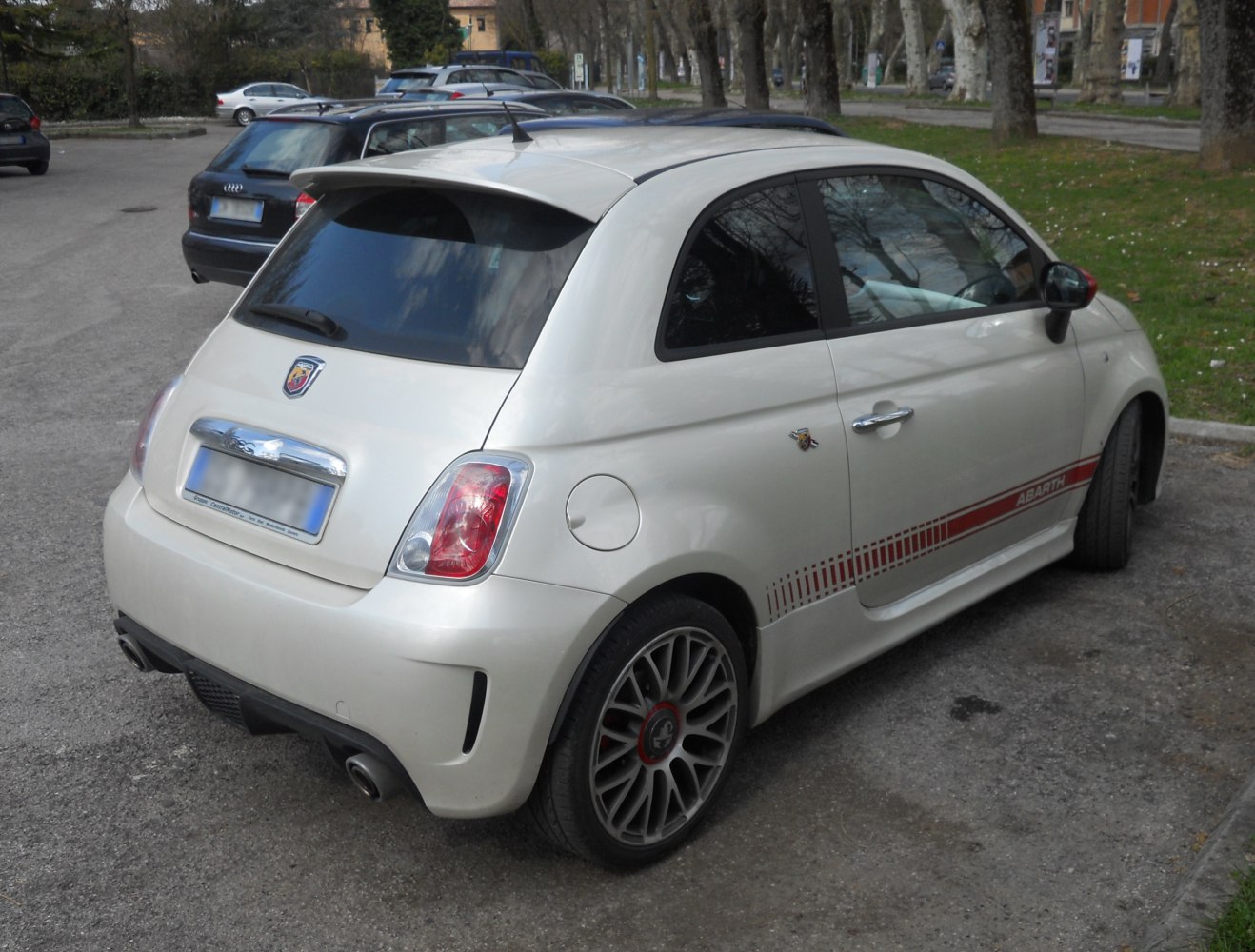

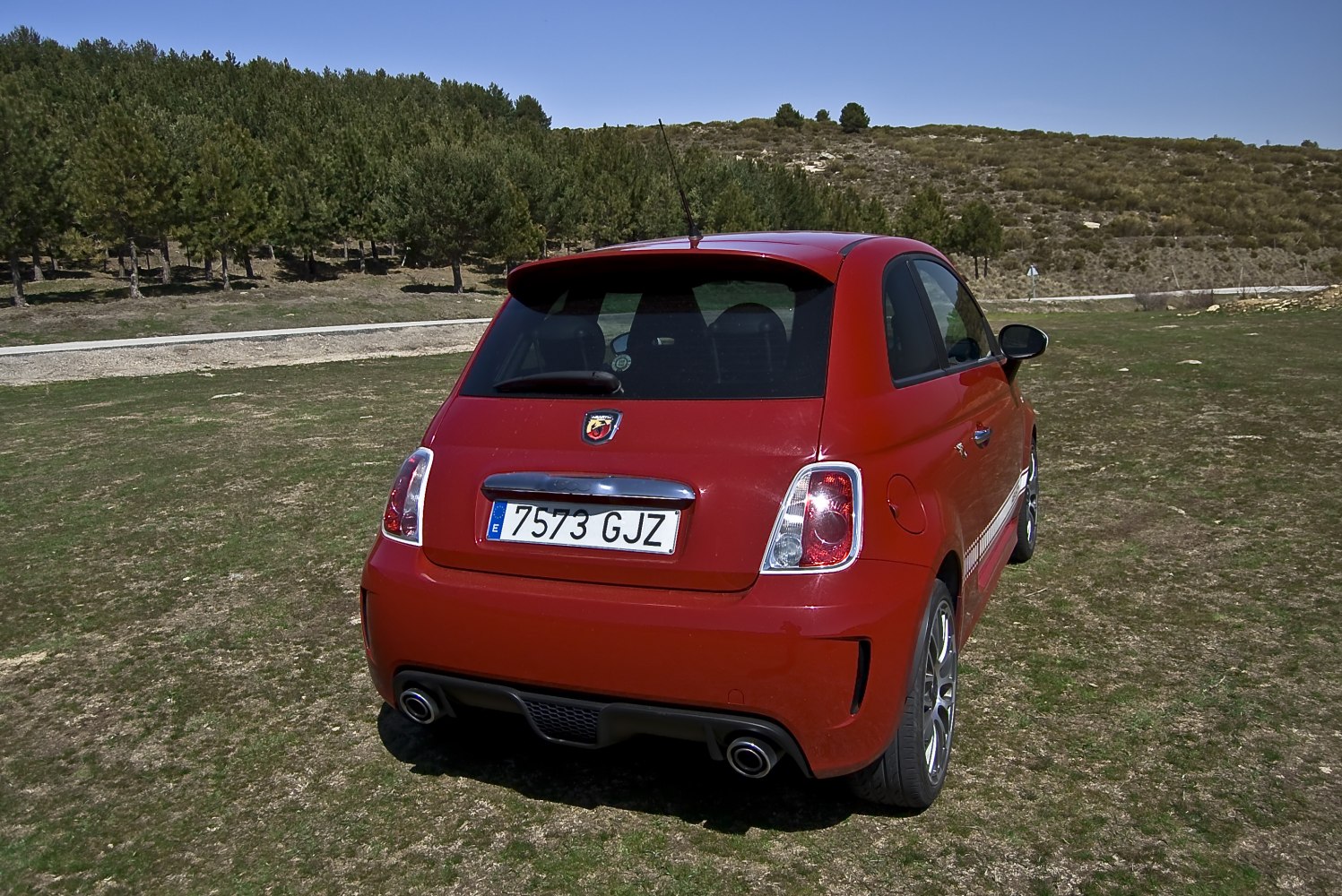

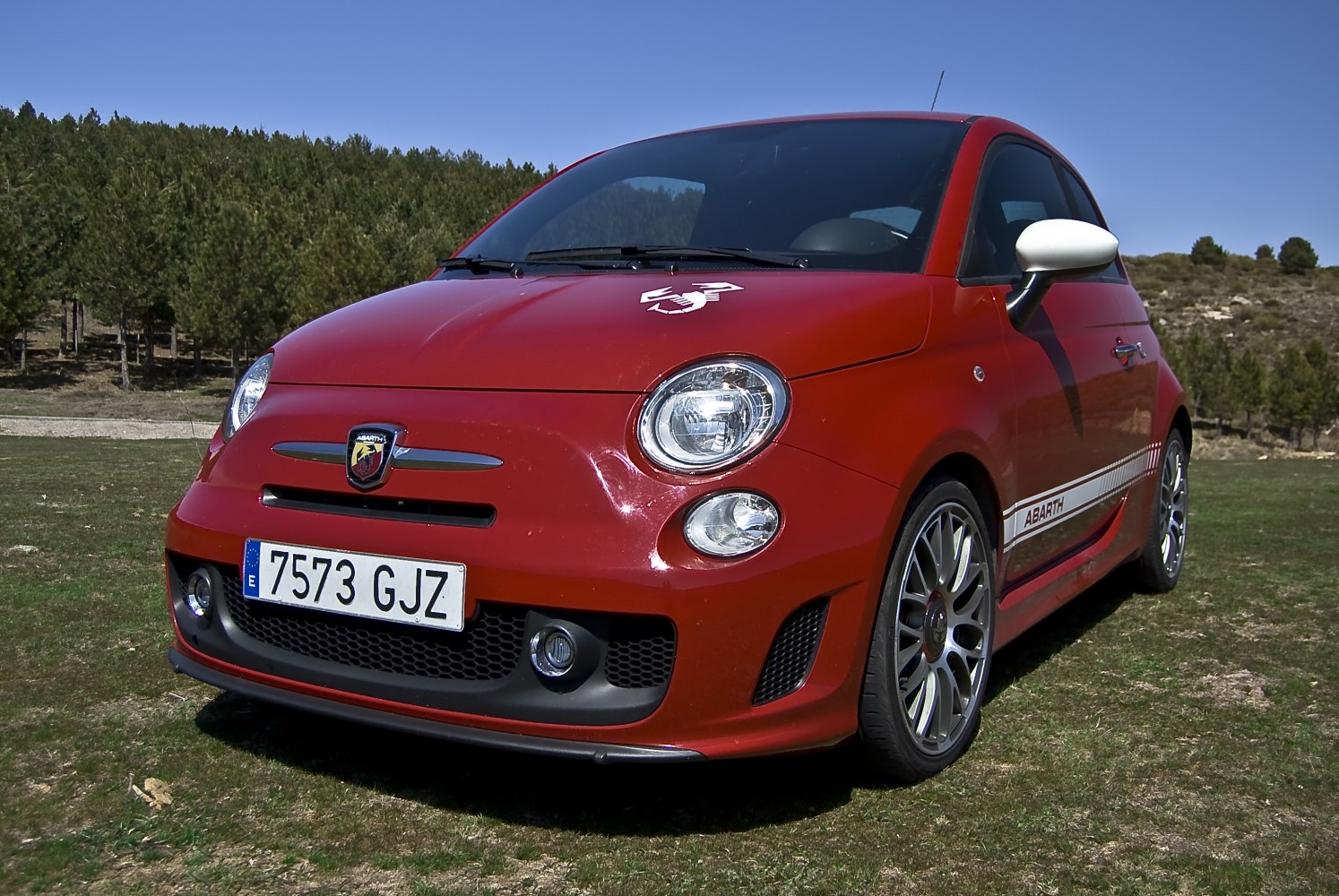

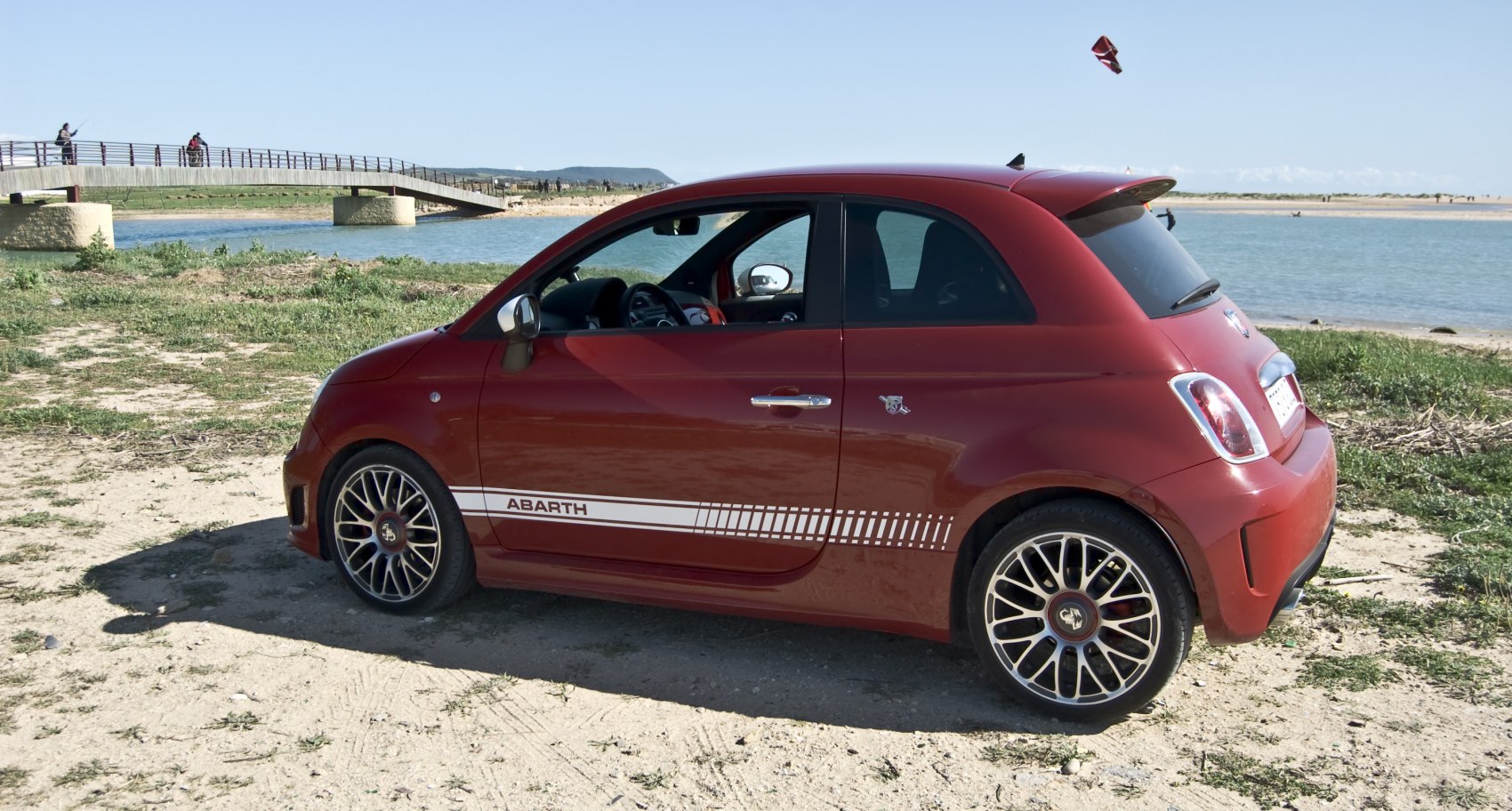

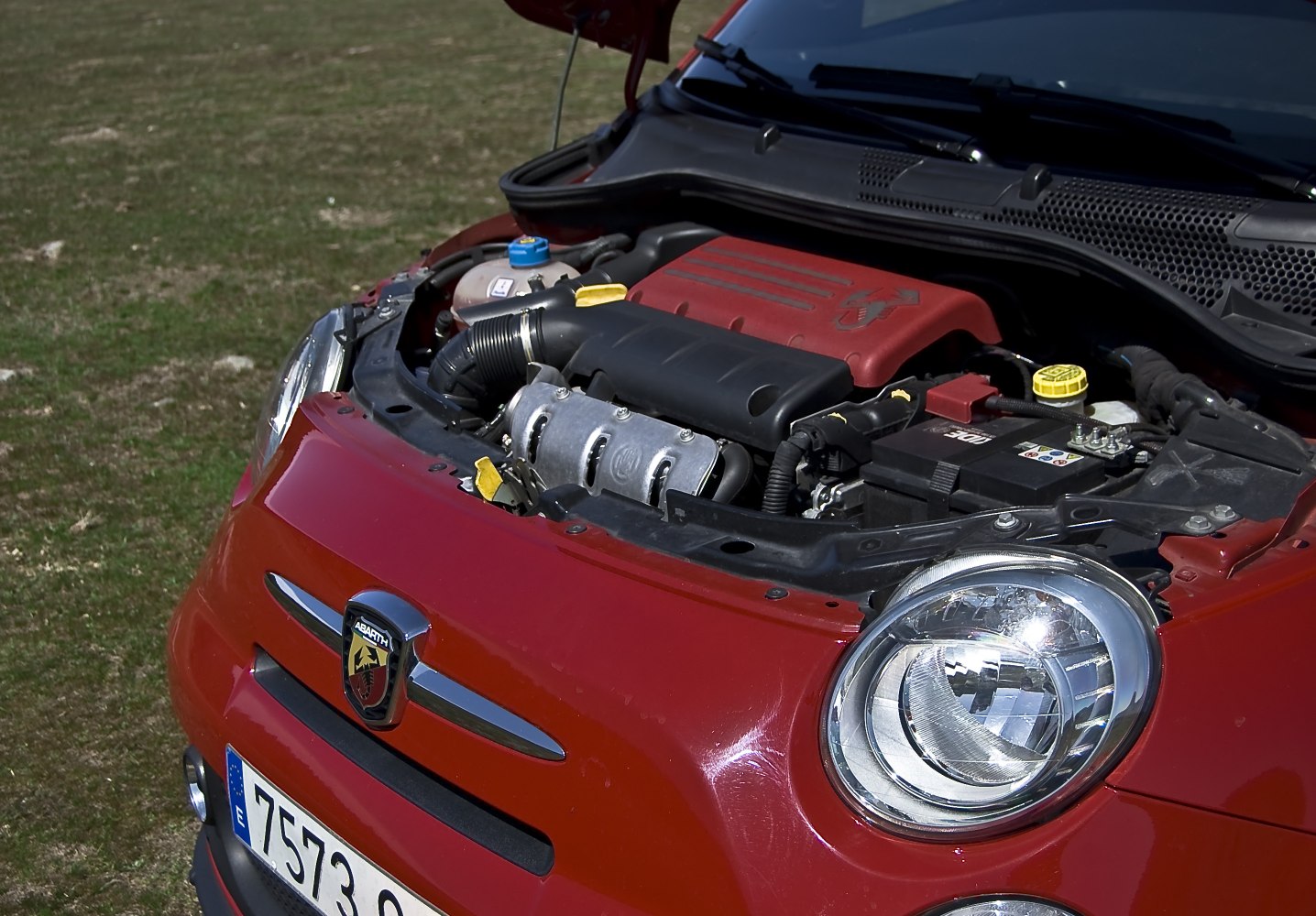

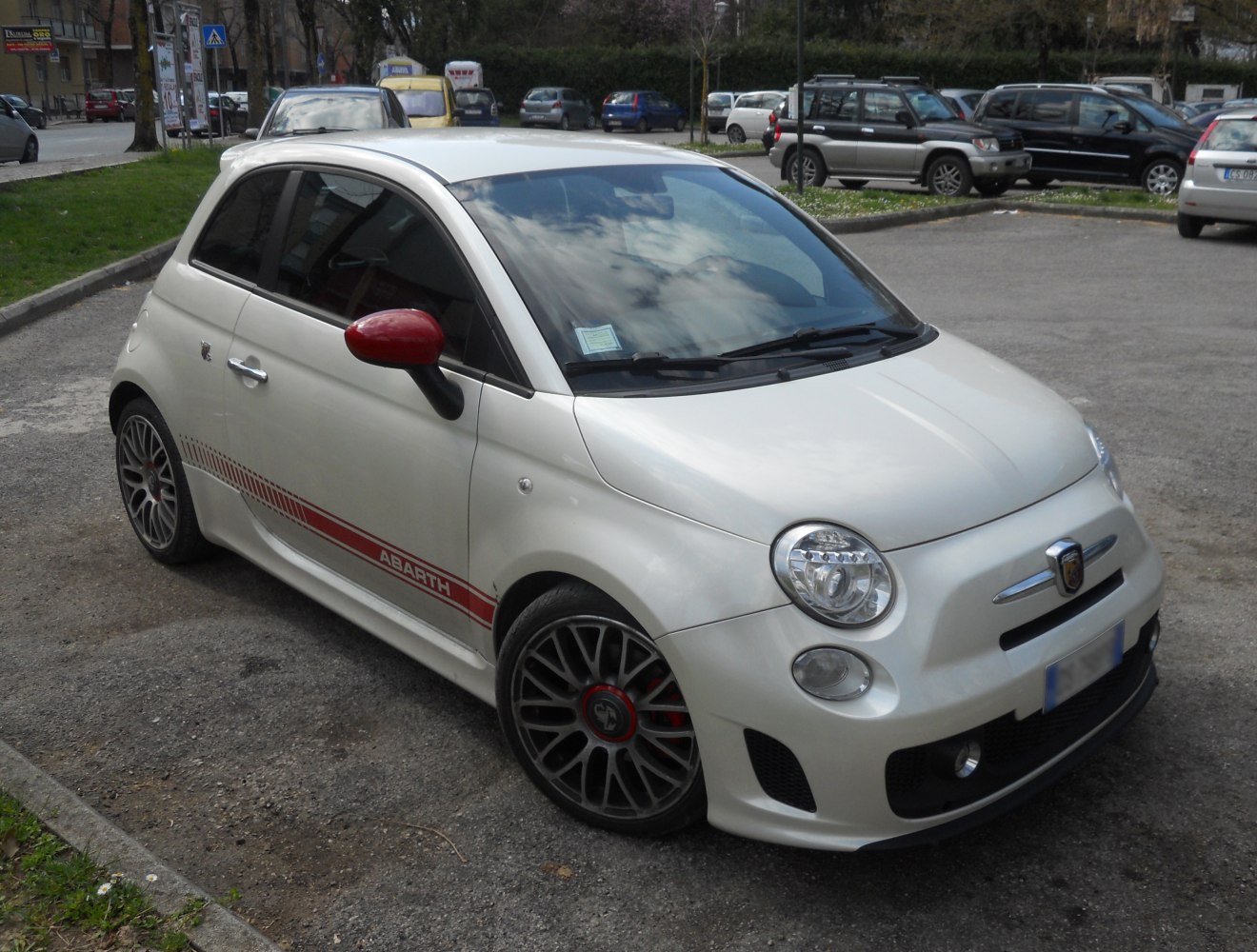

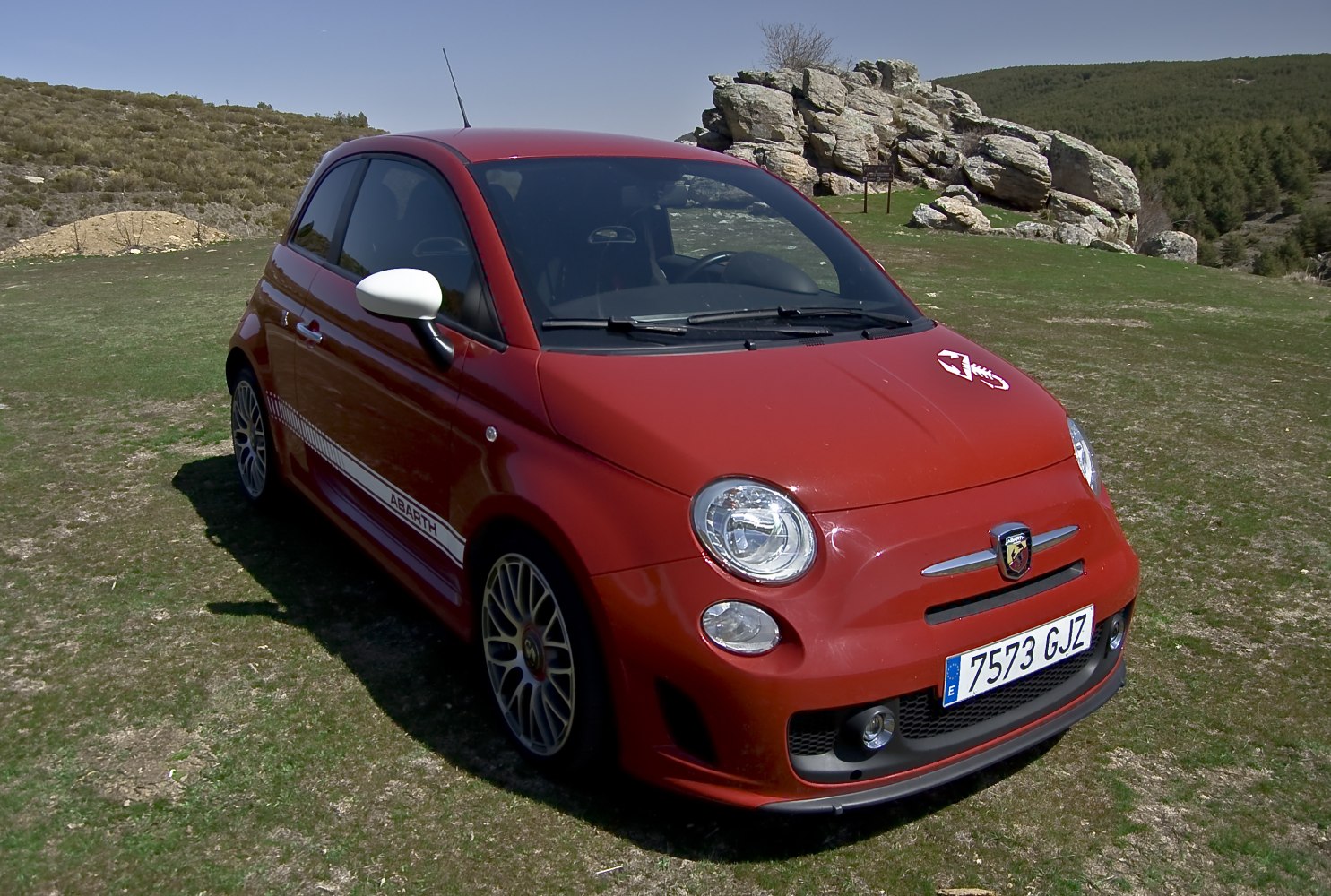

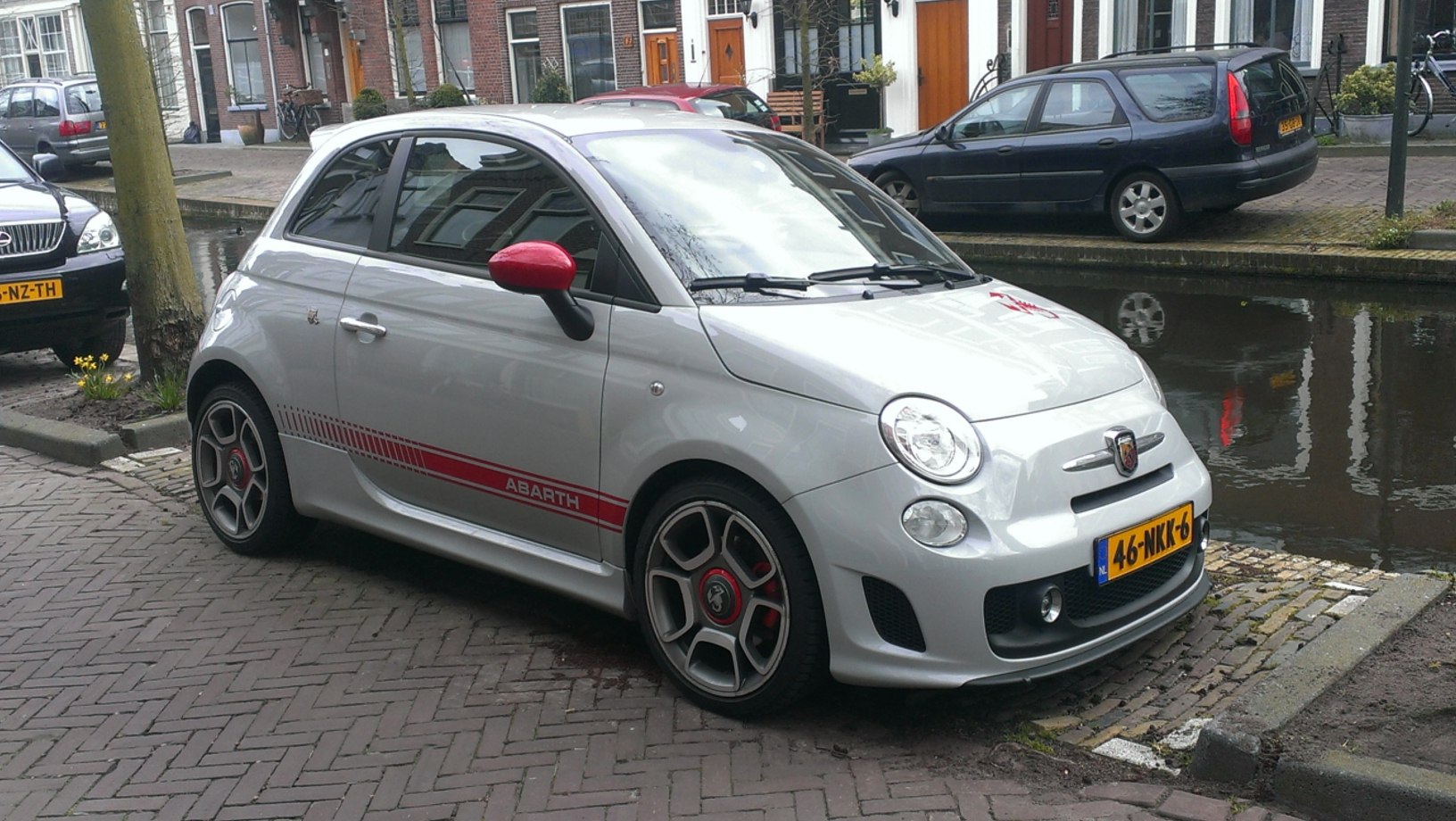

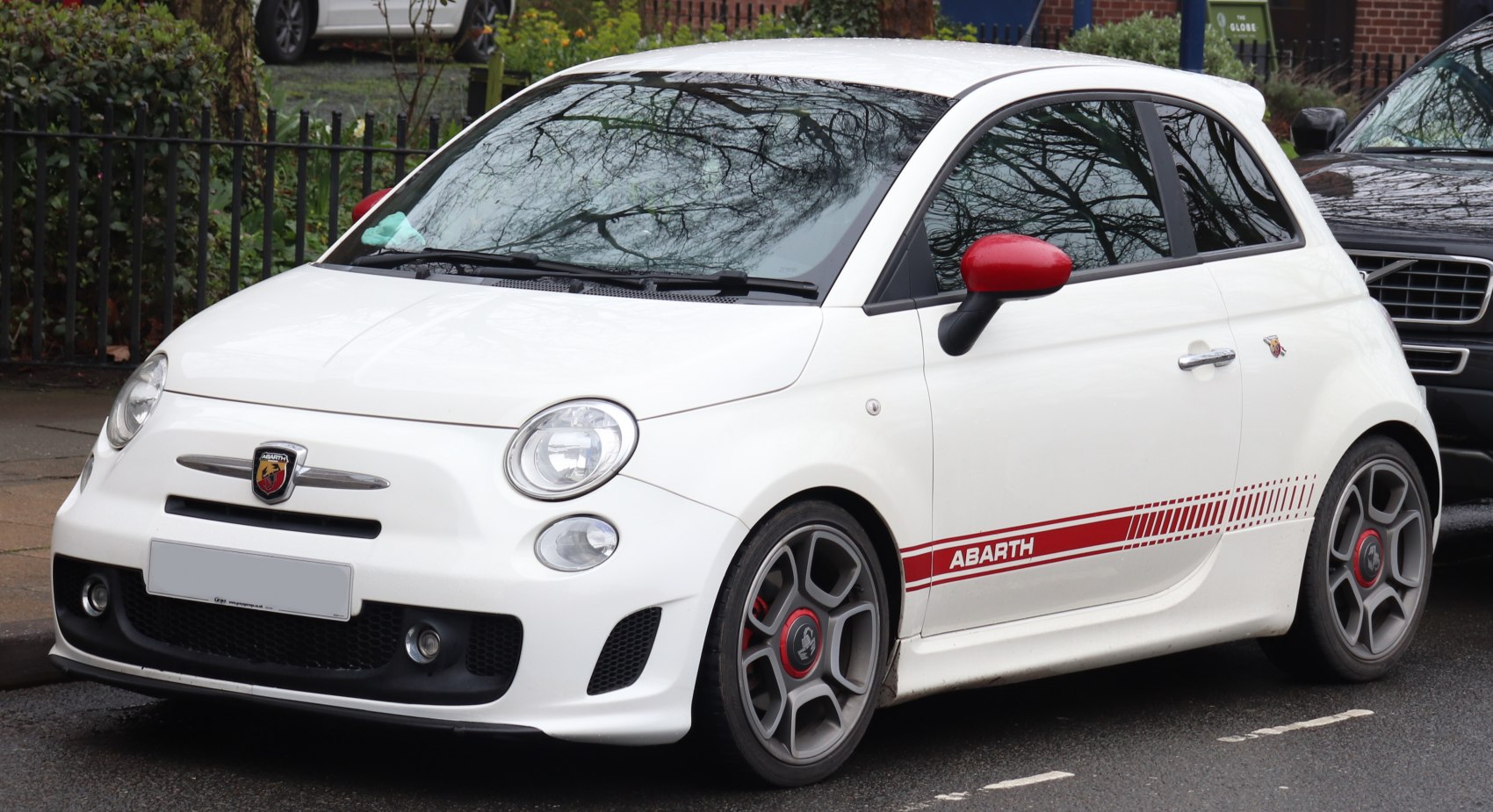

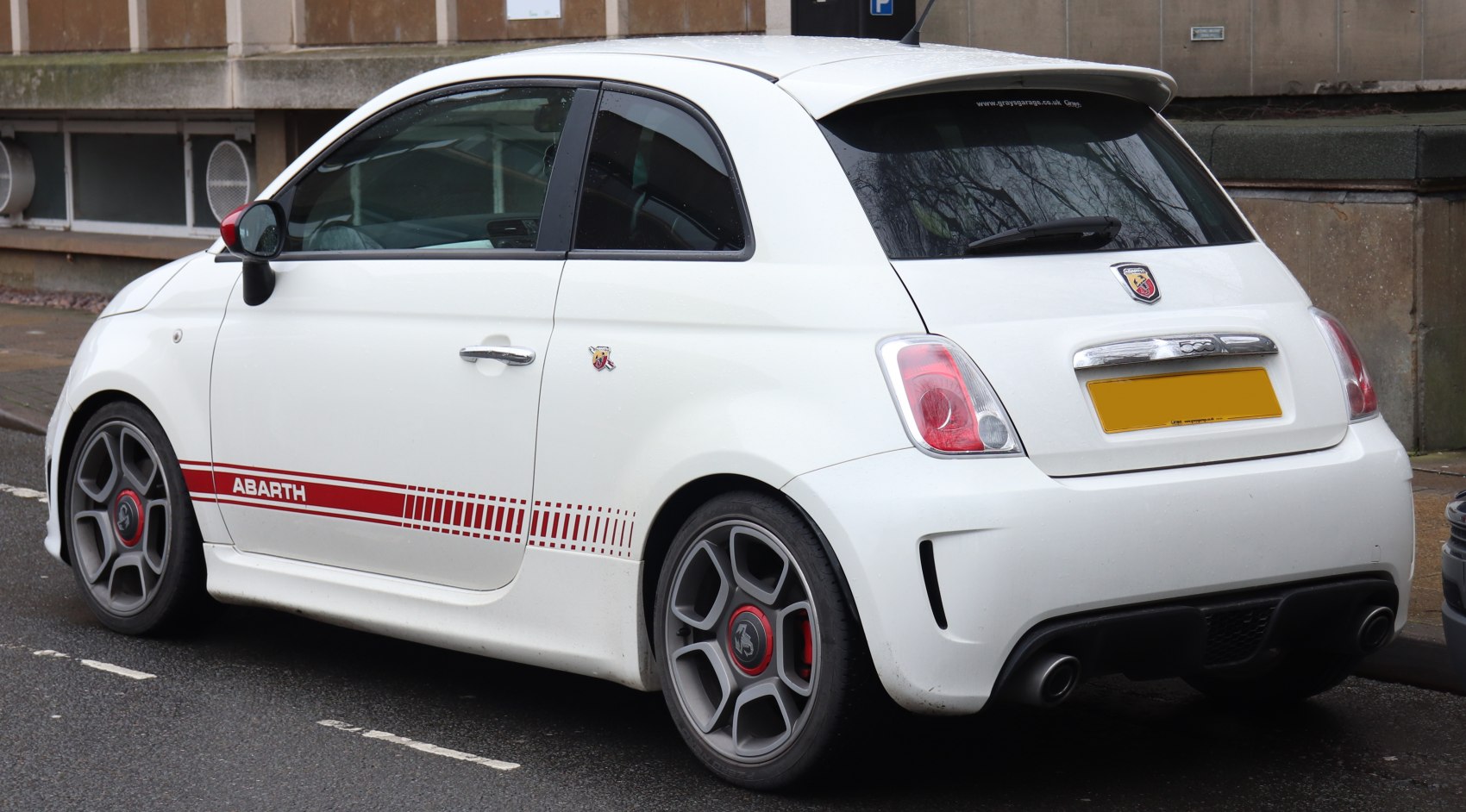

Vehicle photos

Basic information

Brand	Abarth
Model	500
Version	500
Engine power	135 KM – 140 KM
Years of production	2008 r. – 2015 r.
Body type	Hatchback
Number of doors	3
Number of seats	4

Choose engine version, to see Vehicle specifications

Basic version information

Brand	Abarth
Model	500
Version	500
Engine	1.4 T-Jet (135 KM)
Engine type	Combustion engine
Number of doors	3
Start of production	2008 r.
End of production	2014 r.
Body type	Hatchback
Number of seats	4
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	205 km/h
Acceleration 0-100 km/h	7.9 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	8.5 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	5.4 l/100 km
Fuel consumption - Combined cycle	6.5 l/100 km
Emission standard	Euro 5
CO2 measurement standard	NEDC
CO2 emissions	155 g/km

Engine

Engine model / code	312A1000
Engine position	Front, Transverse
Engine displacement	1368 cm³
Fuel injection system	Multi-point injection
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	72 mm
Piston stroke	84 mm
Compression ratio	9.8
Number of valves per cylinder	4
Engine oil capacity	2.9 l
Coolant capacity	5.2 l

Volume and weight

Fuel tank	35 l
Minimum trunk capacity	185 l
Maximum trunk capacity	610 l
Curb weight	1035 kg
Gross weight	1425 kg

Vehicle dimensions

Length	3657 mm
Width	1627 mm
Width with unfolded mirrors	1893 mm
Height	1485 mm
Wheelbase	2300 mm
Front track	1409 mm
Rear track	1402 mm
Front overhang	776 mm
Rear overhang	581 mm

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Front suspension	Independent McPherson type, Anti-roll bar
Rear suspension	Anti-roll bar, Torsion beam
Front brakes	Ventilated disc
Front brake disc/drum diameter	284 mm
Front brake disc thickness	22 mm
Rear brakes	Disc
Rear brake disc/drum diameter	240 mm
Rear brake disc thickness	11 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	195/45 R16
Rim size	6.5J x 16

Basic version information

Brand	Abarth
Model	500
Version	500
Engine	1.4 T-Jet (140 KM) MTA
Engine type	Combustion engine
Number of doors	3
Start of production	2012 r.
End of production	2014 r.
Body type	Hatchback
Number of seats	4
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	205 km/h
Acceleration 0-100 km/h	8.1 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	8.4 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	5.4 l/100 km
Fuel consumption - Combined cycle	6.5 l/100 km
Emission standard	Euro 5
CO2 measurement standard	NEDC
CO2 emissions	151 g/km

Engine

Engine model / code	312A3000
Engine position	Front, Transverse
Engine displacement	1368 cm³
Fuel injection system	Multi-point injection
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	72 mm
Piston stroke	84 mm
Number of valves per cylinder	4
Engine oil capacity	2.9 l
Coolant capacity	5.2 l

Volume and weight

Fuel tank	35 l
Minimum trunk capacity	185 l
Maximum trunk capacity	610 l
Curb weight	1045 kg
Gross weight	1435 kg

Vehicle dimensions

Length	3657 mm
Width	1627 mm
Width with unfolded mirrors	1893 mm
Height	1485 mm
Wheelbase	2300 mm
Front track	1409 mm
Rear track	1402 mm
Front overhang	776 mm
Rear overhang	581 mm

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Type of automatic gearbox	MTA
Front suspension	Independent McPherson type, Anti-roll bar
Rear suspension	Anti-roll bar, Torsion beam
Front brakes	Ventilated disc
Front brake disc/drum diameter	284 mm
Front brake disc thickness	22 mm
Rear brakes	Disc
Rear brake disc/drum diameter	240 mm
Rear brake disc thickness	11 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	195/45 R16
Rim size	6.5J x 16

Basic version information

Brand	Abarth
Model	500
Version	500
Engine	1.4 T-Jet (135 KM)
Engine type	Combustion engine
Number of doors	3
Start of production	2014 r.
End of production	2015 r.
Body type	Hatchback
Number of seats	4
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	205 km/h
Acceleration 0-100 km/h	7.9 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	8.5 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	5.4 l/100 km
Fuel consumption - Combined cycle	6.5 l/100 km
Emission standard	Euro 6
CO2 measurement standard	NEDC
CO2 emissions	155 g/km

Engine

Engine model / code	312A1000
Engine position	Front, Transverse
Engine displacement	1368 cm³
Fuel injection system	Multi-point injection
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	72 mm
Piston stroke	84 mm
Compression ratio	9.8
Number of valves per cylinder	4
Engine oil capacity	2.9 l
Coolant capacity	5.2 l

Volume and weight

Fuel tank	35 l
Minimum trunk capacity	185 l
Maximum trunk capacity	610 l
Curb weight	1035 kg
Gross weight	1425 kg

Vehicle dimensions

Length	3657 mm
Width	1627 mm
Width with unfolded mirrors	1893 mm
Height	1485 mm
Wheelbase	2300 mm
Front track	1409 mm
Rear track	1402 mm
Front overhang	776 mm
Rear overhang	581 mm

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Front suspension	Independent McPherson type, Anti-roll bar
Rear suspension	Anti-roll bar, Torsion beam
Front brakes	Ventilated disc
Front brake disc/drum diameter	284 mm
Front brake disc thickness	22 mm
Rear brakes	Disc
Rear brake disc/drum diameter	240 mm
Rear brake disc thickness	11 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	195/45 R16
Rim size	6.5J x 16

Basic version information

Brand	Abarth
Model	500
Version	500
Engine	1.4 T-Jet (140 KM) MTA
Engine type	Combustion engine
Number of doors	3
Start of production	2012 r.
End of production	2014 r.
Body type	Hatchback
Number of seats	4
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	205 km/h
Acceleration 0-100 km/h	8.1 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	8.5 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	5.3 l/100 km
Fuel consumption - Combined cycle	6.5 l/100 km
Emission standard	Euro 6
CO2 measurement standard	NEDC
CO2 emissions	150 g/km

Engine

Engine model / code	312A3000
Engine position	Front, Transverse
Engine displacement	1368 cm³
Fuel injection system	Multi-point injection
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	72 mm
Piston stroke	84 mm
Number of valves per cylinder	4
Engine oil capacity	2.9 l
Coolant capacity	5.2 l

Volume and weight

Fuel tank	35 l
Minimum trunk capacity	185 l
Maximum trunk capacity	610 l
Curb weight	1045 kg
Gross weight	1435 kg

Vehicle dimensions

Length	3657 mm
Width	1627 mm
Width with unfolded mirrors	1893 mm
Height	1485 mm
Wheelbase	2300 mm
Front track	1409 mm
Rear track	1402 mm
Front overhang	776 mm
Rear overhang	581 mm

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Type of automatic gearbox	MTA
Front suspension	Independent McPherson type, Anti-roll bar
Rear suspension	Anti-roll bar, Torsion beam
Front brakes	Ventilated disc
Front brake disc/drum diameter	284 mm
Front brake disc thickness	22 mm
Rear brakes	Disc
Rear brake disc/drum diameter	240 mm
Rear brake disc thickness	11 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	195/45 R16
Rim size	6.5J x 16
